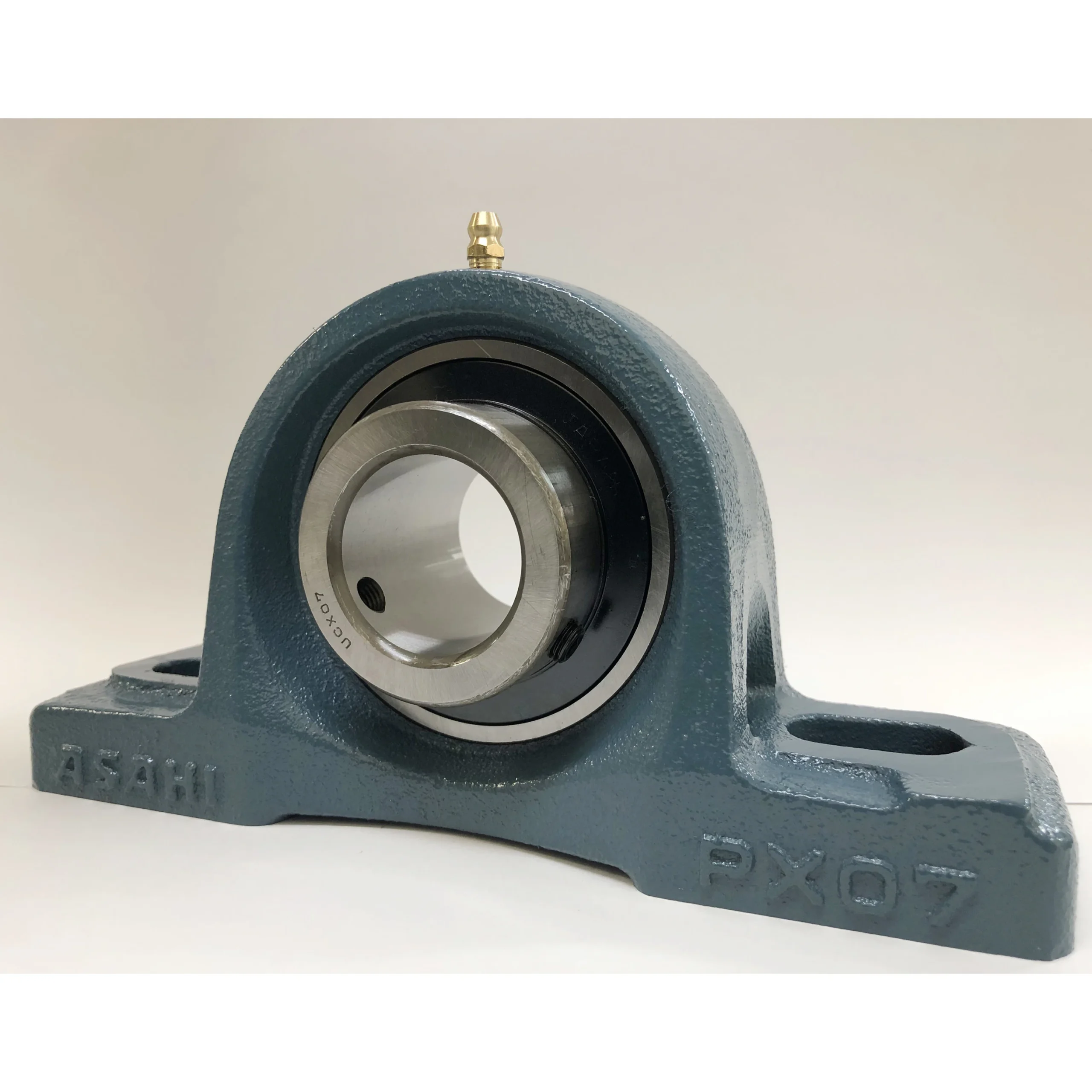

RS PRO Pillow Block Unit > UCPX07

Description

Dimension A(mm): 57;
Dimension b (mm): 49.2;
Dimension h (mm): 54;
Dimension H1(mm): 22;
Dimension H2(mm): 105;
Dimension J(mm): 144;
Dimension l (mm): 203;
Dimension N(mm): 17;
Dimension N1(mm): 30;
Dimension S(mm): 19;
Shaft diameter (mm):35;
Shape: Pillow Block Unit;
Bearing designation: UCX07;
Nominal size of the mounting bolt: M14;
Unit mass (kg): 2.7;
Bearing housing designation: PX07;
Basic dynamic load rating Cr (kN): 29.3;
Basic dynamic load rating Cor(kN): 17.9;
Compliant with RoHS Directive (corresponding to 10 substances)
