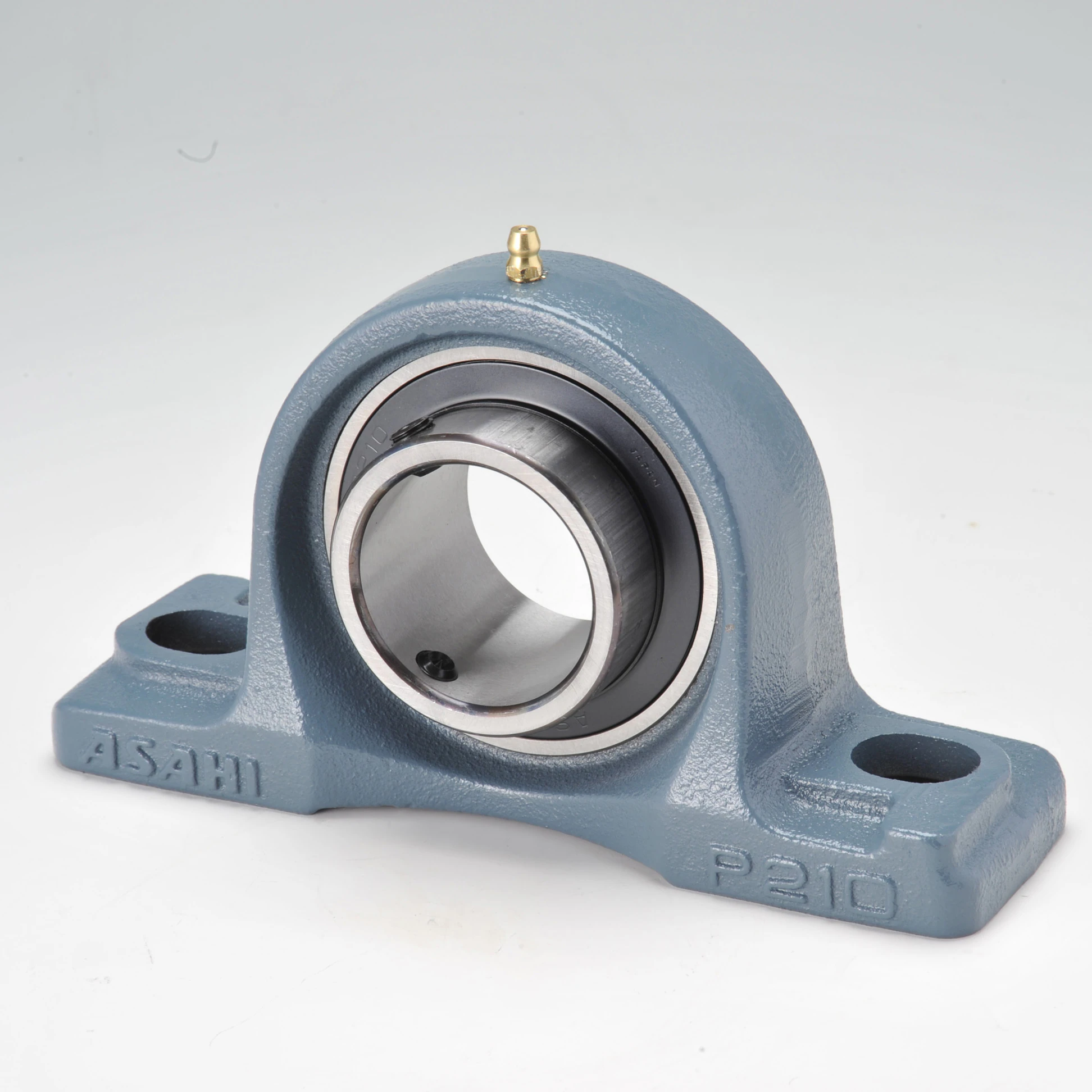

RS PRO Pillow Block Unit > UCP211

Description

Dimension A(mm): 60;
Dimension A4(mm): 91;
Dimension A5(mm): 100;
Dimension A6(mm): 11;
Dimension A7(mm): 10;
Dimension b (mm): 55.6;
Dimension h (mm): 63.5;
Dimension H1(mm): 22;
Dimension H2(mm): 126;
Dimension H5(mm): 133;
Dimension J(mm): 171;
Dimension l (mm): 219;
Dimension N(mm): 20;
Dimension N1(mm): 25;
Dimension S(mm): 22.2;
Shaft diameter (mm):55;
Shape: Pillow Block Unit;
Material: High carbon chromium bearing steel;
Grease nipple: With grease nipple;
Load type: For light loads;
Without cover;
Bore type: Cylindrical bore with set screw ;
Mass (kg): 3.3;
Basic static load rating (kN): 29.4;
Basic dynamic load rating (kN): 43;
Nominal size of the mounting bolt: M16
Compliant with RoHS Directive (corresponding to 10 substances)
