Description
Dimension A(mm): 60;
Dimension b (mm): 51.6;
Dimension h (mm): 57.2;
Dimension H1(mm): 22;
Dimension H2(mm): 114;
Dimension J(mm): 159;
Dimension l (mm): 206;
Dimension N(mm): 20;
Dimension N1(mm): 25;
Dimension S(mm): 19;
Shaft diameter (mm):50;

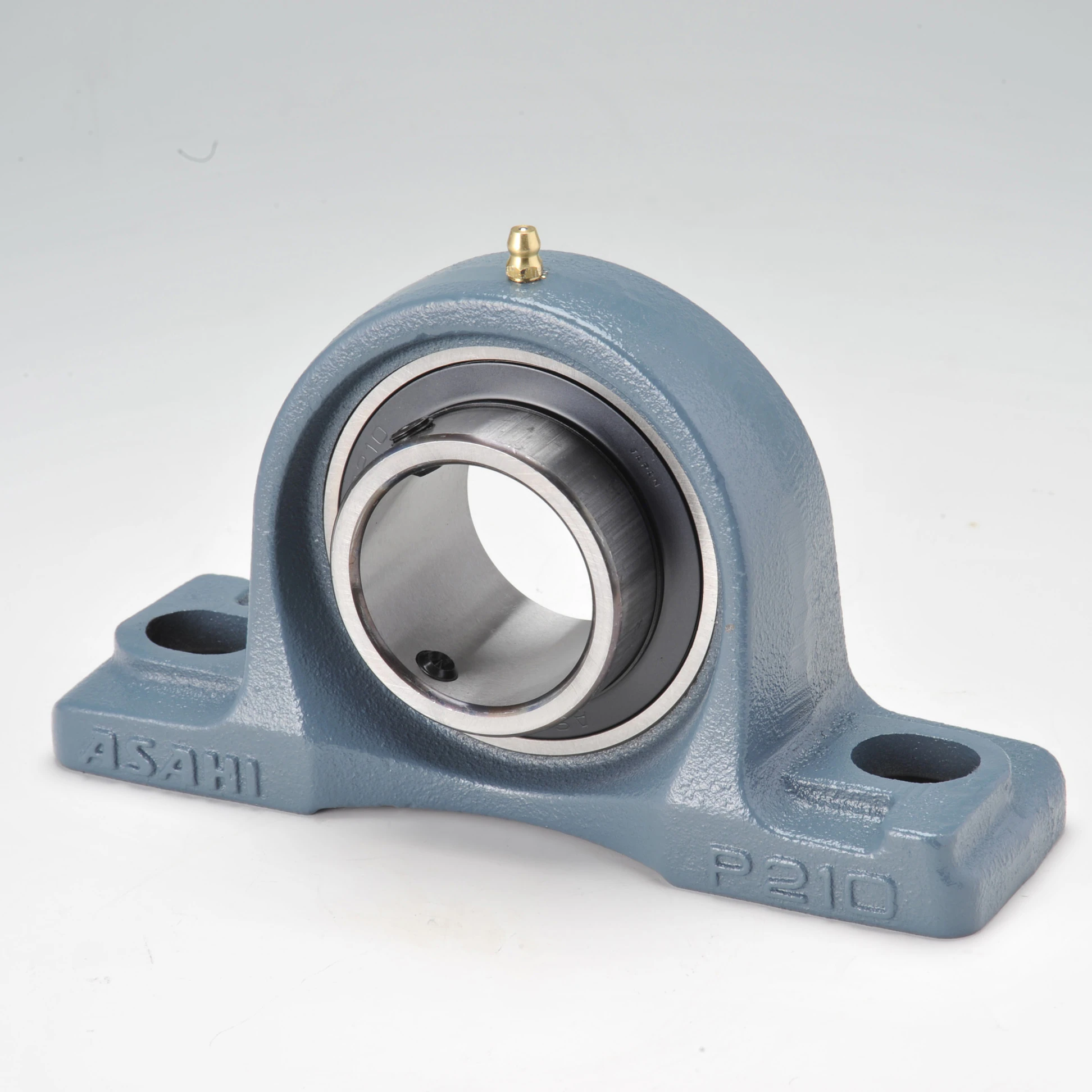

Shape: Pillow Block Unit;
Material: High carbon chromium bearing steel;
Grease nipple: With grease nipple;
Load type: For light loads;
Without cover;
Bore type: Cylindrical bore with set screw ;
Mass (kg): 2.59;
Basic static load rating (kN): 23.2;
Basic dynamic load rating (kN): 35.5;
Nominal size of the mounting bolt: M16
Bearing Designation: UC210;
Bearing housing designation: P210;
Compliant with RoHS Directive (corresponding to 10 substances)
