Description
Dimension A(mm): 38;
Dimension b (mm): 34.1;
Dimension h (mm): 36.5;
Dimension H1(mm): 16;
Dimension H2(mm): 70;
Dimension J(mm): 105;
Dimension l (mm): 140;
Dimension N(mm): 13;
Dimension N1(mm): 16;
Dimension S(mm): 14.3;
Shaft diameter (mm):25;

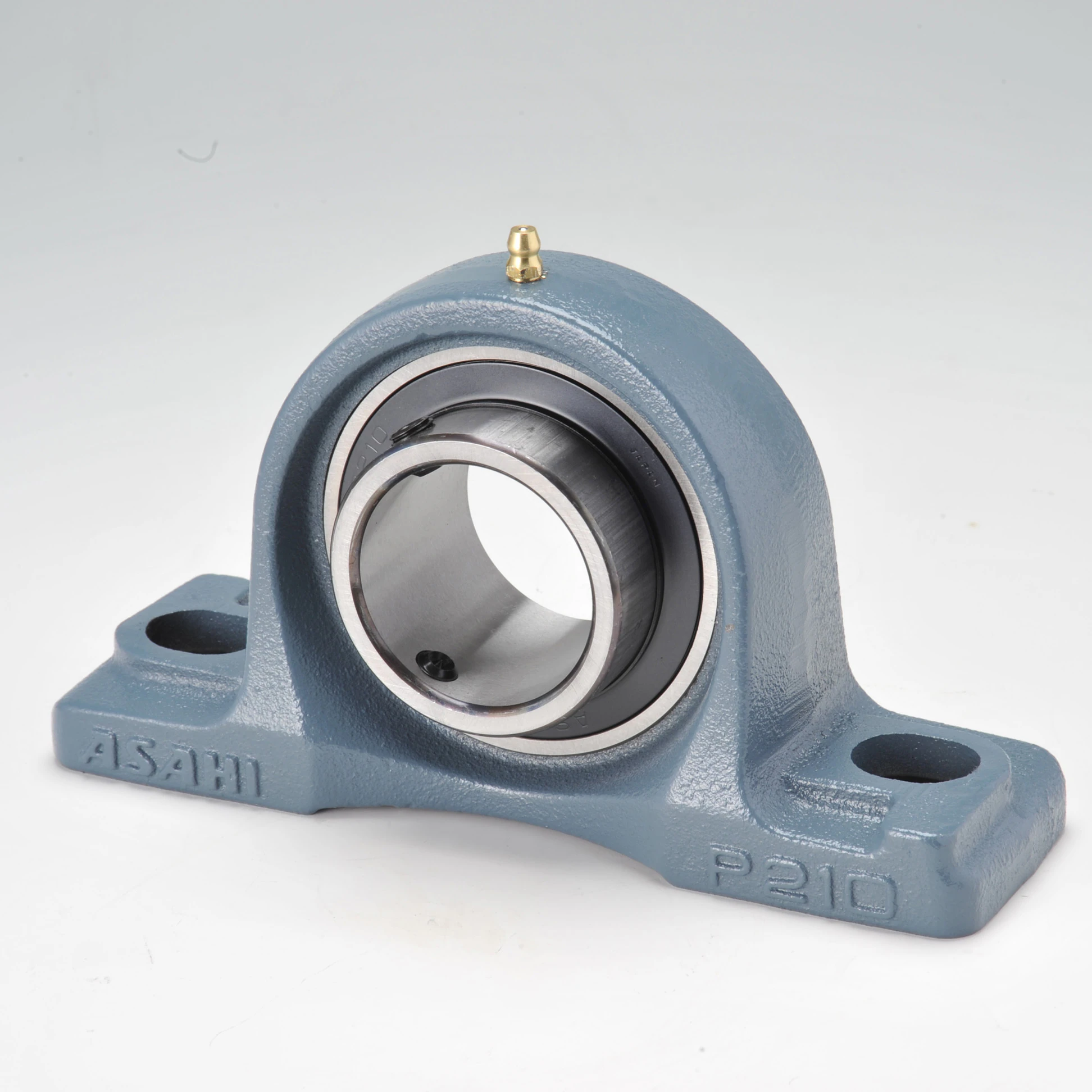

Shape: Pillow Block Unit;
Material: High carbon chromium bearing steel;
Grease nipple: With grease nipple;
Load type: For light loads;
Without cover;
Bore type: Cylindrical bore with set screw ;
Mass (kg): 0.79;
Basic static load rating (kN): 7.9;
Basic dynamic load rating (kN): 14;
Nominal size of the mounting bolt: M10
Bearing Designation: UC205;
Bearing housing designation: P205;
Compliant with RoHS Directive (corresponding to 10 substances)
