Description

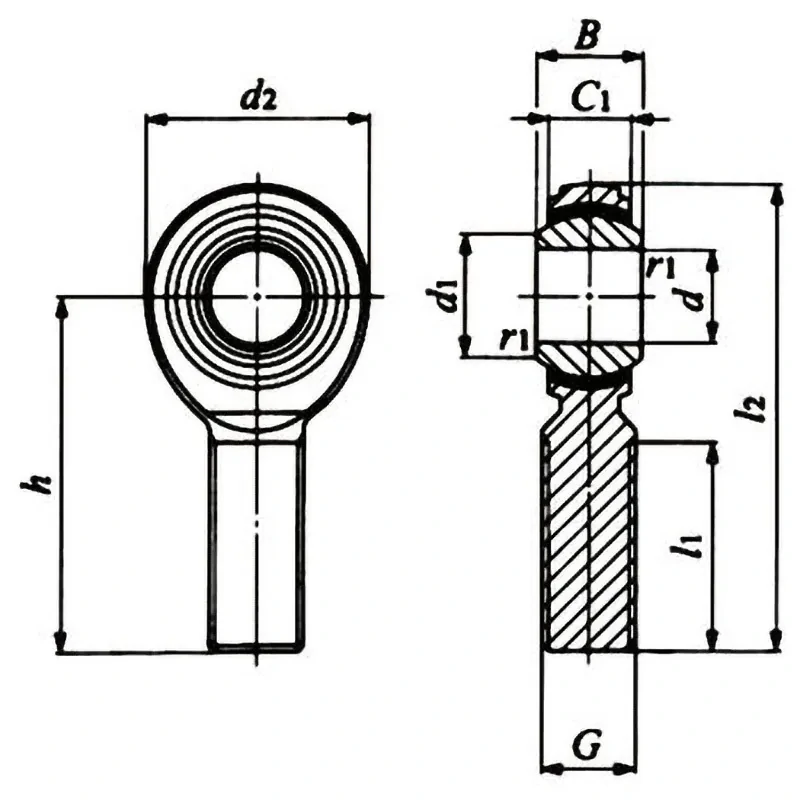

Dimensions B (mm): 7
Dimensions C1 (mm): 5.3
Dimensions G (mm): M4*0.7
Dimensions d (mm): 4
Dimensions d1 (mm): 6.5
Dimensions d2 (mm): 14
Dimensions h (mm): 30
Dimensions l1 (mm): 17
Dimensions l2 (mm): 37
Corner Radius r1 (mm): 0.2
Specification 1N is about equal to 0.102kgf
Material: Chrome Plated (Spherical Inner Ring)
Material (Body): Zinc Chromate
Weight (g): 8.1
Type: With Male Thread
Material (Bush): Special Copper Alloy
Thread Direction: Right Thread Type
Lubrication Type: Lubrication-Free，Type
Dynamic Load Capacity (N): 4950
Static Load Capacity (N): 2060
Ball Diameter (mm): 9.525

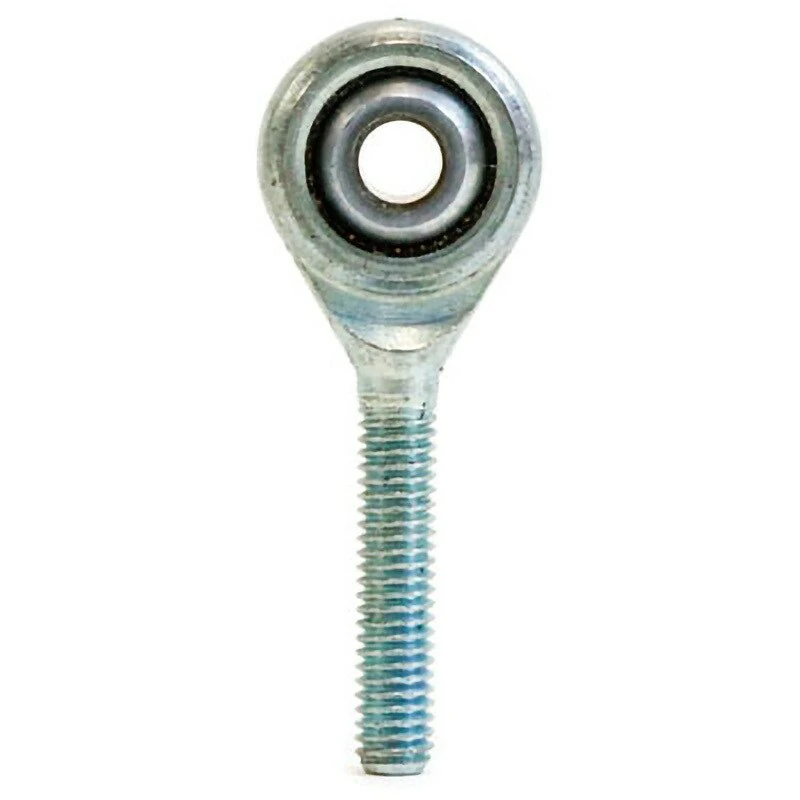

This is a self-aligning spherical sliding bearing that can simultaneously bear large radial loads and bi-directional axial loads in a small capacity.
The pillow ball Rod End， is easy to install as it has male or female threads machined into the body.
It is used in control mechanisms and link mechanisms in machine tools， textile machinery， and packaging machinery.
