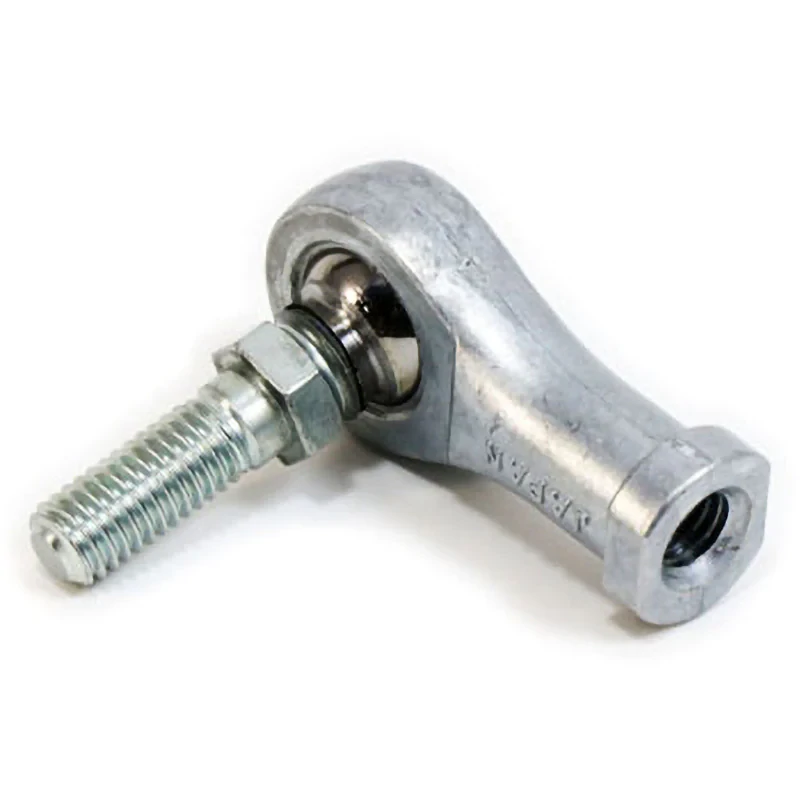

NTN， Elbow LHS (Right Thread) LHS8

Description

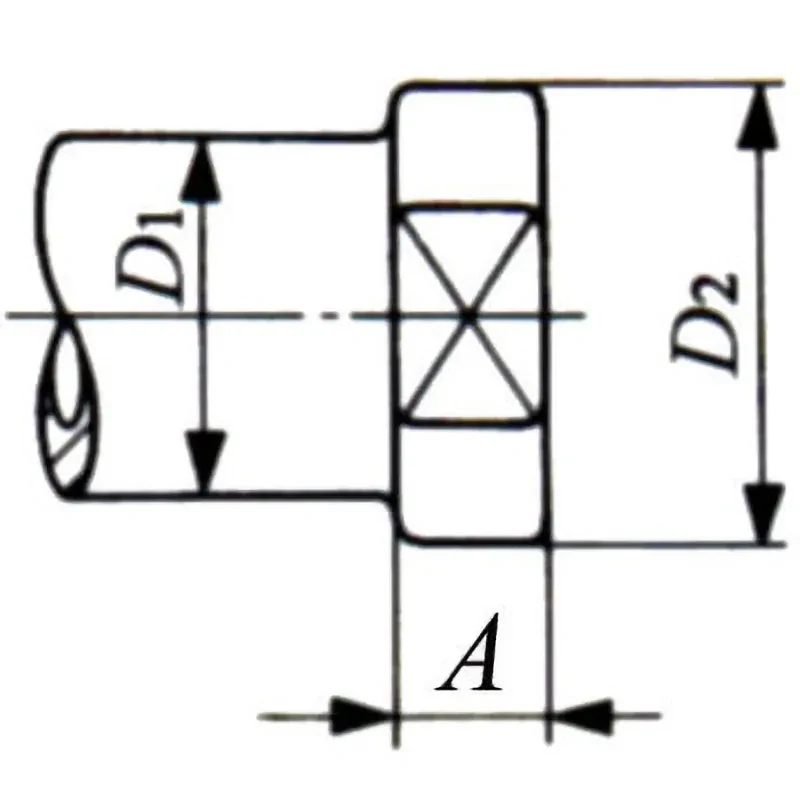

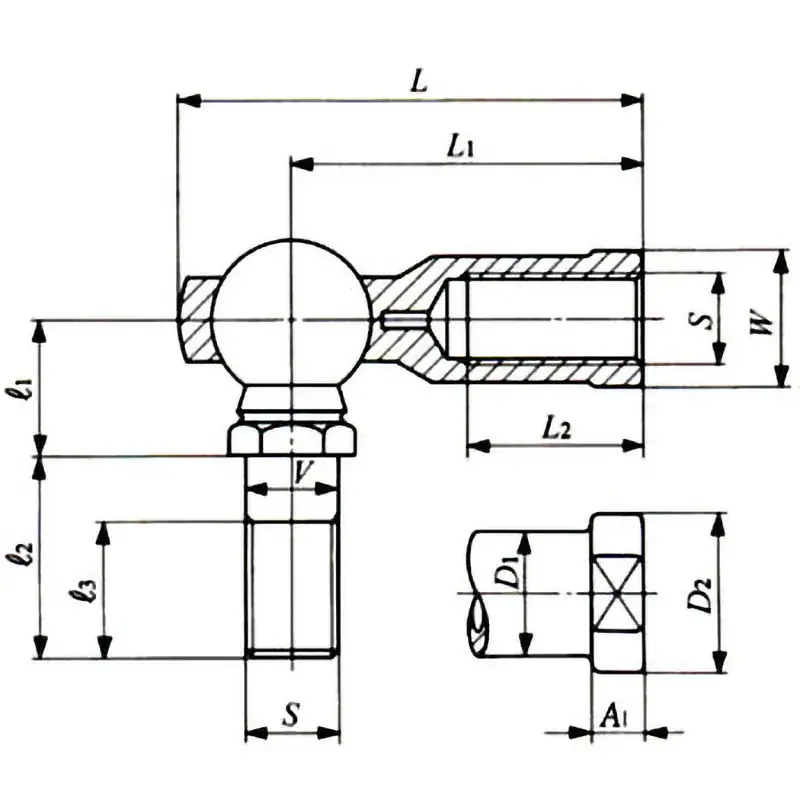

Dimension A (mm): 5
Dimension D (mm): 24
Dimension D1 (mm): 12.5
Dimension D2 (mm): 16
Dimension L (mm): 48
Dimension L1 (mm): 36
Dimension L2 (mm): 19
Dimension P (mm): 11
Dimension V (mm): 8
Dimension W (mm): 14
Dimension l (mm): 44
Dimension l1 (mm): 14.5
Dimension l2 (mm): 21.5
Dimension l3 (mm): 15
Specification 1N is about equal to 0.102Kgf
Weight (g): 60
Note: Grease is not included. Please use appropriate lubrication.
Thread Direction: Right Thread
Thread S (M): M8*1.25
Static Load Capacity (N): 4900
Ball Diameter (mm): 15.875

This is an automatic self-aligning spherical sliding bearing that integrates the body made of special zinc die-cast alloy with a ball stud having an intersecting axis.

Due to the constant gap on the sliding surface， it can perform rotational and tilting motions with low torque， enabling smooth power transmission.

It is used in link mechanisms of automobiles， construction machinery， agricultural machinery， and packaging machinery.
