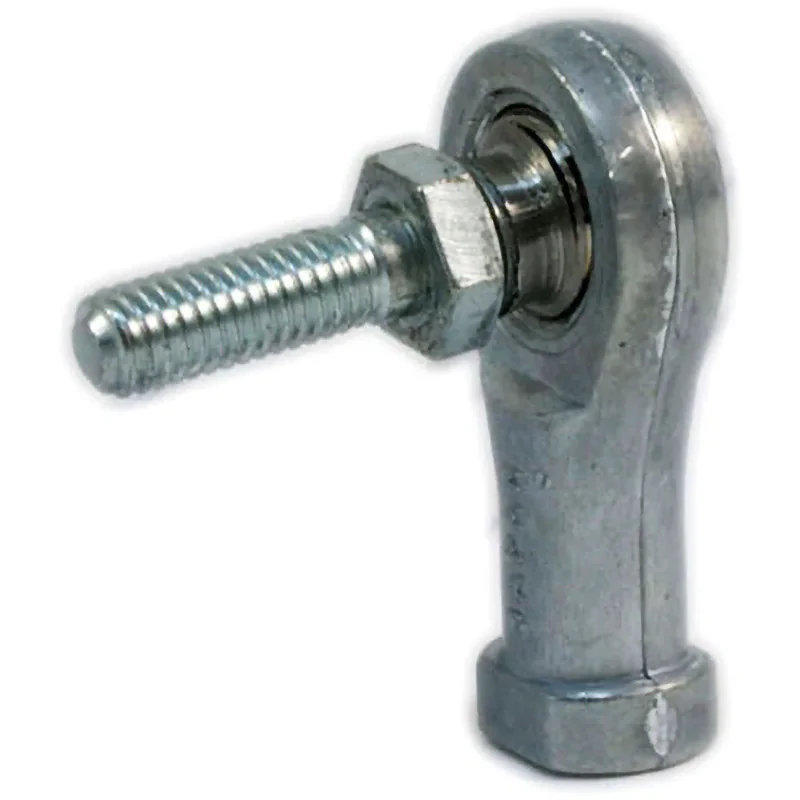

NTN， Elbow LHS (Right Thread) LHS6

Description

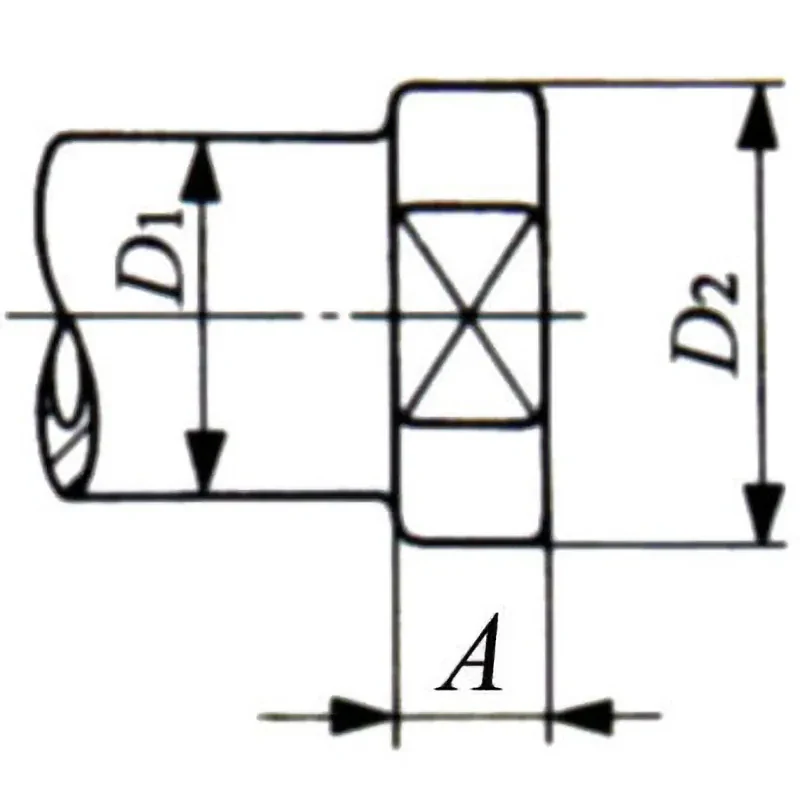

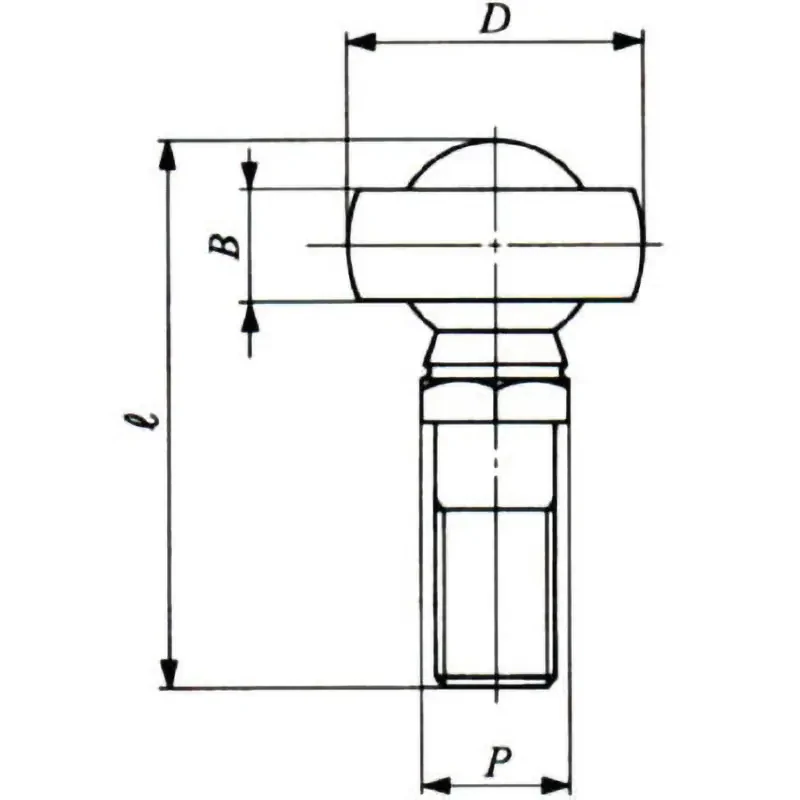

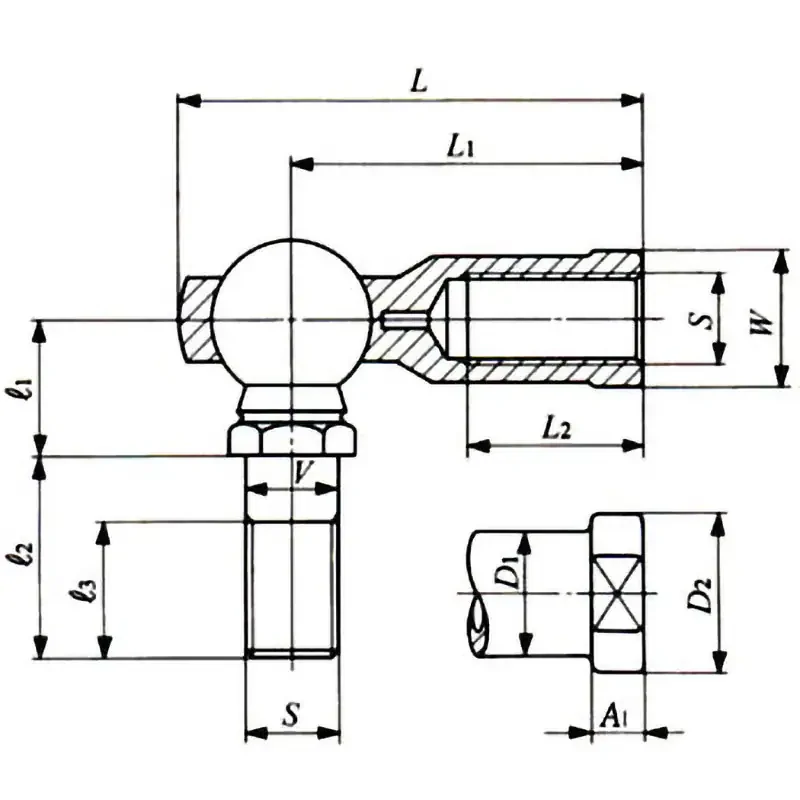

Dimensions A (mm): 5
Dimensions D (mm): 19.5
Dimensions D1 (mm): 10
Dimensions D2 (mm): 13
Dimensions L (mm): 39.7
Dimensions L1 (mm): 30
Dimensions L2 (mm): 16
Dimensions P (mm): 10
Dimensions V (mm): 6
Dimensions W (mm): 11
Dimensions l (mm): 36.5
Dimensions l1 (mm): 11.5
Dimensions l2 (mm): 18.5
Dimensions l3 (mm): 14
Specification 1N is about equal to 0.102Kgf
Weight (g): 32
Note: Grease is not included. Please use proper lubrication.
Thread Direction: Right Thread
Thread S (M): M6*1
Static Load Capacity (N): 3290
Ball Diameter (mm): 12.7

This is a self-aligning spherical sliding bearing that integrates a body made of special zinc die-cast alloy and a ball stud with a crossed shaft center.

The consistent gap on the sliding surface allows for rotation and tilting movements with low torque， enabling smooth power transmission.

It is used in link mechanisms for automobiles， construction machinery， agricultural machinery， and packaging machinery.
