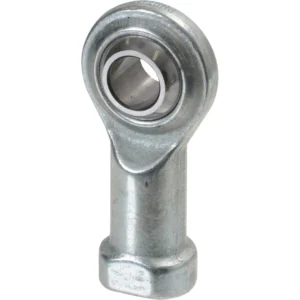

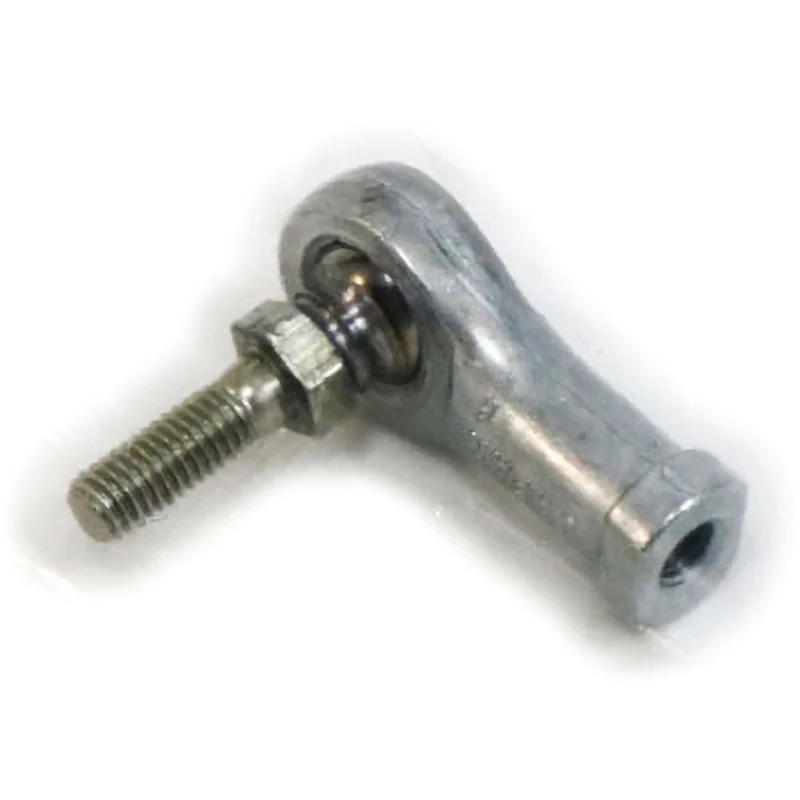

NTN， Elbow LHS (Right Thread) LHS5

Description

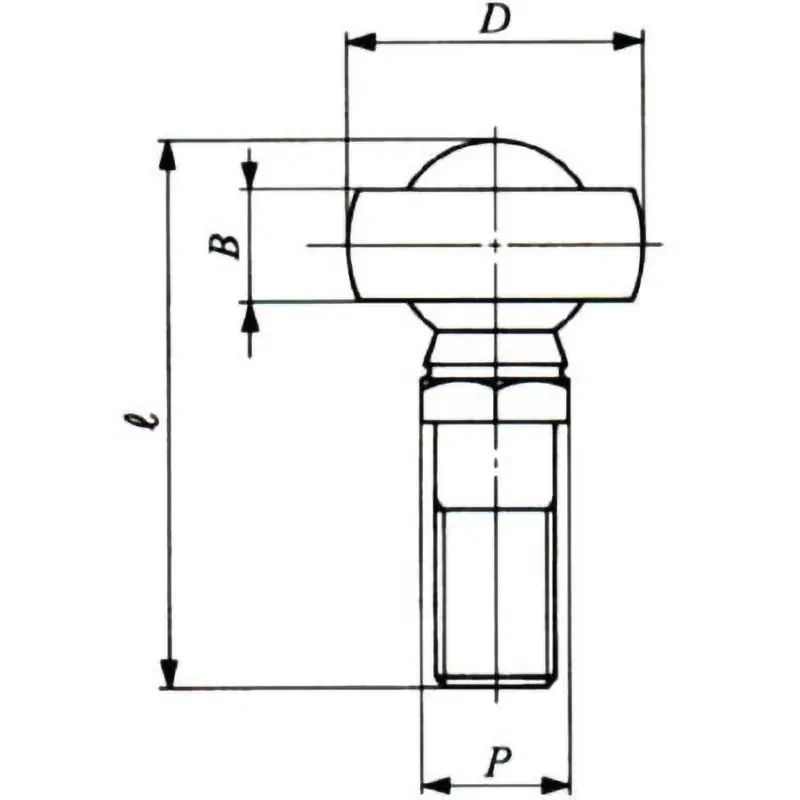

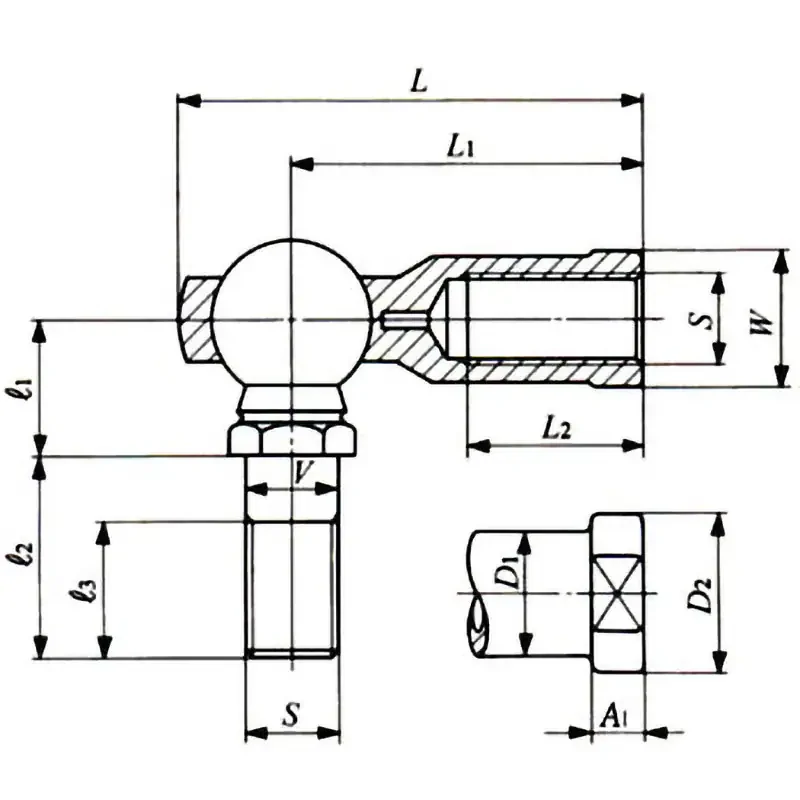

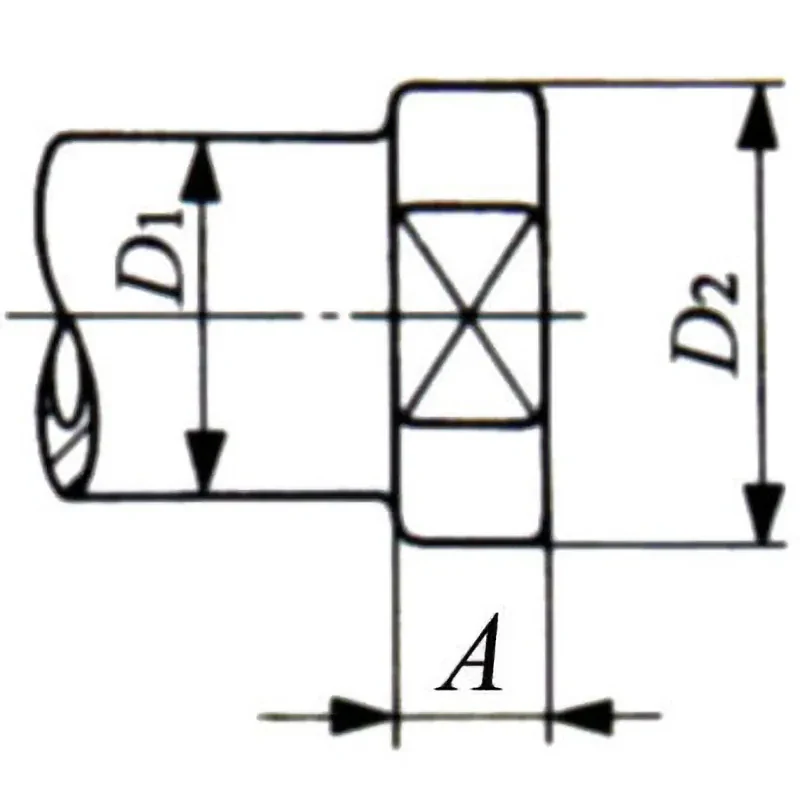

Dimension A (mm): 4
Dimension D (mm): 17
Dimension D1 (mm): 9
Dimension D2 (mm): 11
Dimension L (mm): 35.5
Dimension L1 (mm): 27
Dimension L2 (mm): 16
Dimension P (mm): 8
Dimension V (mm): 5
Dimension W (mm): 9
Dimension l (mm): 30.5
Dimension l1 (mm): 10
Dimension l2 (mm): 15
Dimension l3 (mm): 11
Specification: 1 N is approximately equal to 0.102 Kgf
Mass (g): 22
Note: Grease is not included. Please use appropriate lubrication.
Thread direction: Right thread
Thread size (S): M5*0.8
Static load capacity (N): 2080
Ball diameter (mm): 11.112

This is a self-aligning spherical plain bearing integrating a body made of special zinc die-cast alloy and a ball stud with an intersecting shaft axis.

Due to the consistent clearance on the sliding surface， it can perform rotational and tilting movements with low torque， enabling smooth transmission of force.

It is used in link mechanisms of automobiles， construction machinery， agricultural machinery， and packaging machinery.
