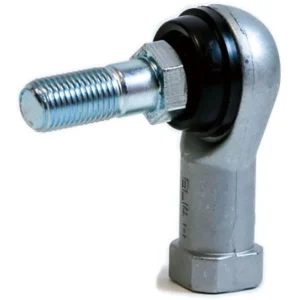

NTN， Elbow LHS (Right Thread) LHS22

Description

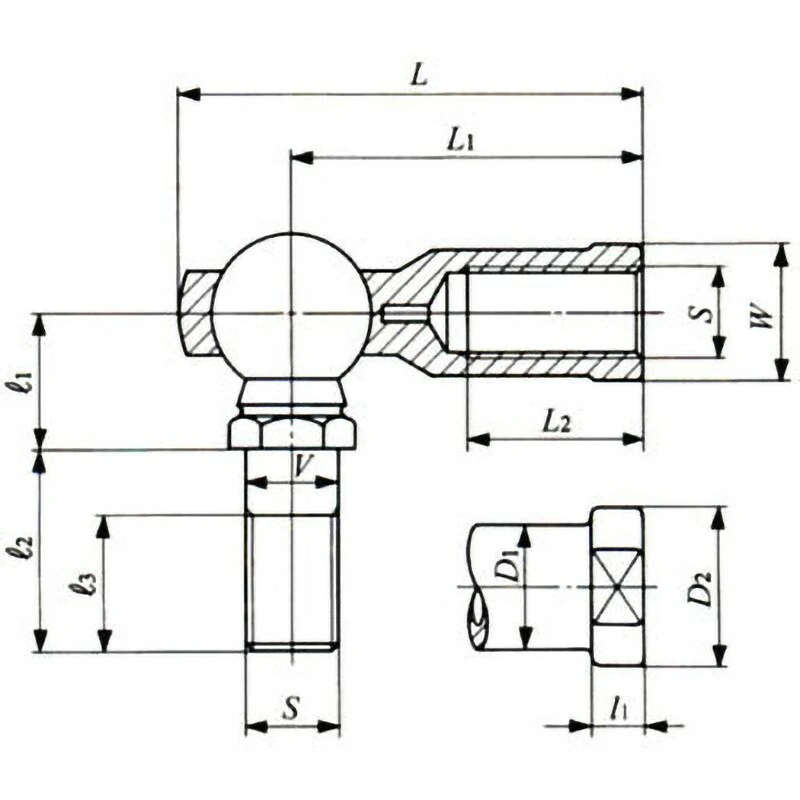

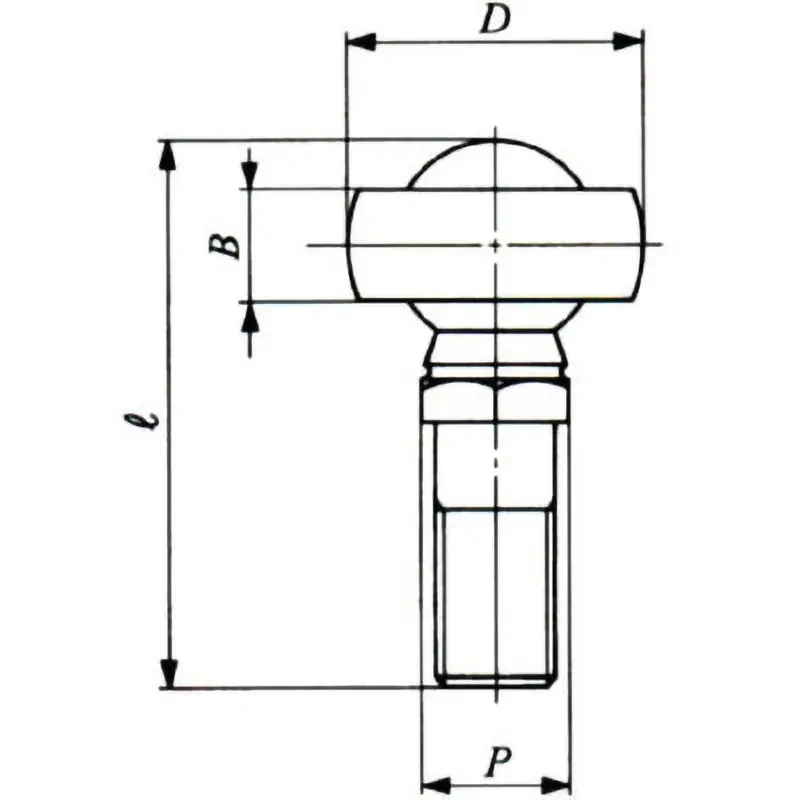

Dimension A (mm): 12
Dimension D (mm): 54

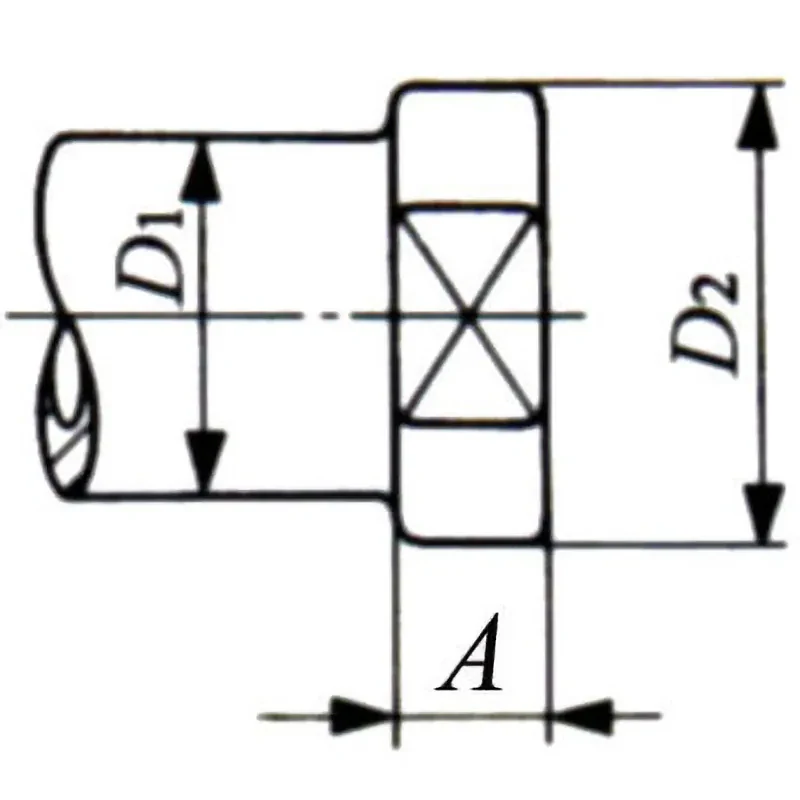

Dimension D1 (mm): 30
Dimension D2 (mm): 37
Dimension L (mm): 111
Dimension L1 (mm): 84
Dimension L2 (mm): 47
Dimension P (mm): 27
Dimension V (mm): 22
Dimension W (mm): 32
Dimension l (mm): 99
Dimension l1 (mm): 32.5
Dimension l2 (mm): 47.5
Dimension l3 (mm): 30
Specification 1N is about equal to 0.102Kgf
Mass (g): 765
Note: Grease is not enclosed. Please use appropriate lubrication.
Thread direction: Right thread
S (thread) M22*1.5
Static load capacity (N): 39800
Ball diameter (mm): 38.1

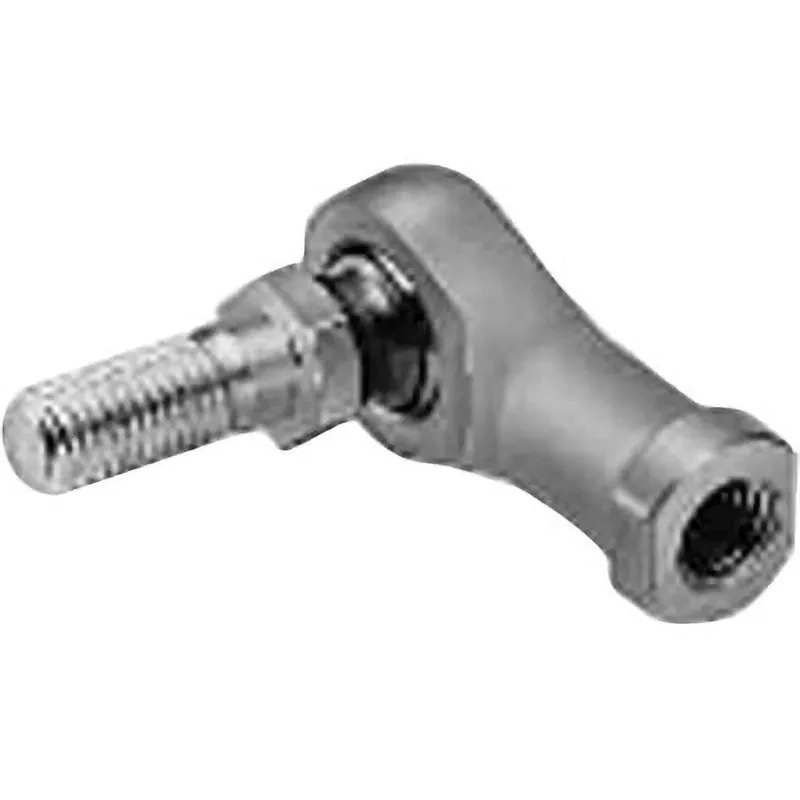

This is an automatic self-aligning spherical sliding bearing， which integrates the body made of a special zinc die-cast alloy with a ball stud that has a crossed axis.

Due to the consistent gap on the sliding surface， it can perform rotational and tilting motions with low torque， allowing for smooth power transmission.

It is used in link mechanisms of automobiles， construction machinery， agricultural machinery， and packaging machinery.
