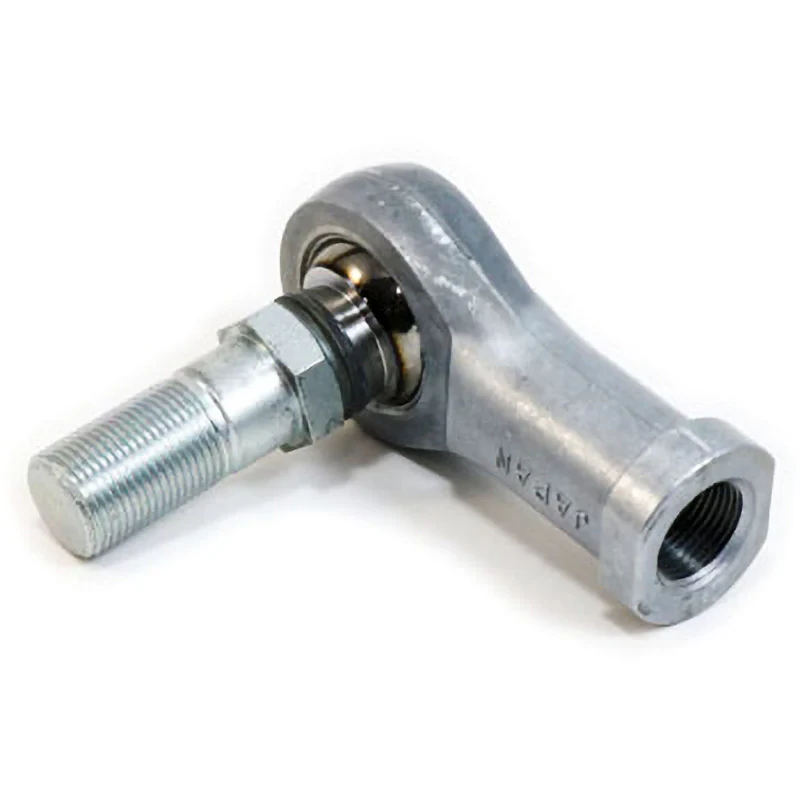

NTN， Elbow LHS (Right Thread) LHS20

Description

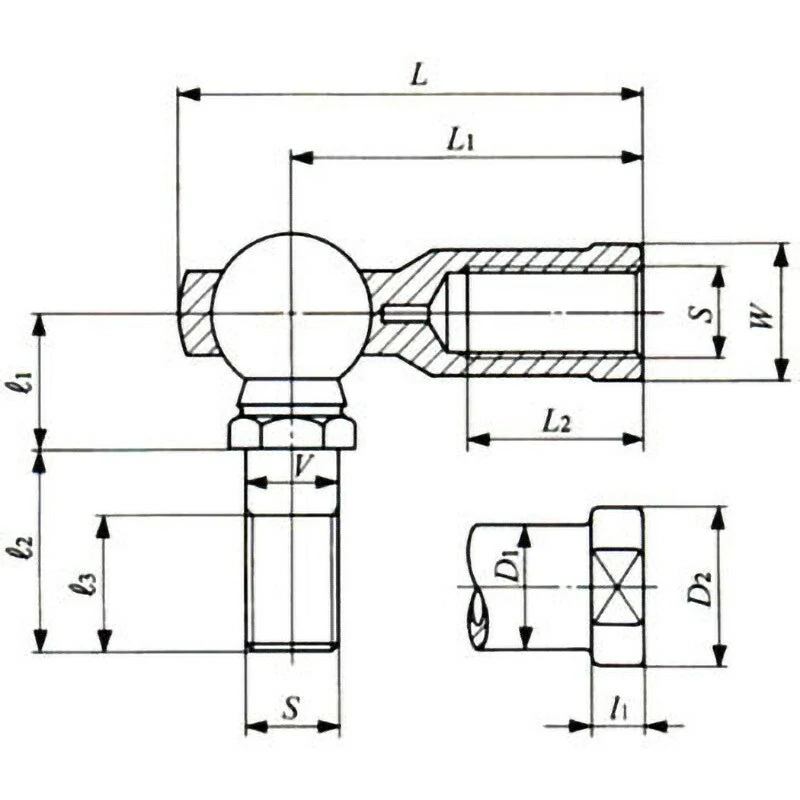

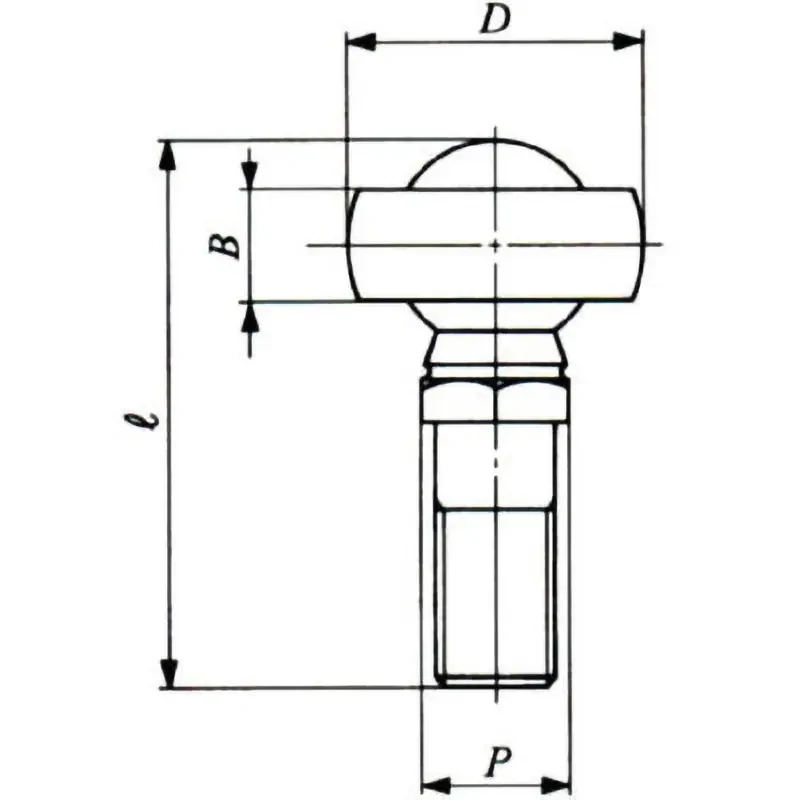

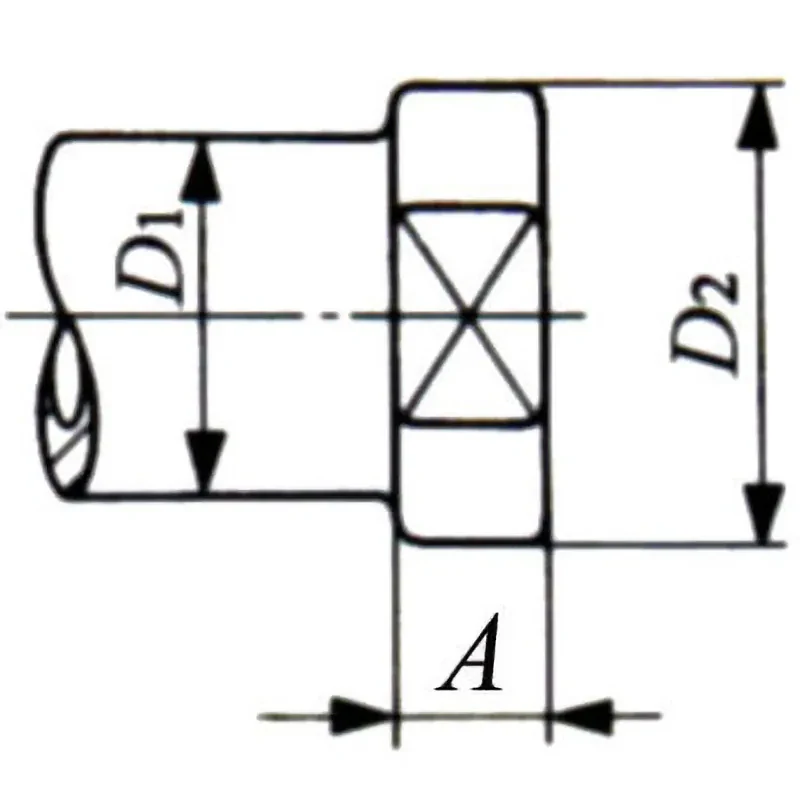

Dimension A (mm): 10
Dimension D (mm): 49
Dimension D1 (mm): 27.5
Dimension D2 (mm): 34
Dimension L (mm): 101.5
Dimension L1 (mm): 77
Dimension L2 (mm): 43
Dimension P (mm): 24
Dimension V (mm): 20
Dimension W (mm): 30
Dimension l (mm): 90.5
Dimension l1 (mm): 30
Dimension l2 (mm): 43
Dimension l3 (mm): 27
1N is approximately equal to 0.102Kgf
Weight (g): 580
Note: Grease is not included. Please use appropriate lubrication.
Thread Direction: Right Thread
S (Thread) M20*1.5
Static Load Capacity (N): 31600
Ball Diameter (mm): 34.925

This is an automatically self-aligning spherical sliding bearing that integrates a body made of special zinc die-cast alloy and a ball stud with a crossed axis.

Due to the constant gap on the sliding surface， it allows for rotational and tilting movements with low torque， enabling smooth force transmission.

It is used in link mechanisms for automobiles， construction machinery， agricultural machinery， and packaging machinery.
