NTN， Elbow LHS (Right Thread) LHS16

Description

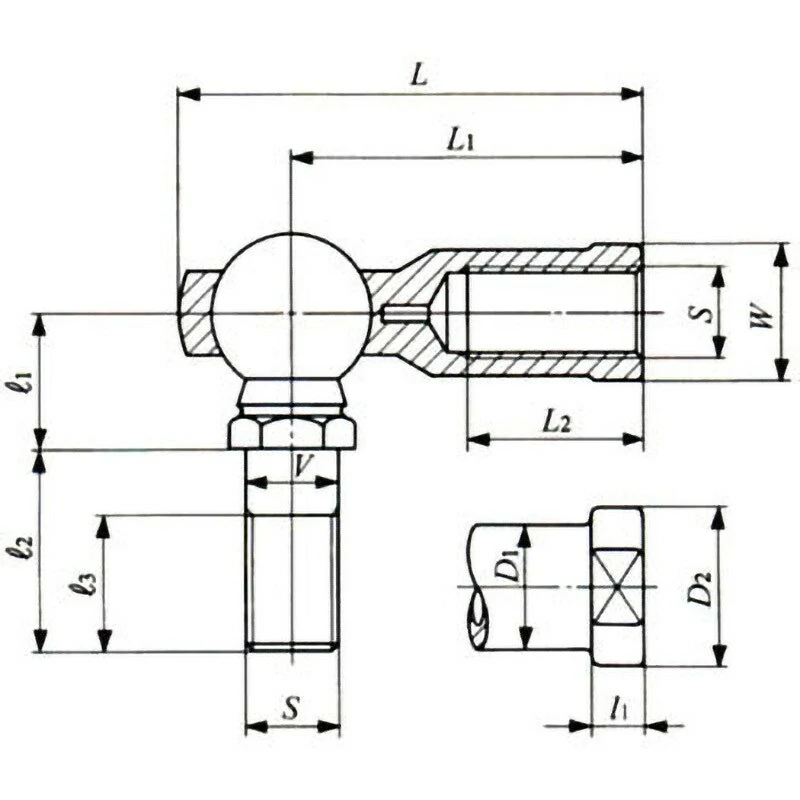

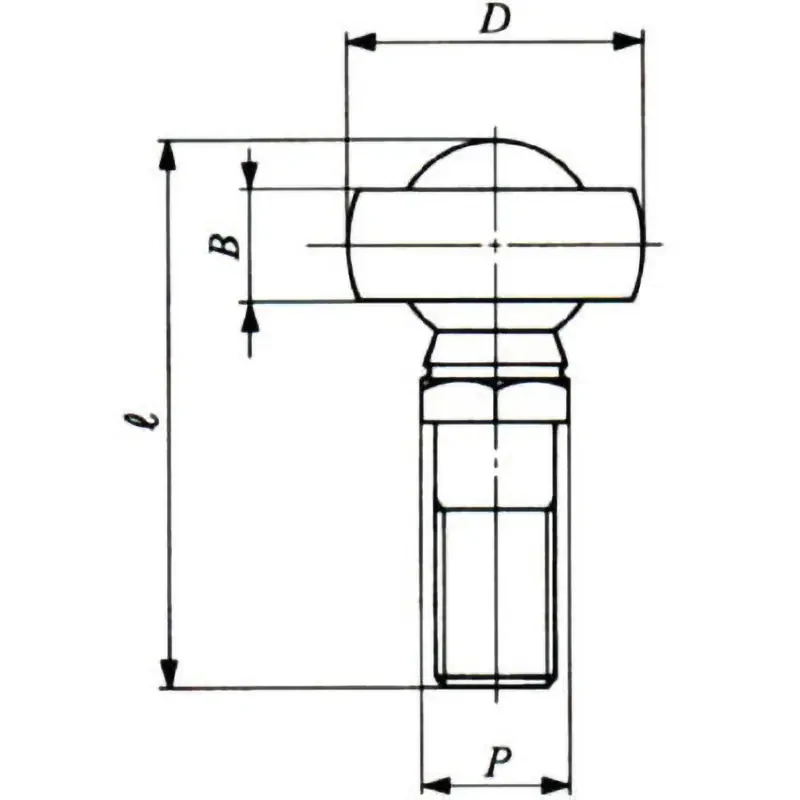

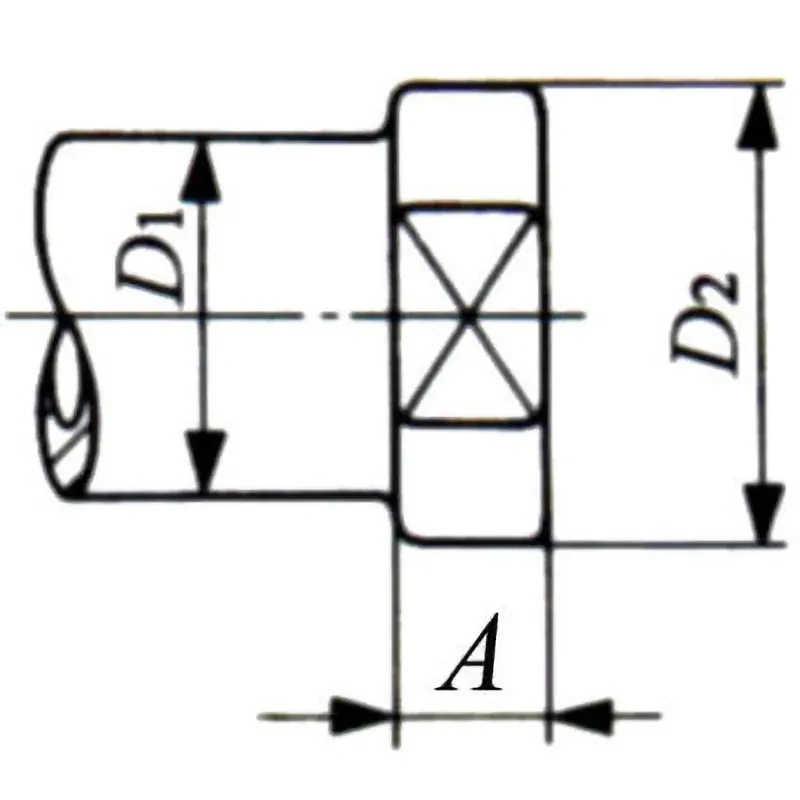

Dimension A (mm): 8
Dimension D (mm): 40
Dimension D1 (mm): 22
Dimension D2 (mm): 27
Dimension L (mm): 84
Dimension L1 (mm): 64
Dimension L2 (mm): 36
Dimension P (mm): 19
Dimension V (mm): 16
Dimension W (mm): 22
Dimension l (mm): 74
Dimension l1 (mm): 24.5
Dimension l2 (mm): 35.5
Dimension l3 (mm): 23
Specification 1N is about equal to 0.102Kgf
Weight (g): 300
Note: Grease is not included. Please use appropriate lubrication.
Thread direction: Right thread
S (thread) M16*2
Static load capacity (N): 19500
Ball diameter (mm): 28.575

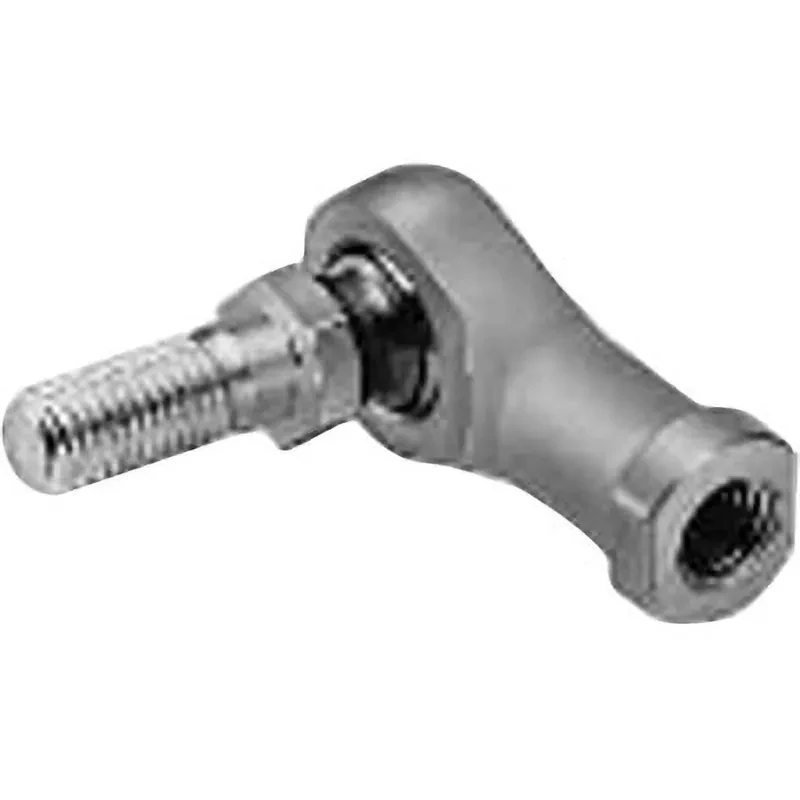

This is an automatic self-aligning spherical sliding bearing that integrates a body made of special zinc die-cast alloy with a ball stud that has an intersecting axis.

The constant clearance of the sliding surface allows for rotational and tilting motion with low torque， enabling smooth power transmission.

It is used in link mechanisms for automobiles， construction machinery， agricultural machinery， and packaging machines.
