Description

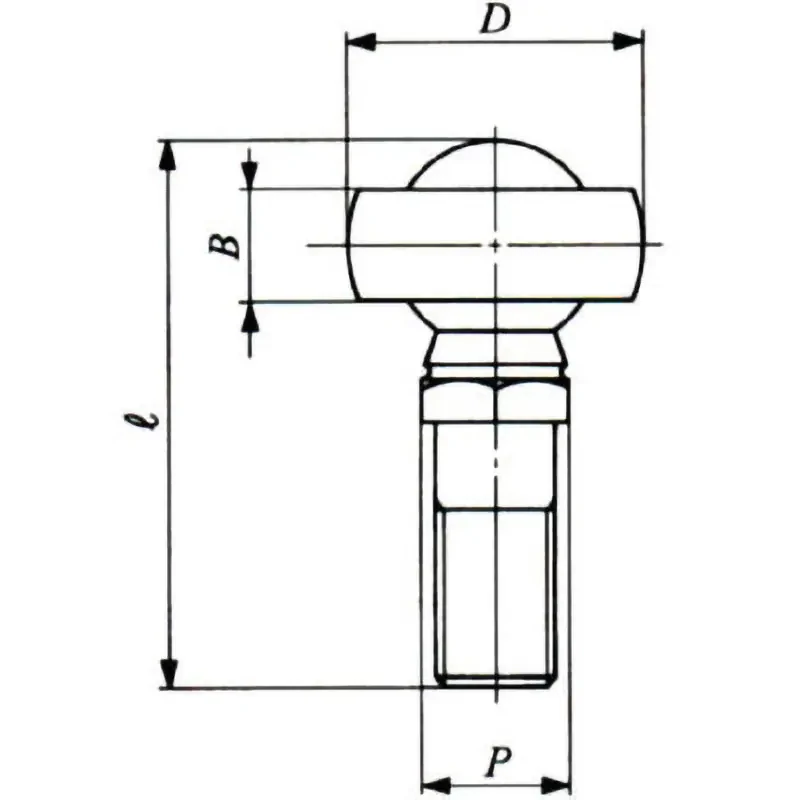

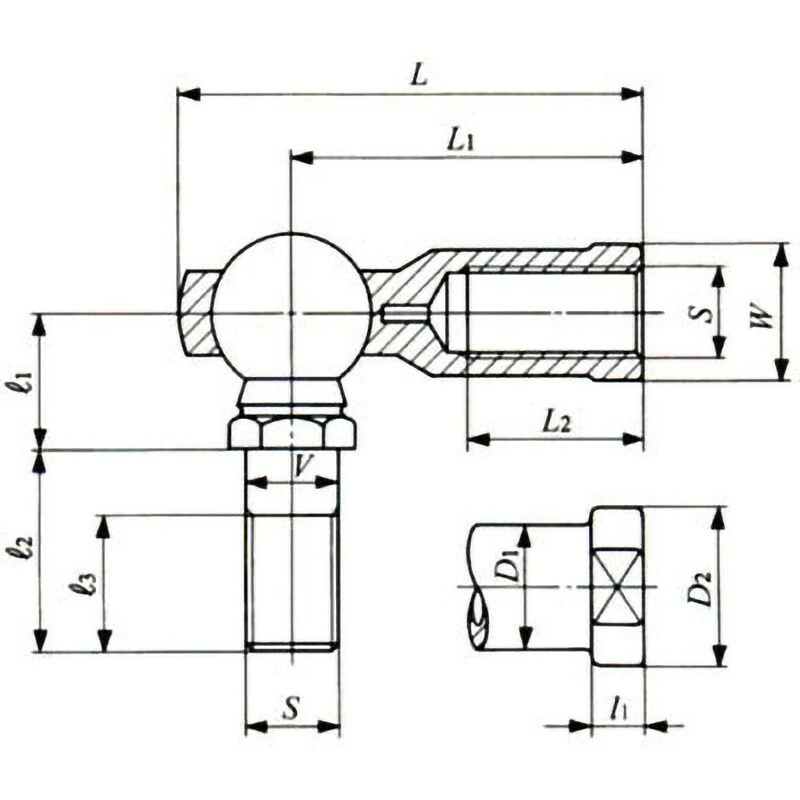

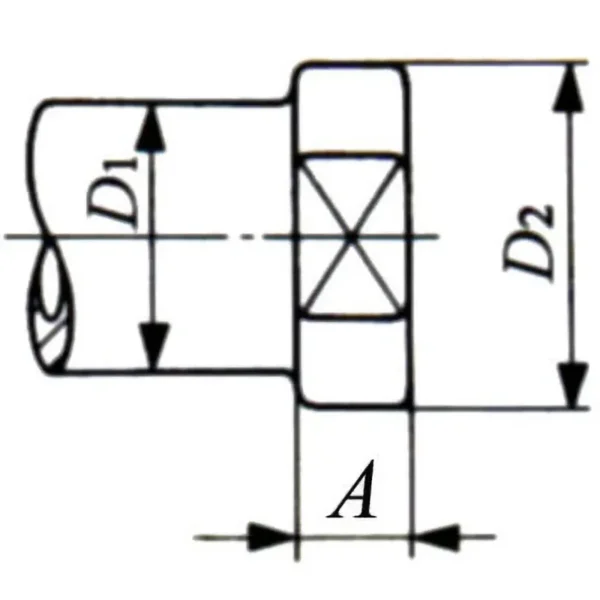

Dimensions A (mm): 8
Dimensions D (mm): 36
Dimensions D1 (mm): 20
Dimensions D2 (mm): 25
Dimensions L (mm): 75
Dimensions L1 (mm): 57
Dimensions L2 (mm): 30
Dimensions P (mm): 17
Dimensions V (mm): 14
Dimensions W (mm): 22
Dimensions l (mm): 69
Dimensions l1 (mm): 22.5
Dimensions l2 (mm): 33.5
Dimensions l3 (mm): 22
Specification 1N is about equal to 0.102Kgf
Mass (g): 227
Remarks: Grease is not included. Please use appropriate lubrication.
Thread Direction: Right thread
S (Thread) M14*2
Static Load Capacity (N): 14600
Ball Diameter (mm): 25.4

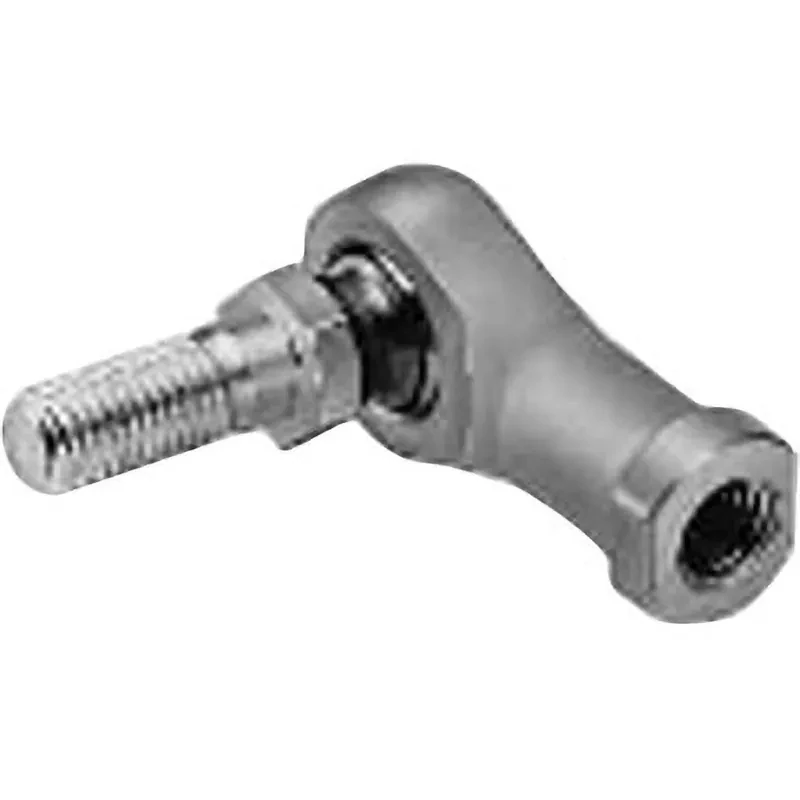

This is an automatic self-aligning spherical sliding bearing that integrates the body made of a special zinc die-cast alloy with a ball stud that has a crossed axis.
Due to the constant gap on the sliding surface， it can perform rotational and tilting movements with low torque， allowing for smooth power transmission.
It is used in link mechanisms of automobiles， construction machinery， agricultural machinery， and packaging machinery.
