Description

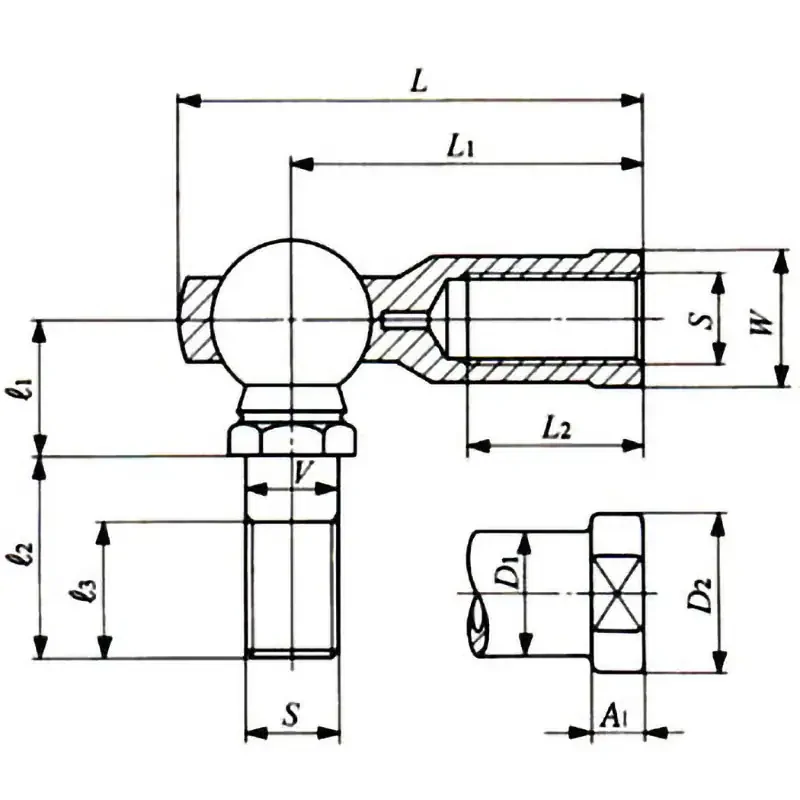

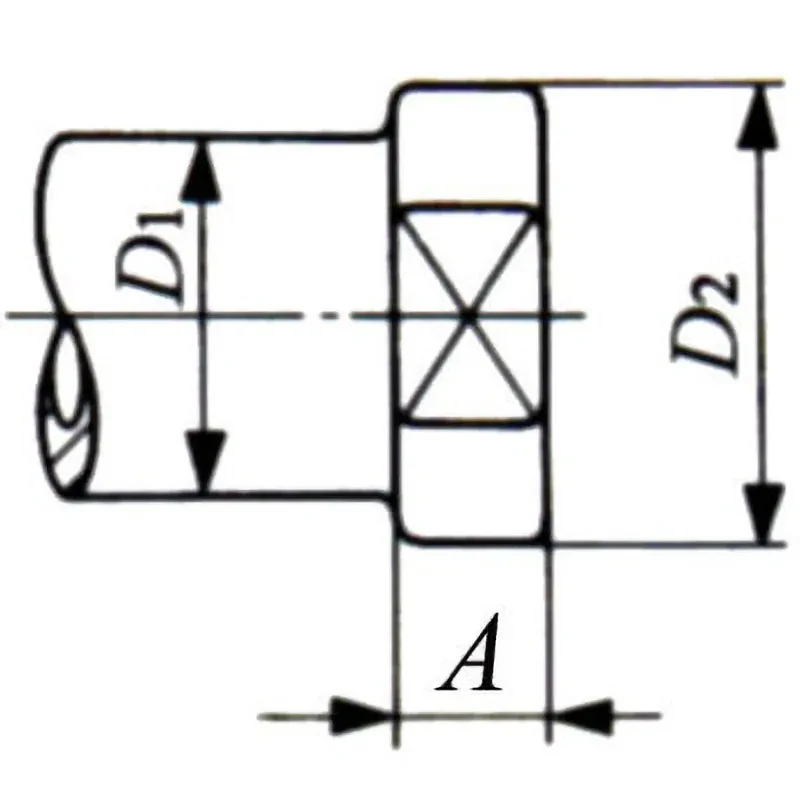

Dimensions A(mm): 6.5
Dimensions D(mm): 32
Dimensions D1(mm): 17.5
Dimensions D2(mm): 22
Dimensions L(mm): 66
Dimensions L1(mm): 50
Dimensions L2(mm): 27
Dimensions P(mm): 17
Dimensions V(mm): 12
Dimensions W(mm): 19
Dimensions l(mm): 61
Dimensions l1(mm): 20
Dimensions l2(mm): 30
Dimensions l3(mm): 20
Specification 1N is about equal to 0.102Kgf
Weight (g): 160
Note: Grease is not included. Please use appropriate lubrication.
Thread direction: Right thread
S (Thread) M12*1.75
Static load capacity (N): 12400
Ball diameter (mm): 22.225

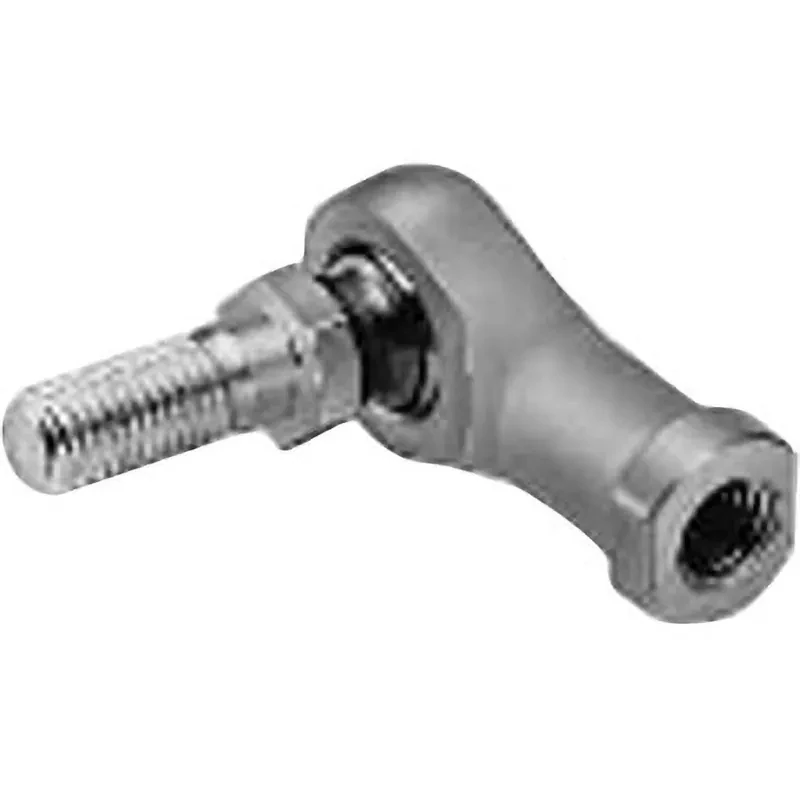

This is an automatic self-aligning spherical sliding bearing that integrates the body made of a special zinc die-cast alloy with a ball stud that has a crossed axis.
Thanks to the constant gap of the sliding surface， it can perform rotational and tilting movements with low torque， allowing for smooth power transmission.
It is used in link mechanisms for automobiles， construction machinery， agricultural machinery， and packaging machinery.
