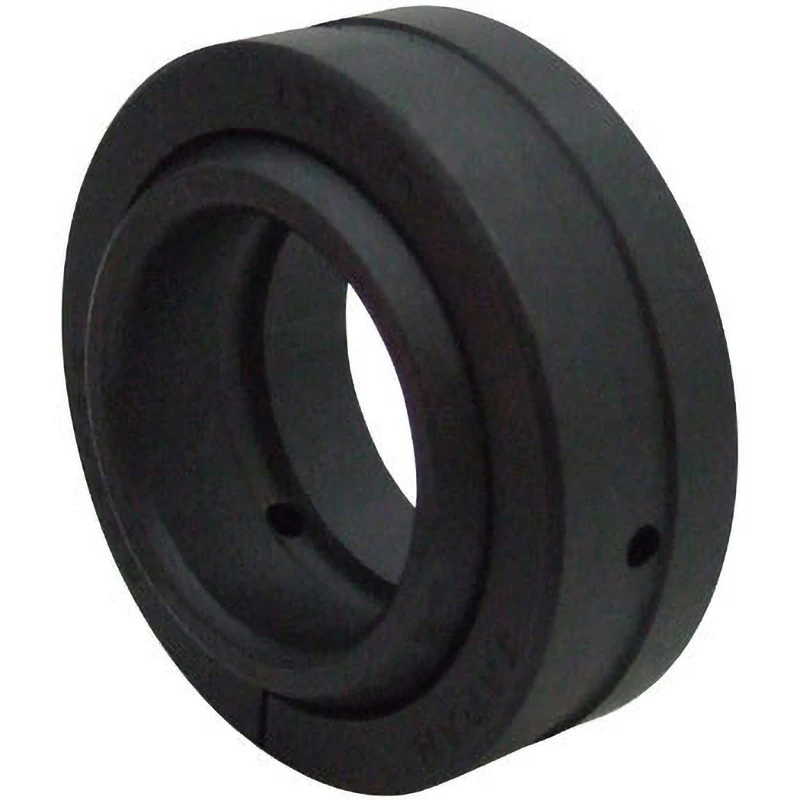

NSK Oil-Powered Spherical Sliding Bearing (Without Seal) > GE15ES

Description

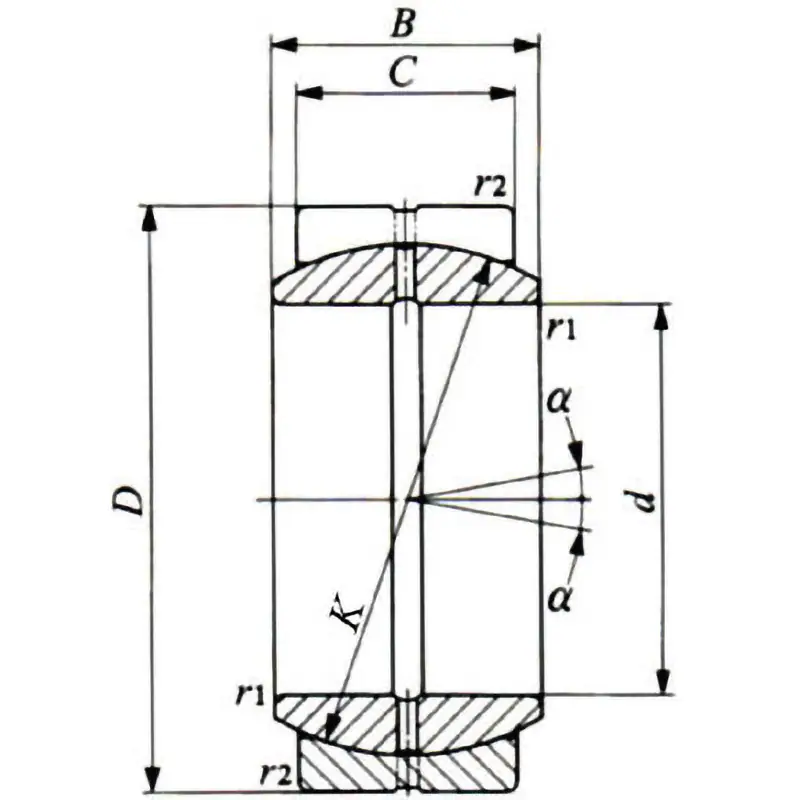

Dimensions B(mm): 12
Dimensions C(mm): 9
Dimensions D(mm): 26
Dimensions K(mm): 22
Dimensions d(mm): 15

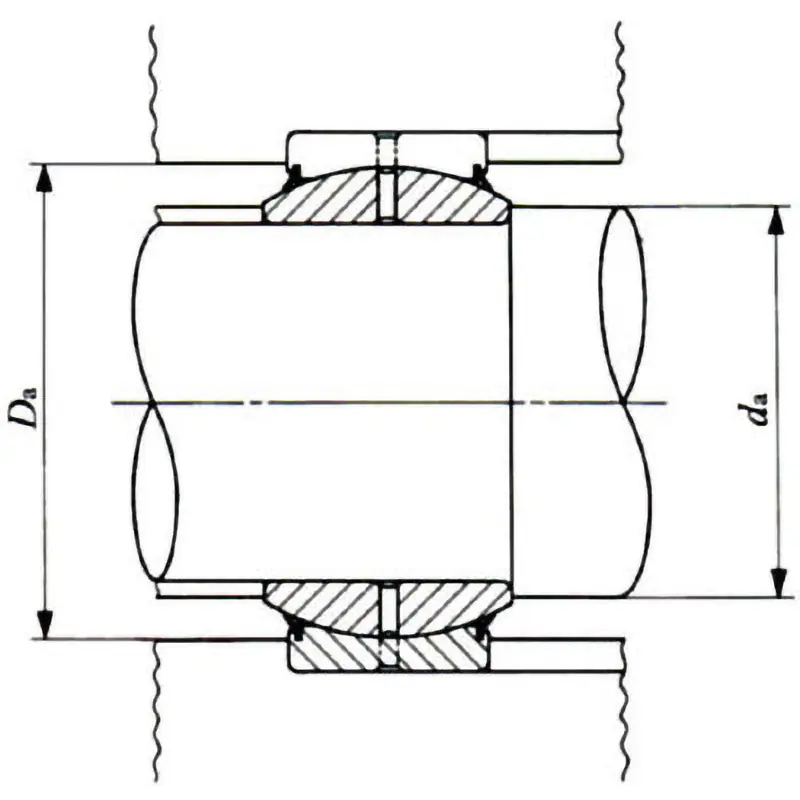

Installation related dimensions (maximum Da)(mm): 23.5
Installation related dimensions (minimum Da)(mm): 22.5
Installation related dimensions (maximum da)(mm): 17.5 (When used at maximum allowable tilt angle, the shoulder dimension of the shaft must be below the maximum value of da.)
Installation related dimensions (minimum da)(mm): 17.5
Chamfer dimension r1(mm): 0.3 (minimum allowable dimension)
Chamfer dimension r2(mm): 0.3 (minimum allowable dimension)
Type: GE-ES type
Outer diameter (mm): 26
Applications: Industrial machinery, construction machinery, etc.
Specifications: 1N is about equal to 0.102Kgf
Material (inner ring, outer ring): High carbon chromium bearing steel (MoS2 coating)
Weight (kg): 0.032
Type: Without seal
Angle (degrees): 8
Presence of seal: Without seal
Dynamic load capacity (N): 19400
Static load capacity (N): 117000
Angle 1 (degrees): –

Both the inner and outer rings are made from high carbon chromium bearing steel, and the sliding surface is treated with a phosphate coating, covered with a dry film of molybdenum disulfide (MoS2), allowing for operation at low torque and providing excellent wear resistance with a large load capacity. It is particularly suitable for applications involving alternating loads or impact loads.
