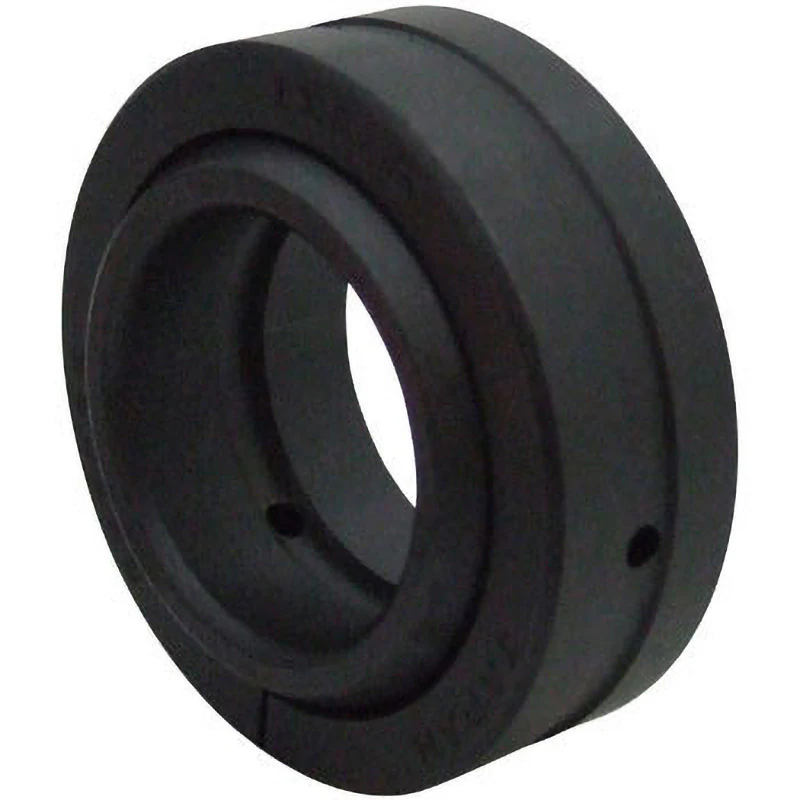

NSK Oil-Lubricated Spherical Sliding Bearing (Without Seal) > GE4E

Description

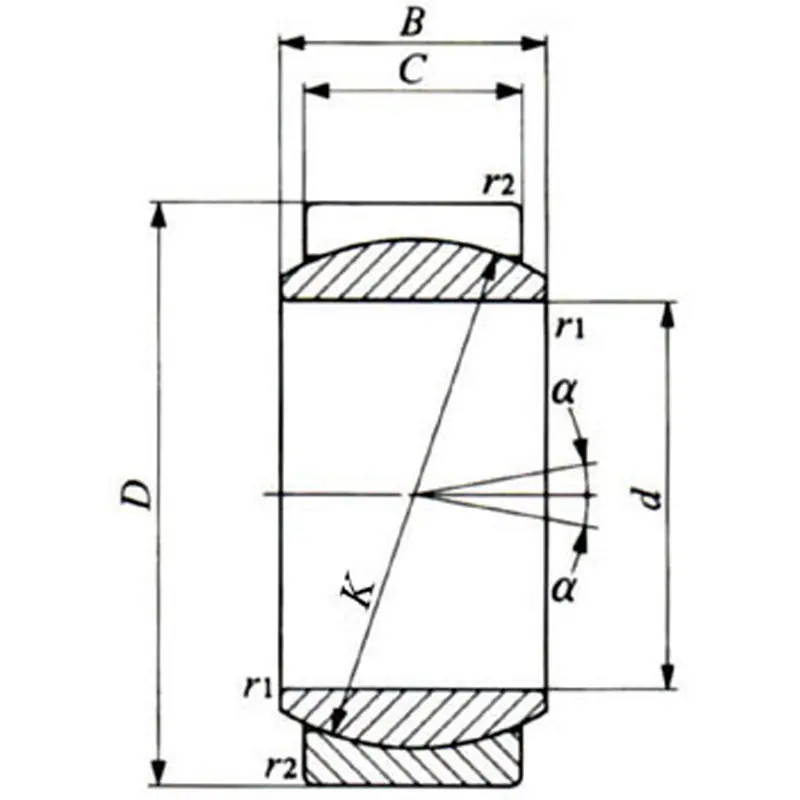

Dimensions B (mm): 5
Dimensions C (mm): 3
Dimensions D (mm): 12
Dimensions K (mm): 8
Dimensions d (mm): 4

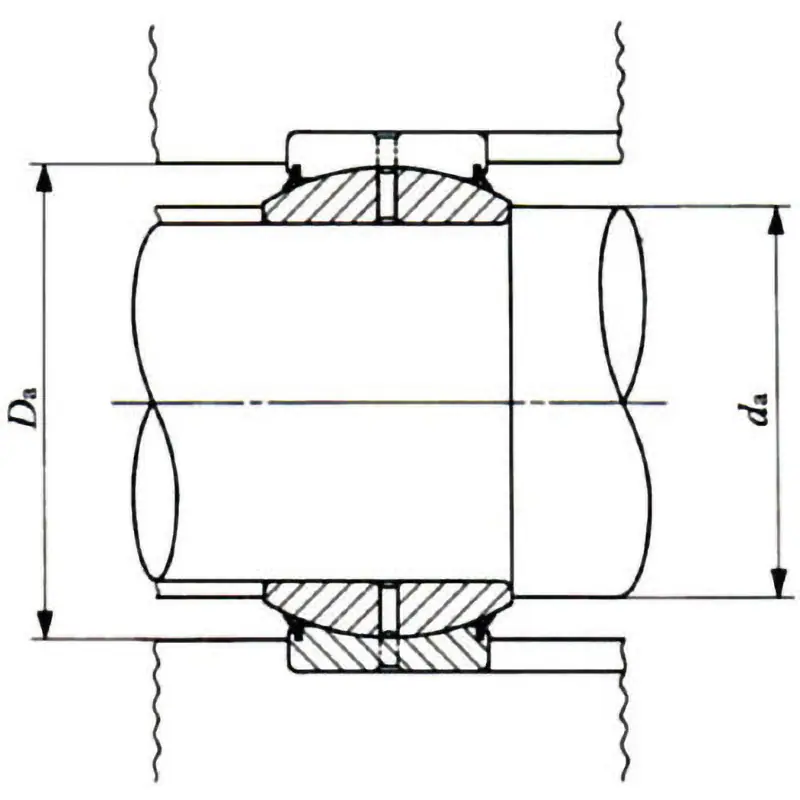

Mounting-related dimensions (Maximum Da) (mm): 9.5
Mounting-related dimensions (Minimum Da) (mm): 8
Mounting-related dimensions (Maximum da) (mm): 6 (When used at maximum allowable tilt angle, the dimension of the shoulder of the shaft should be less than or equal to the maximum value of da.)
Mounting-related dimensions (Minimum da) (mm): 6
Chamfer dimension r1 (mm): 0.3 (Minimum allowable dimension)
Chamfer dimension r2 (mm): 0.3 (Minimum allowable dimension)
Type: GE-E type
Outer diameter (mm): 12
Application: Industrial machinery, construction machinery, etc.
Specification: 1N is about equal to 0.102 Kgf
Material (Inner race? Outer race): High carbon chromium bearing steel (MoS2 coating)
Mass (kg): 0.003
Type without seal
Angle (degrees): 16
Presence of seal: Without seal
Dynamic load capacity (N): 2350
Static load capacity (N): 14100
Angle 1 (degrees) –

Both the inner and outer rings are made of high carbon chromium bearing steel, and the sliding surface is treated with a phosphate coating and covered with a dry film of molybdenum disulfide (MoS2), resulting in a bearing with a high load capacity that operates with low torque and excellent wear resistance. It is particularly suitable for applications involving alternating loads or shock loads.
