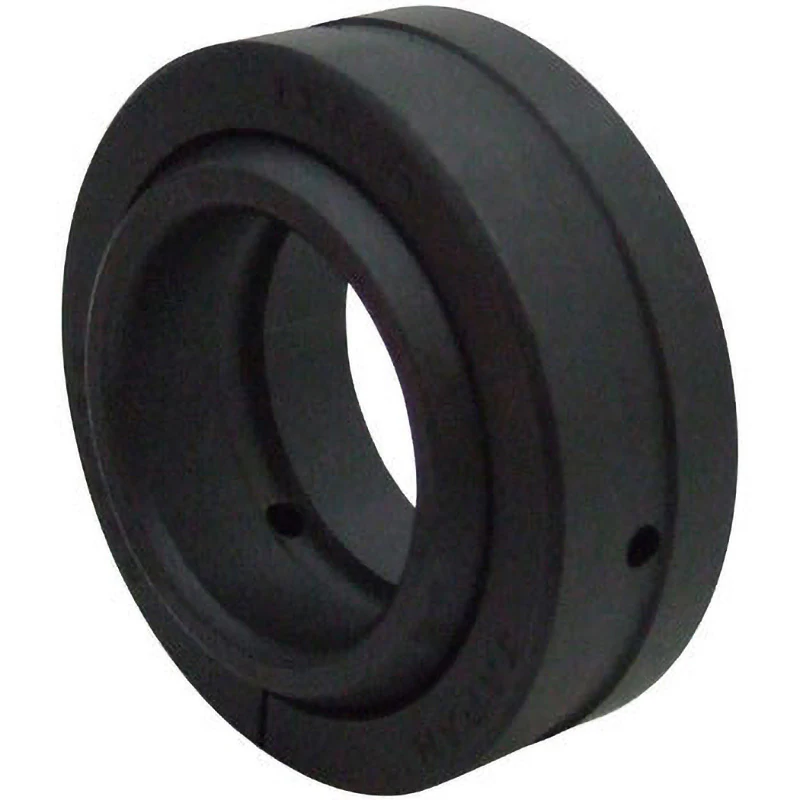

NSK Oil Lubricated Spherical Sliding Bearing (Seal-less) > GE8E

Description

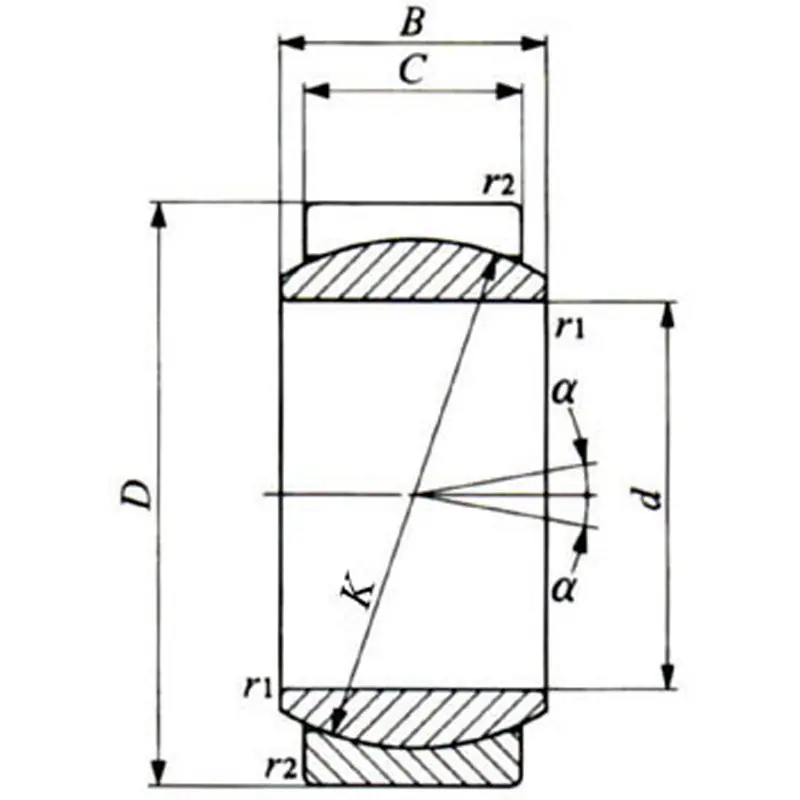

Dimensions B (mm): 8
Dimensions C (mm): 5
Dimensions D (mm): 16
Dimensions K (mm): 13
Dimensions d (mm): 8

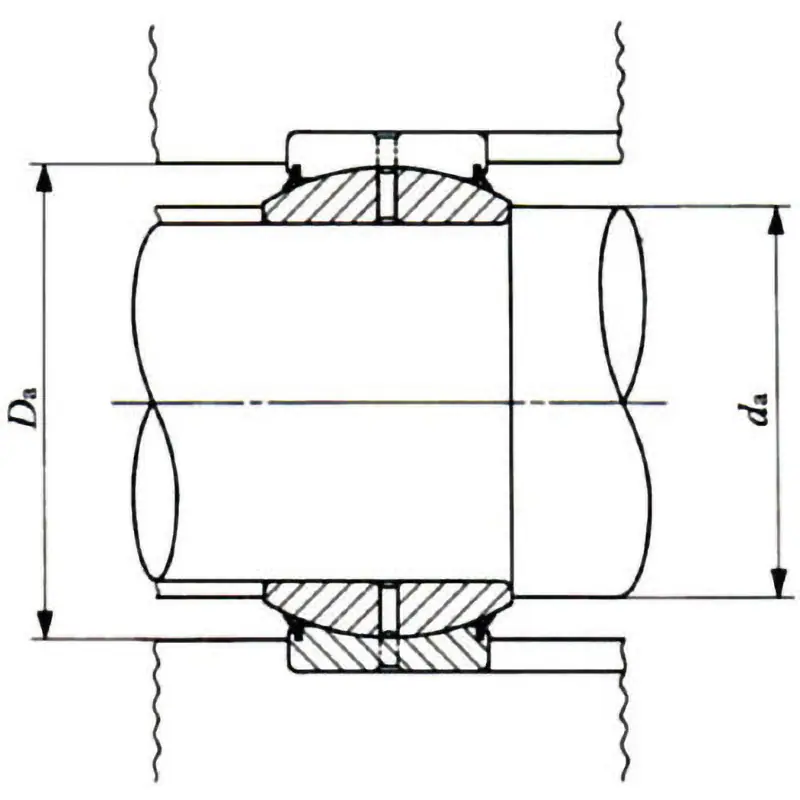

Mounting dimensions (maximum Da) (mm): 13.5
Mounting dimensions (minimum Da) (mm): 13
Mounting dimensions (maximum da) (mm): 10 (When used at the maximum allowable tilt angle, the dimension of the shoulder of the shaft should be less than or equal to the maximum value of da.)
Mounting dimensions (minimum da) (mm): 10
Chamfer dimensions r1 (mm): 0.3 (minimum allowable dimension)
Chamfer dimensions r2 (mm): 0.3 (minimum allowable dimension)
Type: GE-E type
Outer diameter (mm): 16
Application: Industrial machinery, construction machinery, etc.
Specification: 1N is about equal to 0.102 Kgf
Material (inner ring, outer ring): High carbon chromium bearing steel (MoS2 coating)
Weight (kg): 0.008
Type seal-less
Angle (degrees): 15
Presence of seal: Seal-less
Dynamic load capacity (N): 6370
Static load capacity (N): 38200
Angle 1 (degrees) –

Both the inner and outer rings are made of high carbon chromium bearing steel, with the sliding surfaces treated with phosphate coating and covered with a dry film of molybdenum disulfide (MoS2), allowing for low torque operation and excellent wear resistance with a large load capacity. It is particularly suitable for alternating loads and impact loads.
