Description

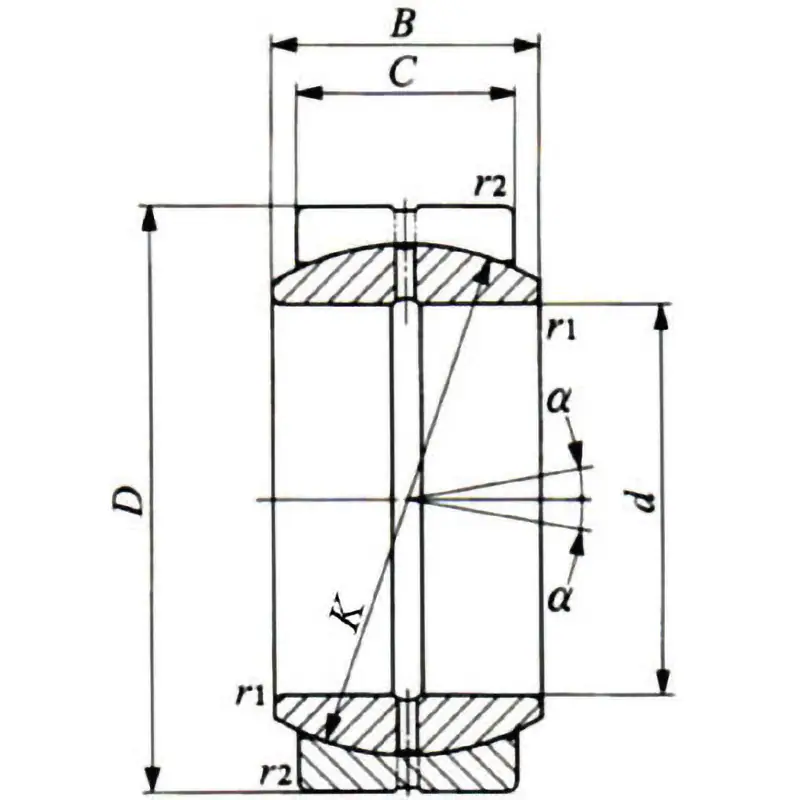

Dimension B (mm): 22
Dimension C (mm): 18
Dimension D (mm): 47
Dimension K (mm): 40.7
Dimension d (mm): 30

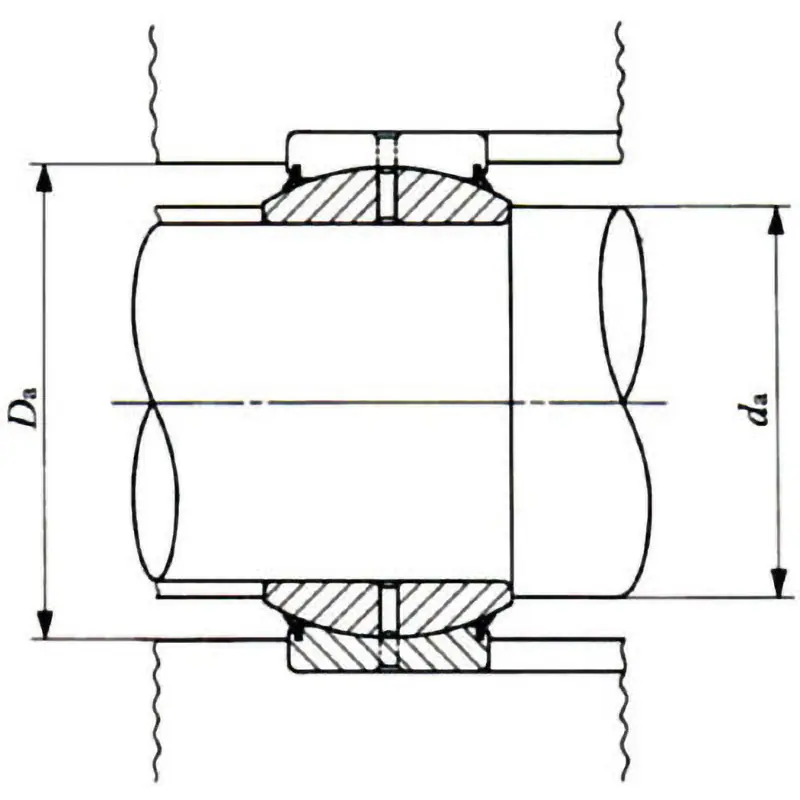

Mounting related dimension (Max Da) (mm): 42.5
Mounting related dimension (Min Da) (mm): 41.5
Mounting related dimension (Max da) (mm): 34 (when used at the maximum allowable tilt angle, the shoulder dimension of the shaft should be below the maximum value of da.)
Mounting related dimension (Min da) (mm): 34
Chamfer dimension r1 (mm): 0.6 (minimum allowable dimension)
Chamfer dimension r2 (mm): 0.6 (minimum allowable dimension)

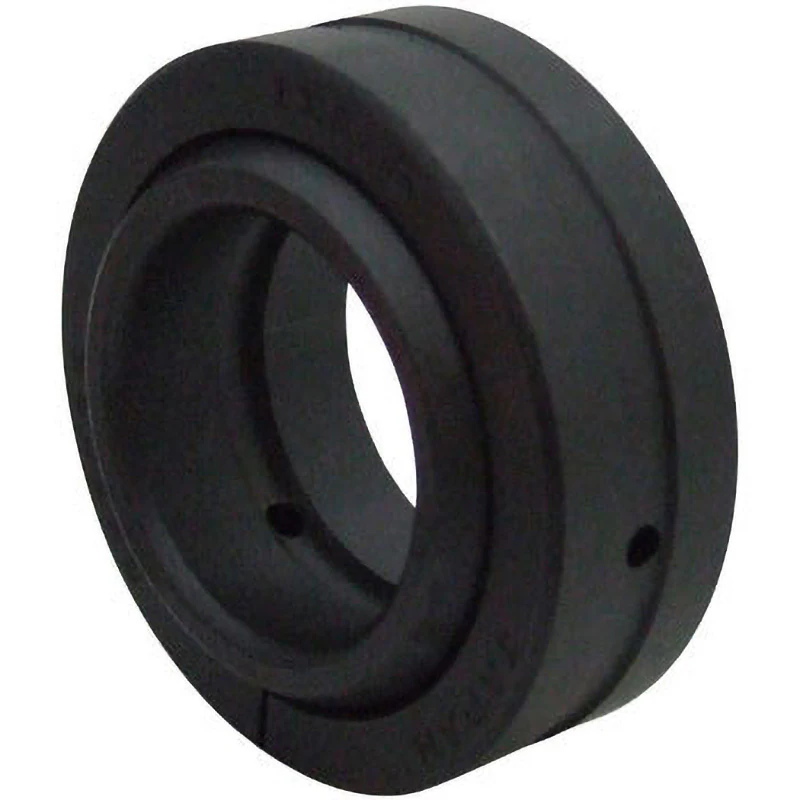

Type: GE-ES type
Outer diameter (mm): 47
Applications: Industrial machinery, construction machinery, etc.
Specifications: 1N is about equal to 0.102Kgf
Material (inner ring, outer ring): High carbon chromium bearing steel (MoS2 coating)
Weight (kg): 0.160
Type: Without seal
Angle (degrees): 6
Presence of seal: Without seal
Dynamic load capacity (N): 71800
Static load capacity (N): 431000
Angle 1 (degrees): –
Both the inner and outer rings are made of high carbon chromium bearing steel, and the sliding surface is treated with phosphate coating and covered with a dry film of molybdenum disulfide (MoS2), allowing for operation at low torque and providing excellent wear resistance with high load capacity. It is particularly suitable for alternating loads and impact loads.
