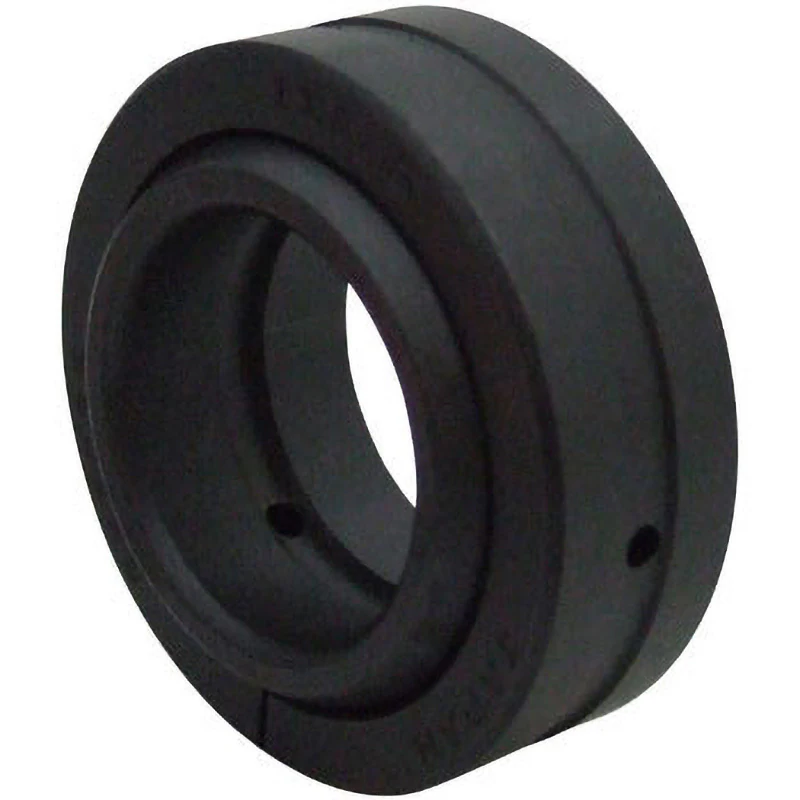

NSK Grease Lubricated Spherical Sliding Bearing (No Seal) > GE17ES

Description

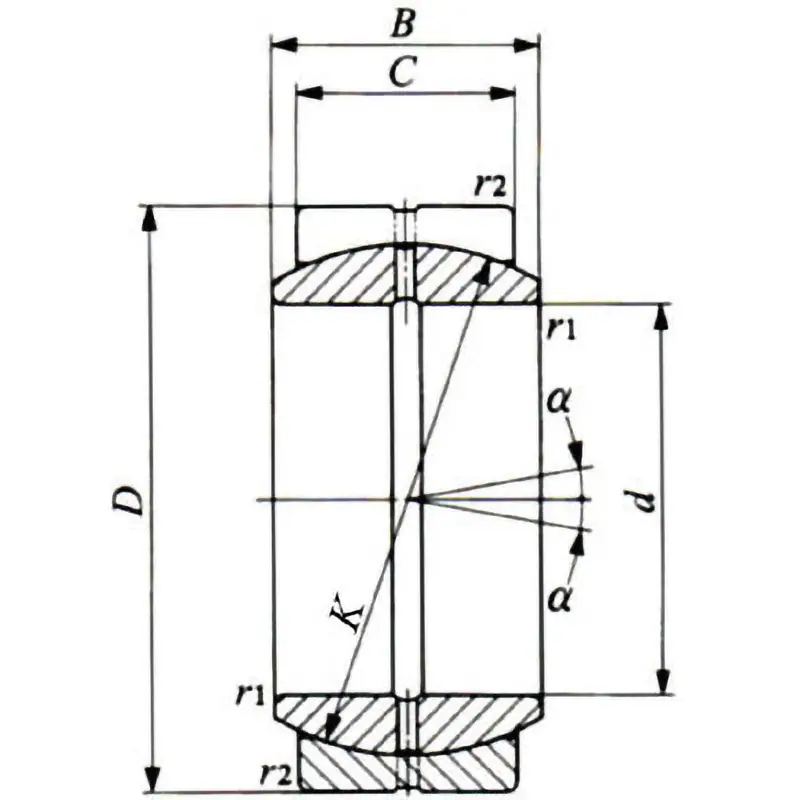

Dimension B (mm): 14
Dimension C (mm): 10
Dimension D (mm): 30
Dimension K (mm): 25
Dimension d (mm): 17

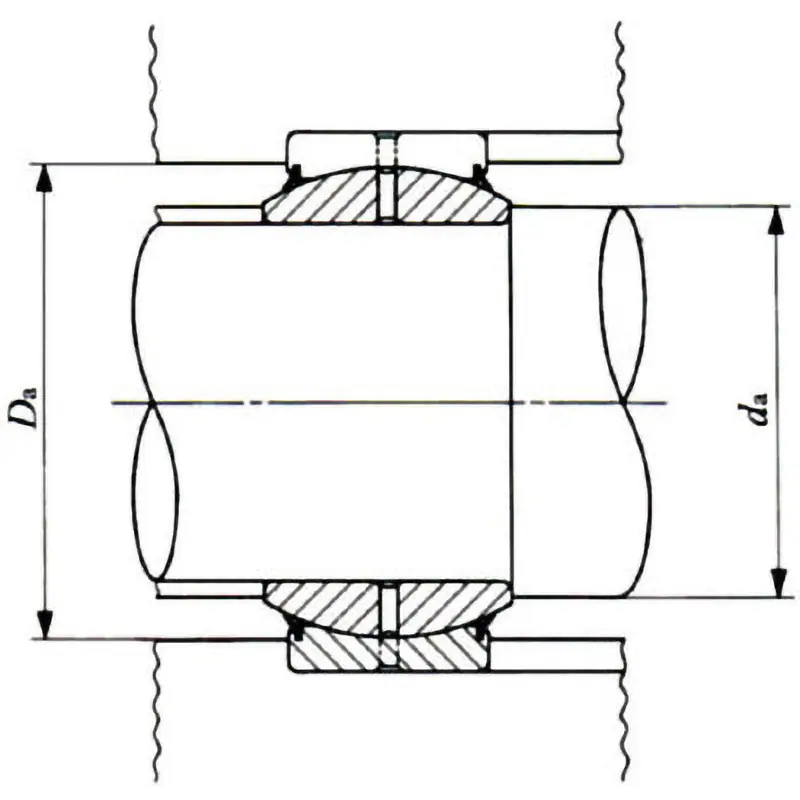

Installation Relation Dimension (Maximum Da) (mm): 27.5
Installation Relation Dimension (Minimum Da) (mm): 26
Installation Relation Dimension (Maximum da) (mm): 19.5 (When used at the maximum allowable tilt angle, the shoulder dimension of the shaft must be less than or equal to the maximum value of da.)
Installation Relation Dimension (Minimum da) (mm): 19.5
Chamfer Dimension r1 (mm): 0.3 (Minimum allowable dimension)
Chamfer Dimension r2 (mm): 0.3 (Minimum allowable dimension)
Type: GE-ES Type
Outer Diameter (mm): 30
Application: Industrial Machinery, Construction Machinery, etc.
Specification: 1N is about equal to 0.102Kgf
Material (inner ring, ? Outer Ring): High Carbon Chrome Bearing Steel (MoS2 Coating)
Mass (kg): 0.049
Type No Seal
Angle (degrees): 10
Presence of Seal: No Seal
Dynamic Load Capacity (N): 24500
Static Load Capacity (N): 147000
Angle 1 (degrees): –

Both inner and outer rings are made of high carbon chrome bearing steel, and the sliding surface is treated with phosphate coating and covered with a dry film of molybdenum disulfide (MoS2), allowing for operation with low torque and excellent wear resistance, making it a bearing with a large load capacity. It is particularly suitable for applications where alternating loads or impact loads are present.
