Description

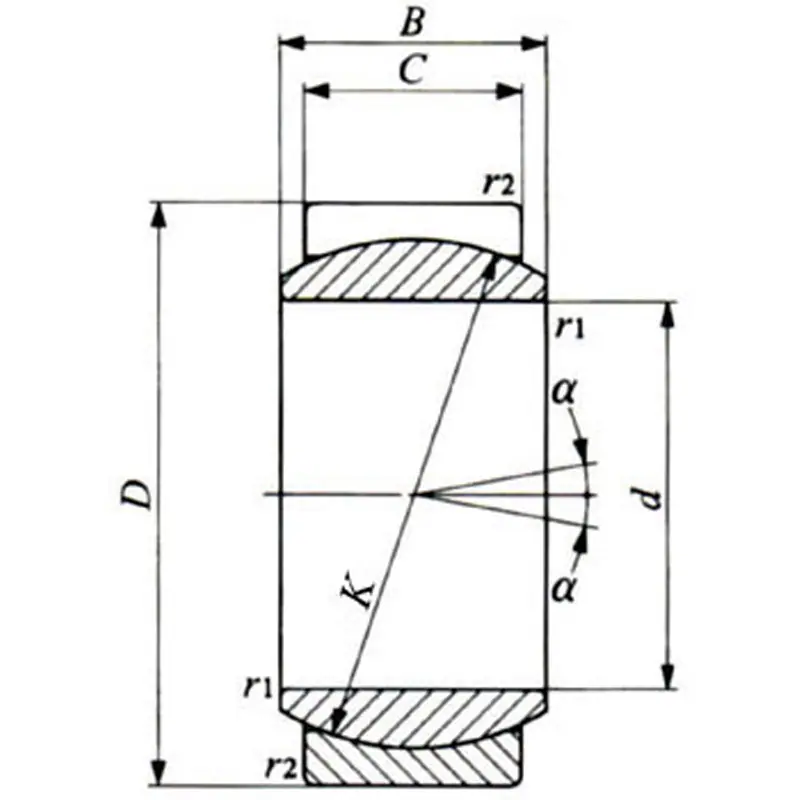

Dimension B (mm): 9
Dimension C (mm): 6
Dimension D (mm): 19
Dimension K (mm): 16
Dimension d (mm): 10

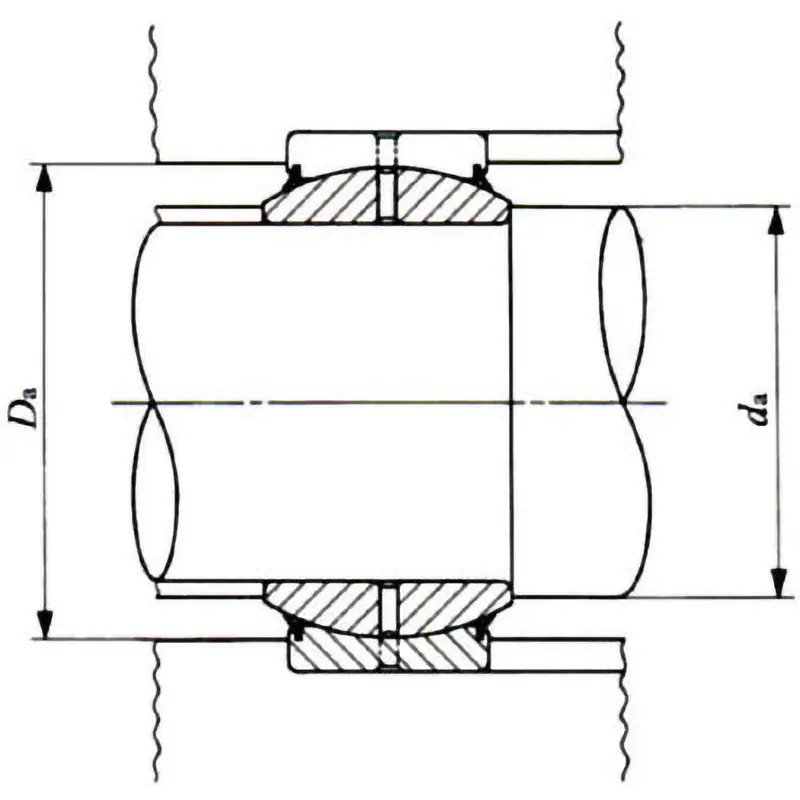

Mounting relation dimension (max Da) (mm): 16.5
Mounting relation dimension (min Da) (mm): 15.5
Mounting relation dimension (max da) (mm): 12.5 (When used at the maximum allowable tilt angle, the dimension of the shaft shoulder should be below the maximum value of da.)
Mounting relation dimension (min da) (mm): 12.5
Chamfer dimension r1 (mm): 0.3 (minimum allowable dimension)
Chamfer dimension r2 (mm): 0.3 (minimum allowable dimension)
Type: GE-E type
Outer diameter (mm): 19
Application: Industrial machinery, construction machinery, etc.
Specification: 1N is about equal to 0.102 Kgf
Material (inner ring, outer ring): High carbon chromium bearing steel (MoS2 coating)
Weight (kg): 0.012
Type: No Seal
Angle (degrees): 12
Presence of seal: No seal
Dynamic load capacity (N): 9410
Static load capacity (N): 56500
Angle 1 (degrees): –

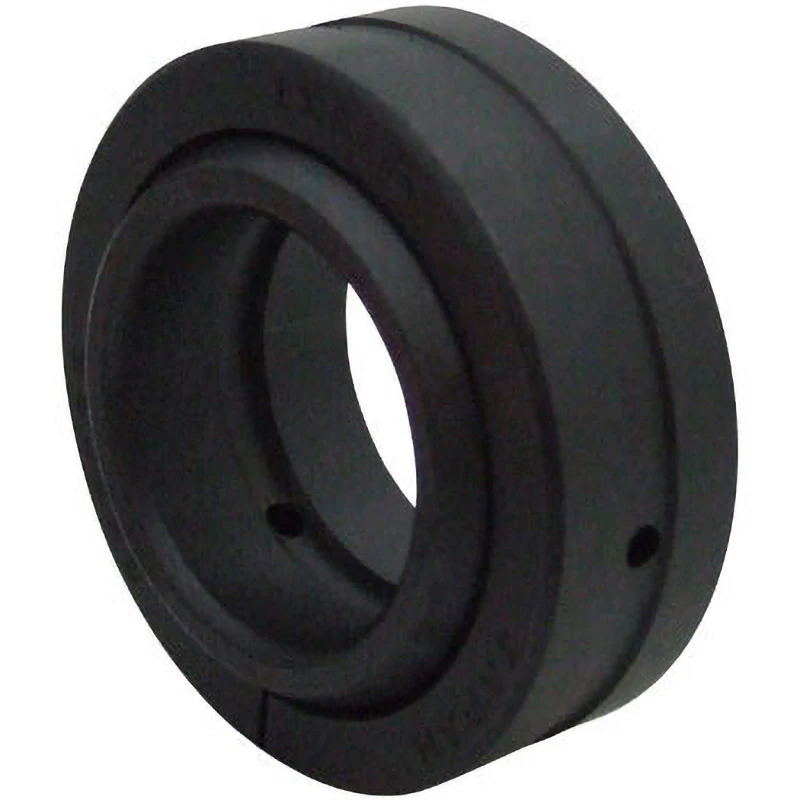

Both the inner and outer rings are made of high carbon chromium bearing steel, and the sliding surfaces are treated with a phosphate coating and covered with a dry film of molybdenum disulfide (MoS2), making it a bearing that operates with low torque and has excellent wear resistance and high load capacity. It is particularly suitable when alternating loads or shock loads are applied.
