Description
Chain length (m): 3;
Number of rows: 1;
Roller diameter d1 (mm): 11.91;
Roller width b1 (mm): 12.57;
Pin diameter d2 (mm): 5.94;
Width h2 (mm): 18;
Thickness T (mm): 2.42;
Pin type: Rivet type;
Minimum tensile strength (kN): 31.8;
Average tensile strength (kN): 41.5;
Main body mass (kg): 4.5;
Number of unit links: 157;
Usage: For the conduction of machinery;
Accessories: 1 joint link included;
Material (main body): Iron;

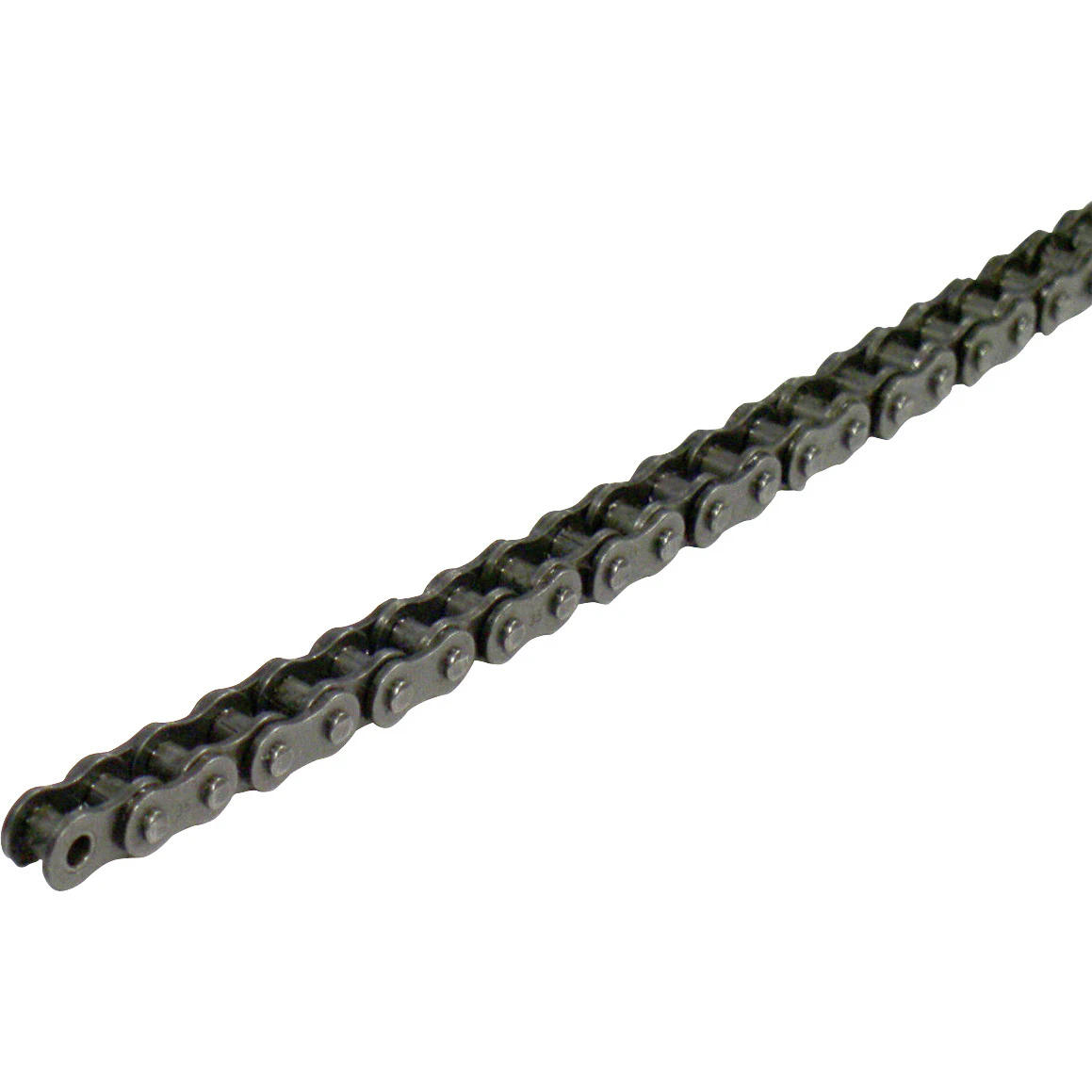

Type: Roller chain;
Pitch (mm): 19.05;
Dimension L (mm): 25.9;
Inner width of link (mm): 12.7;
Dimension LC (mm): 27.7
