Description
Chain length (m): 3;
Number of rows: 1;
Roller diameter d1 (mm): 10.16;
Roller width b1 (mm): 9.4;
Pin diameter d2 (mm): 5.08;
Width h2 (mm): 15.09;
Thickness T (mm): 2.03;
Pin type: Rivet type;
Minimum tensile strength (kN): 22.2;
Average tensile strength (kN): 29.4;
Main body mass (kg): 3.06;
Number of unit links: 189;
Usage: For the conduction of machinery;
Accessories: 1 joint link included;
Material (main body): Iron;

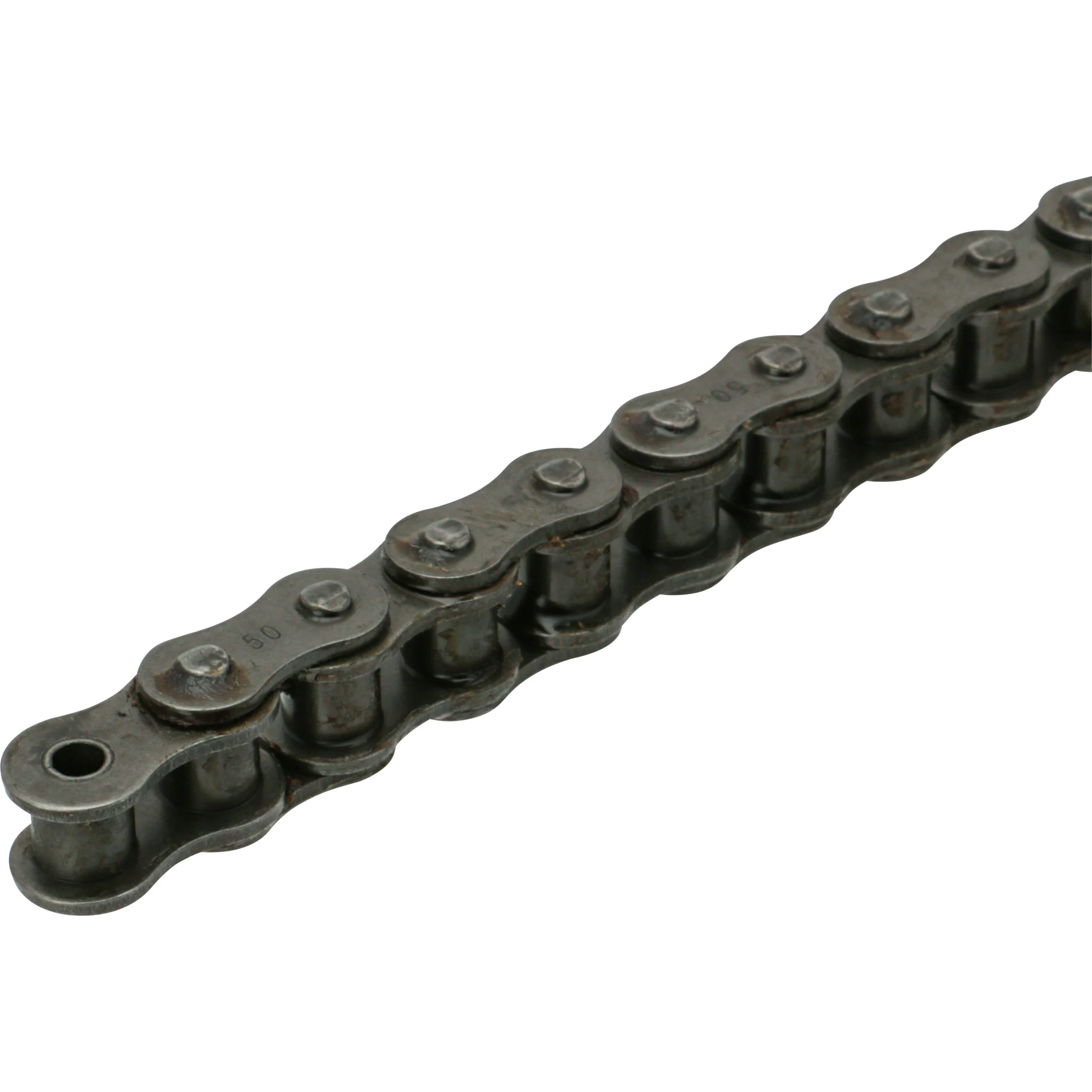

Type: Roller chain;
Pitch (mm): 15.875;
Dimension L (mm): 20.7;
Inner width of link (mm): 9.53;
Dimension LC (mm): 22.2
