Description
Chain length (m): 3;
Number of rows: 1;
Roller diameter d1 (mm): 7.95;
Roller width b1 (mm): 7.85;
Pin diameter d2 (mm): 3.96;
Width h2 (mm): 12;
Thickness T (mm): 1.5;
Pin type: Rivet type;
Minimum tensile strength (kN): 14.1;
Average tensile strength (kN): 17.5;
Main body mass (kg): 1.86;
Number of unit links: 237;
Usage: For the conduction of machinery;
Accessories: 1 joint link included;
Material (main body): Iron;

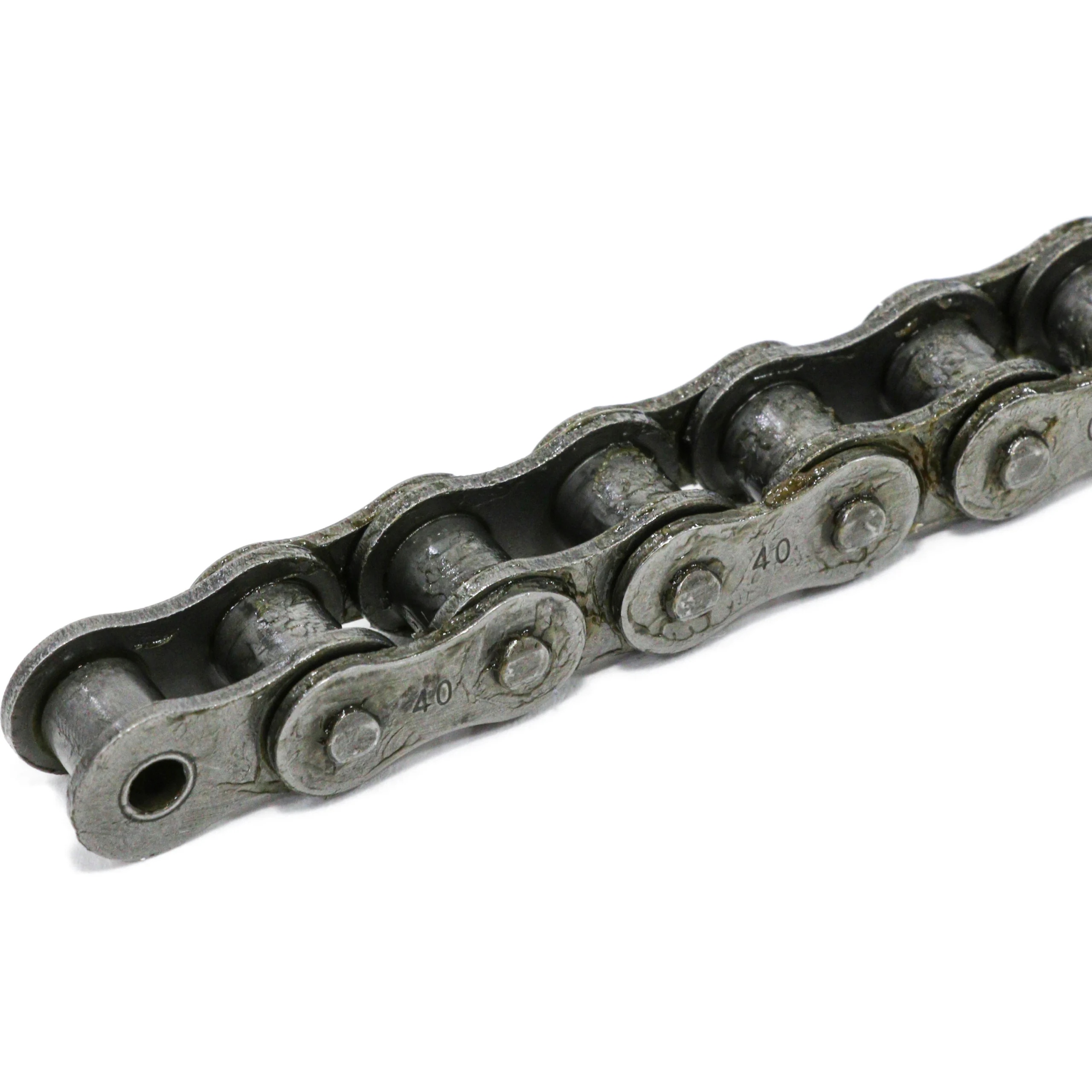

Type: Roller chain;
Pitch (mm): 12.7;
Dimension L (mm): 16.6;
Inner width of link (mm): 7.95;
Dimension LC (mm): 17.8
