Description
Chain length (m): 3;
Number of rows: 1;
Roller diameter d1 (mm): 5.08;
Roller width b1 (mm): 4.77;
Pin diameter d2 (mm): 3.58;
Width h2 (mm): 9;
Thickness T (mm): 1.3;
Pin type: Rivet type;
Minimum tensile strength (kN): 7.9;
Average tensile strength (kN): 10.8;
Main body mass (kg): 0.99;
Number of unit links: 315;
Usage: For the conduction of machinery;
Accessories: 1 joint link included;
Material (main body): Iron;

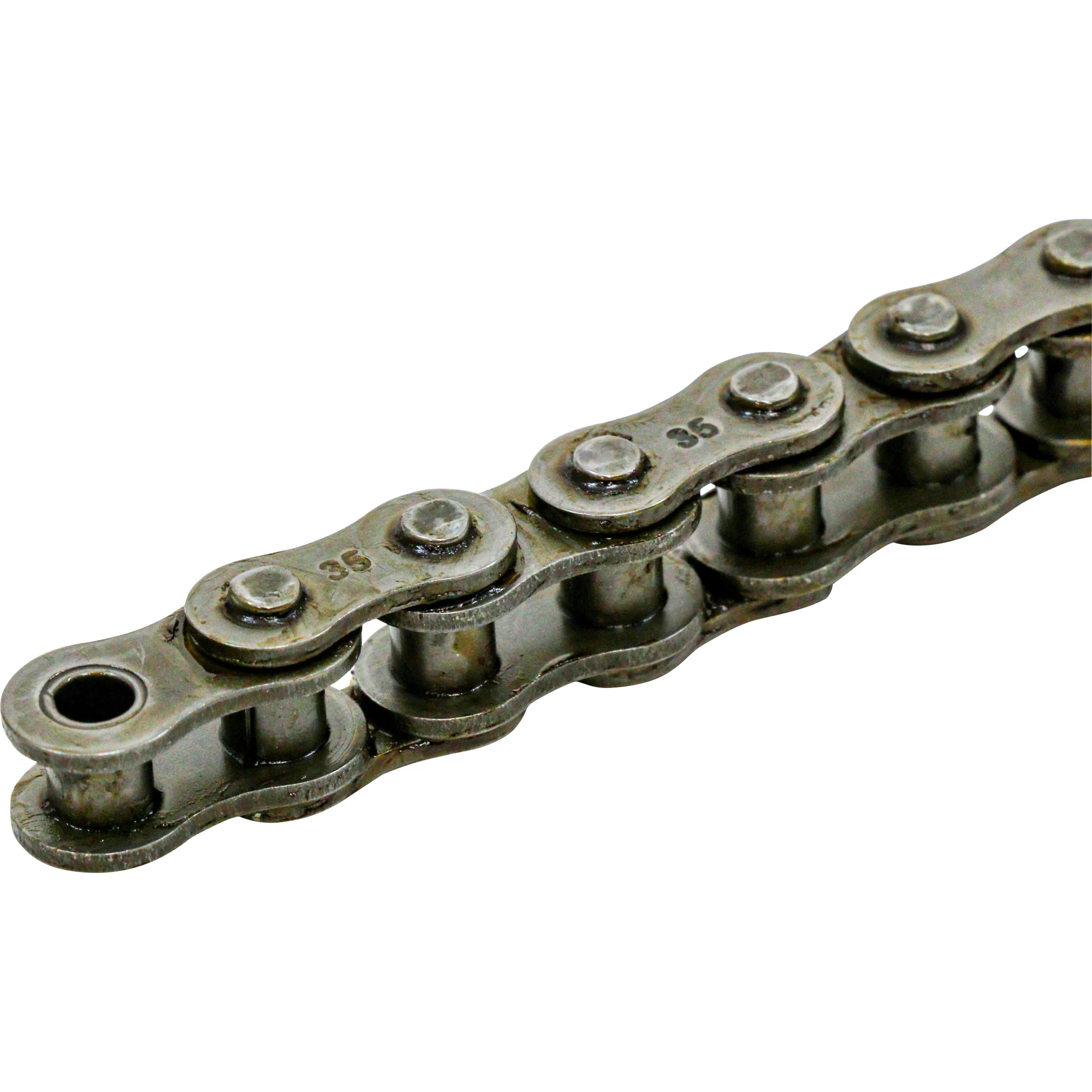

Type: Roller chain;
Pitch (mm): 9.525;
Dimension L (mm): 12.4;
Inner width of link (mm): 4.78;
Dimension LC (mm): 13.17
