Description
Dimension B1(mm): 46;
Dimension B2(mm): 10;
Dimension d2(mm): 58;
Bore diameter of the shaft hole d1 (mm): 35;
Purpose: To fix the shaft;

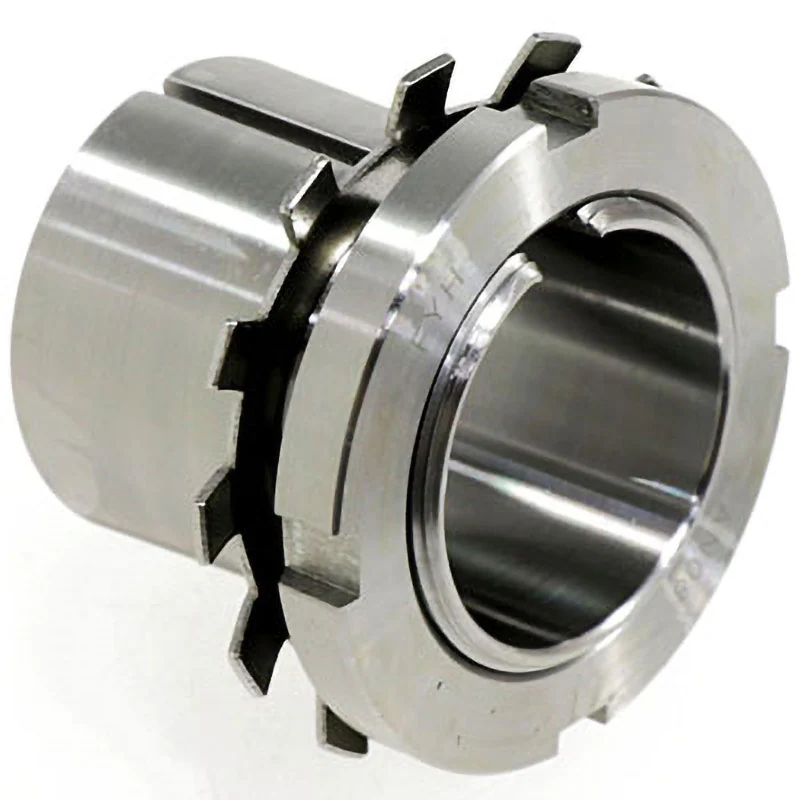

Type: Adapter;
Type: H;
Suitable for: Sleeve A2308X;
Compliant with RoHS Directive (corresponding to 10 substances);
Suitable for: bearings UK208, UKP208, UKF208, UKF308, UKX08;
The nut to be used: AN08;
The washer to be used: AW08X
