Description

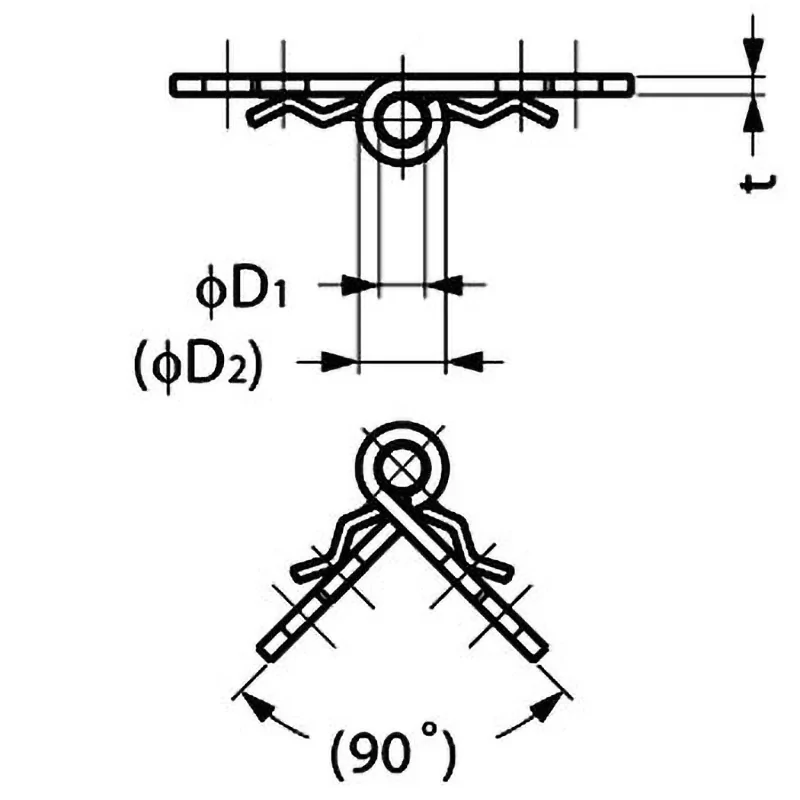

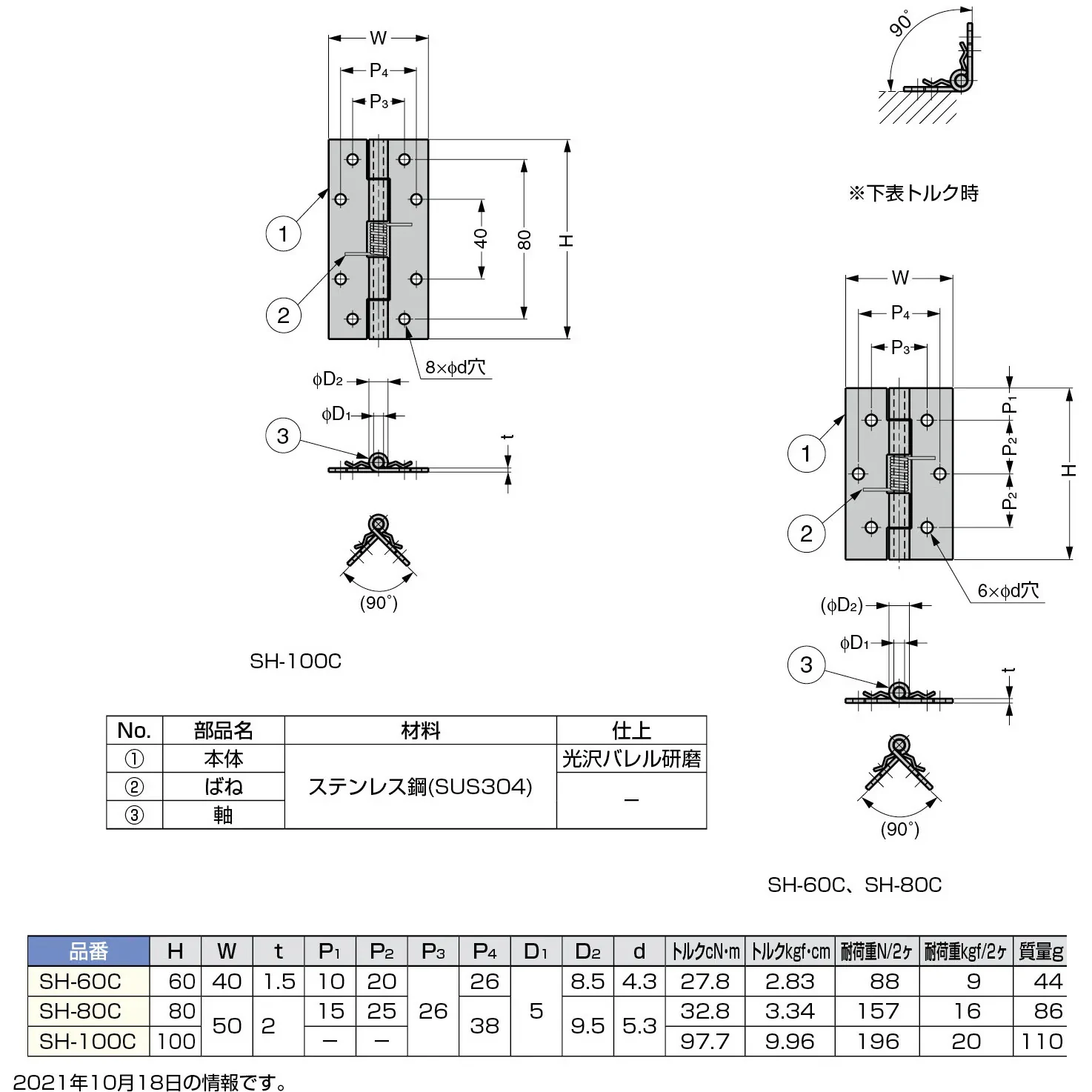

Dimension D1 (mm): 5
Dimension D2 (mm): 9.5
Dimension H (mm): 80
Dimension P1 (mm): 15
Dimension P2 (mm): 25
Dimension P3 (mm): 26
Dimension P4 (mm): 38
Dimension W (mm): 50
Dimension d (mm): 5.3
Dimension t (mm): 2
Material: Stainless Steel (SUS304)
Material/Finish: Stainless Steel
Weight (g): 86
Type: Spring Hinge
Finish: Glossy Barrel Polished
RoHS Directive (10 Substances Compliance): Compliant

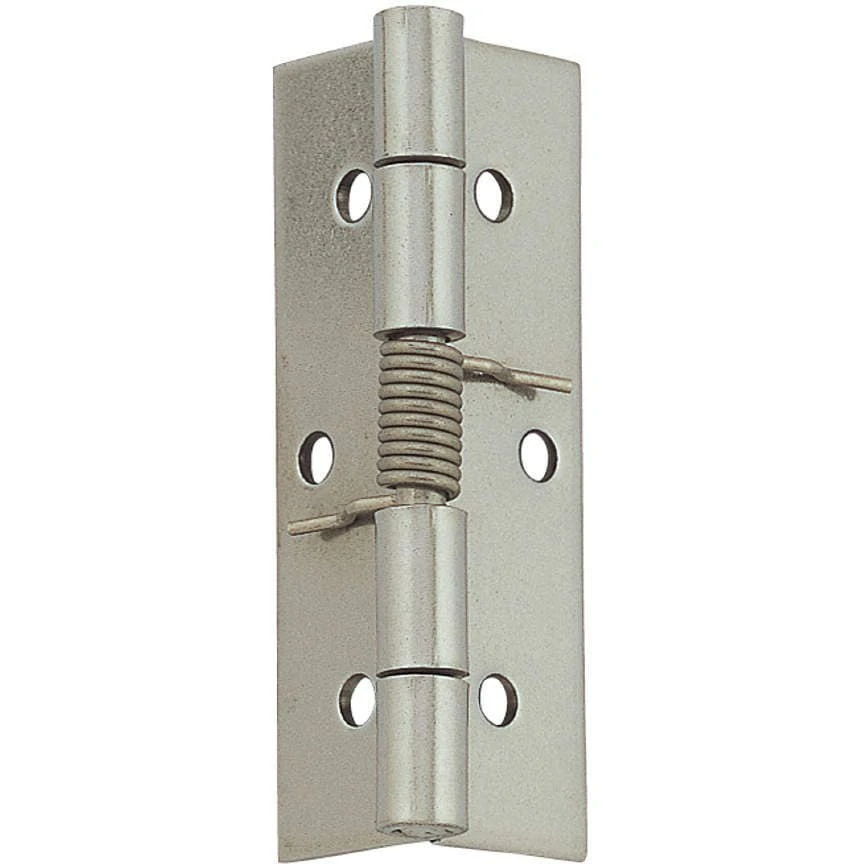

This is a spring hinge made entirely of stainless steel.
