Description

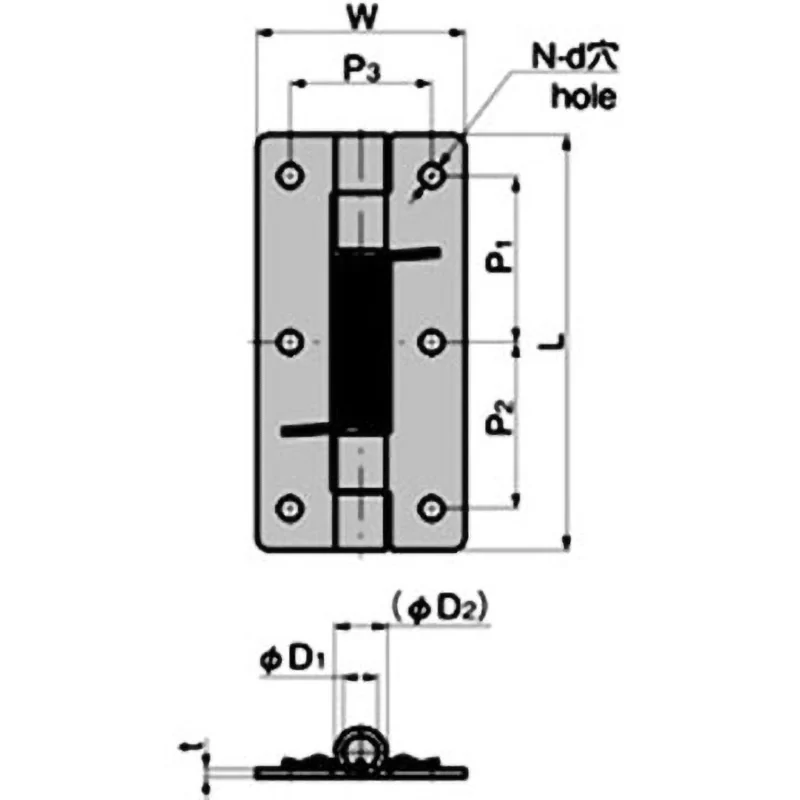

Dimensions L (mm): 32
Dimensions t (mm): 1.2
Dimensions D1 (mm): 4.5
Dimensions D2 (mm): 7
Dimensions W (mm): 32
Dimensions d (mm): 3.2
Dimensions P1 (mm): 14
Dimensions P2 (mm): –
Dimensions P3 (mm): 20
N4
Usage: Control panel for ships, vehicles, etc.
Material: Cold-rolled Stainless Steel plate (SUS304)
Weight (g): 15
Surface Finish: Glossy barrel polishing
Takigen Code: 13263
Rated Torque (cN*m): 90 degrees: 7.4, 180 degrees: 5.3
The durability of the spring is excellent, making it suitable for frequent use.
It is made of Stainless Steel, which has excellent corrosion resistance.
