Description

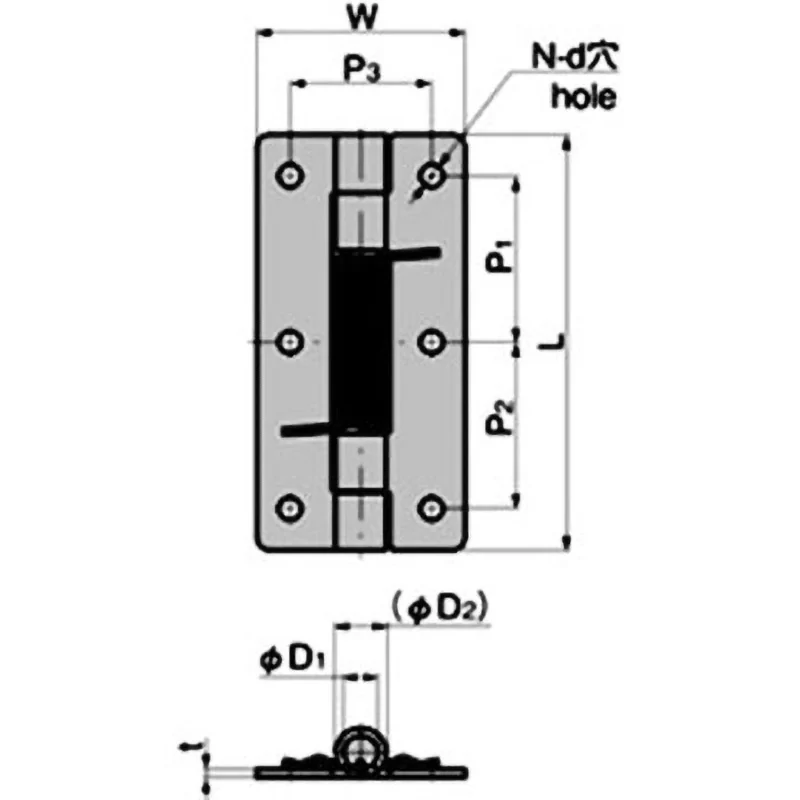

Dimension L (mm): 66
Dimension t (mm): 1.5
Dimension D1 (mm): 4.5
Dimension D2 (mm): 7.5
Dimension W (mm): 38
Dimension d (mm): 3.2
Dimension P1 (mm): 32
Dimension P2 (mm): –
Dimension P3 (mm): 25
N4
Application: Control panel for ships and vehicles

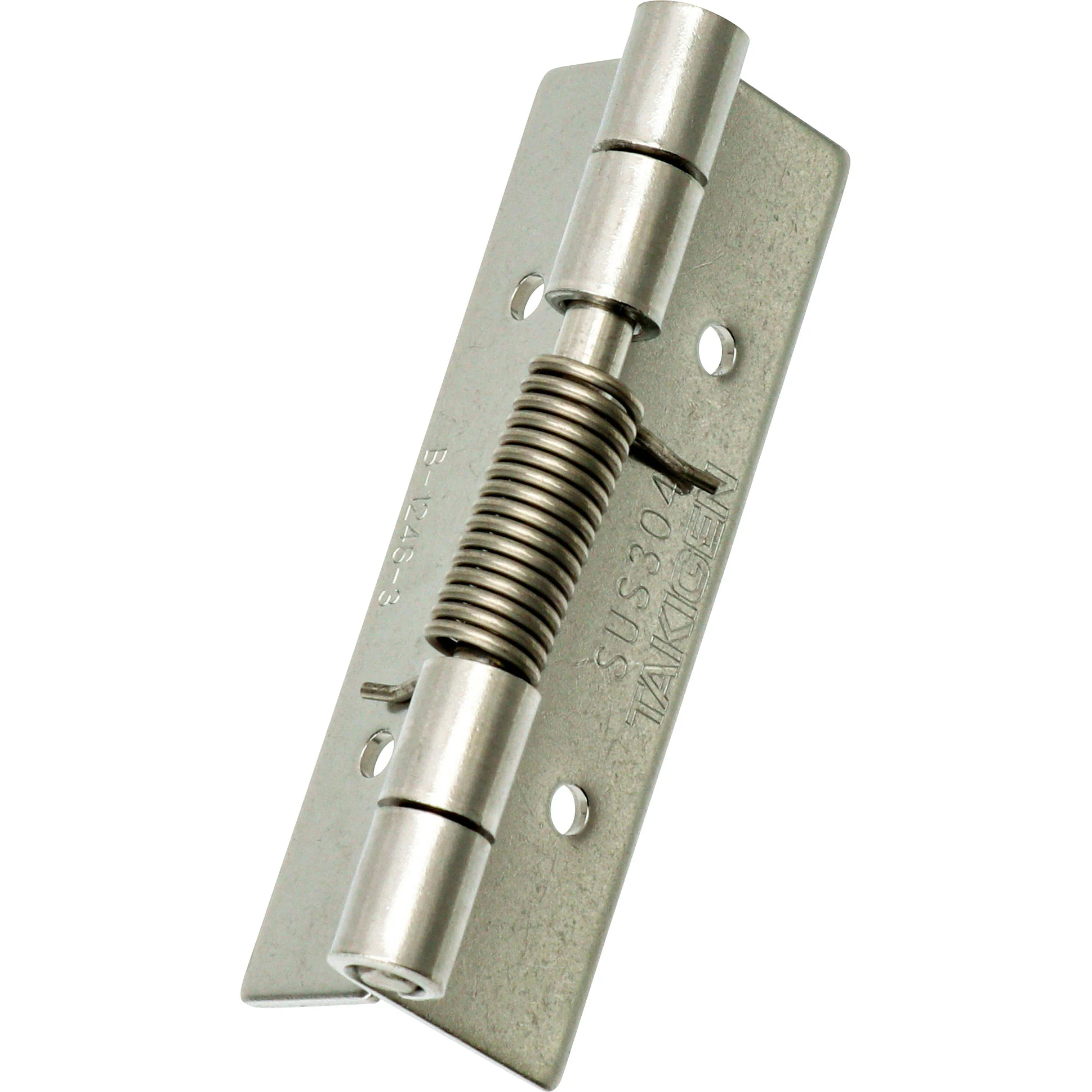

Material: Cold rolled Stainless Steel plate (SUS304)
Weight (g): 42
Surface finish: Gloss barrel polishing
Takigen code: 13261
Rated torque (cN*m): 90 degrees: 14.8, 180 degrees: 7.81
The spring durability is excellent, making it suitable for frequent use.
It is made of Stainless Steel, which has excellent corrosion resistance.
