Description

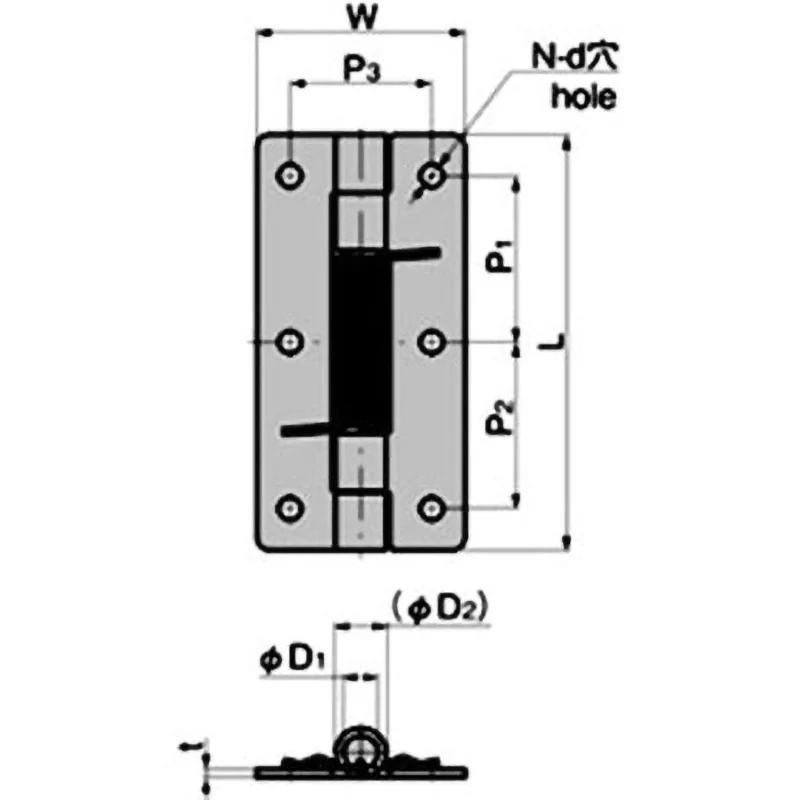

Dimension L (mm): 100
Dimension t (mm): 2
Dimension D1 (mm): 8
Dimension D2 (mm): 12
Dimension W (mm): 50
Dimension d (mm): 5.3
Dimension P1 (mm): 40
Dimension P2 (mm): 40
Dimension P3 (mm): 34
N6
Usage: Control panel for ships and vehicles
Material: Cold-rolled Stainless Steel sheet (SUS304)
Weight (g): 130
Surface Finish: Glossy barrel polishing
Takigen Code: 13258
Rated Torque (cN*m): 90 degrees: 20.4, 180 degrees: 12.8
The durability of the spring is excellent, making it suitable for frequent use.
It is made of Stainless Steel, which offers excellent corrosion resistance.
