Description

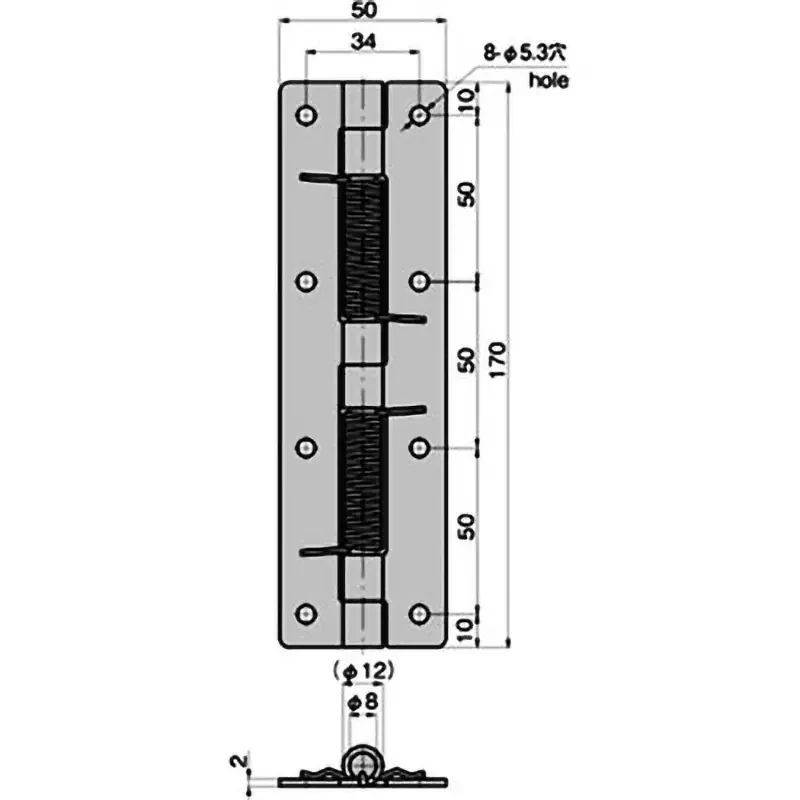

Dimensions L (mm): 170
Dimensions t (mm): 2
Dimensions D1 (mm): 8
Dimensions D2 (mm): 12
Dimensions W (mm): 50
Dimensions d (mm): 5.3
Dimensions P1 (mm): 50
Dimensions P2 (mm): 50
Dimensions P3 (mm): 34
N8
Usage: Control panel for ships, vehicles, etc.
Material: Cold-rolled Stainless Steel Plate (SUS304)
Mass (g): 222
Surface Finish: Glossy Barrel Polishing
Takigen Code: 13257
Rated Torque (cN*m): 90 degrees: 40.4, 180 degrees: 20.1
The durability of the spring is excellent, making it suitable for frequent use.
It has excellent corrosion resistance due to being made of Stainless Steel.
