Description
Quantity: 1 piece
As One Product Number: 64-6781-70
Product Number: HG-JHW16S-34
Mass (g): 83
Finish: Textured
Material: PBT Resin
Type: Flat Hinge

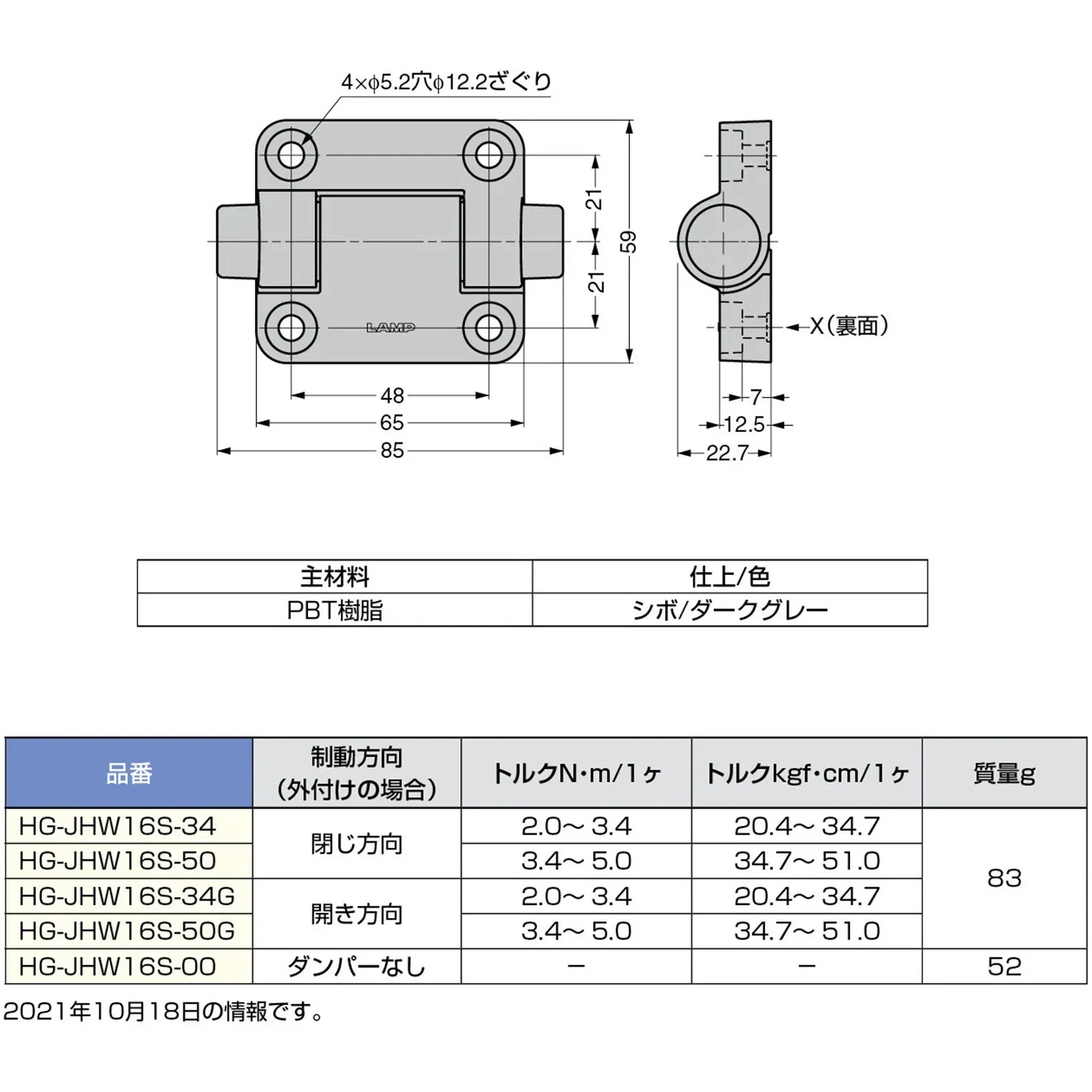

Length L (mm): 85
Width W (mm): 59
Specification: Operating Temperature: 0 ??C to 40 ??C
Application: Top cover of various enclosures
As One Product Number: 64-6781-70
RoHS Directive (10 substances compliant): Compliant
Manufacturer has passed 70,000 opening and closing tests.

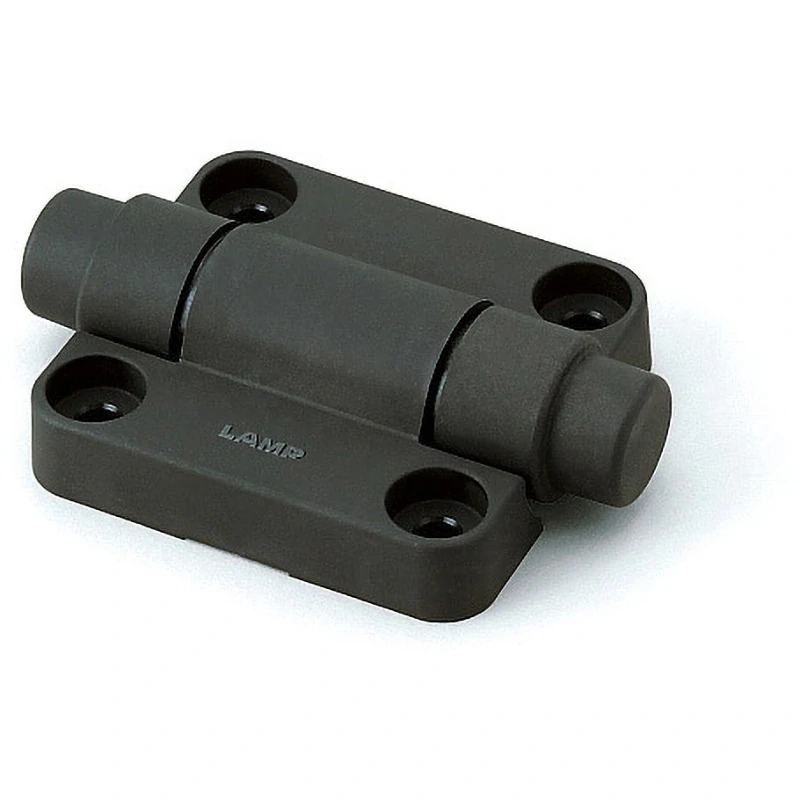

It is a surface-mounted type damper hinge incorporating the Rapcon Damper Hinge UDH-16 type.
The movement in the opposite direction of the damper (if the damper acts in the closing direction, opening direction: toward) is also smooth.
When combined with the same type without a damper, it can be used with the torque of one hinge, accommodating a wide range of top cover sizes.
