Description
Quantity: 1 piece
As One Product Number: 64-6781-71
Product Number: HG-JHW16S-34G
Mass (g): 83
Finish: Grain
Material: PBT Resin
Type: Flat Hinge Type

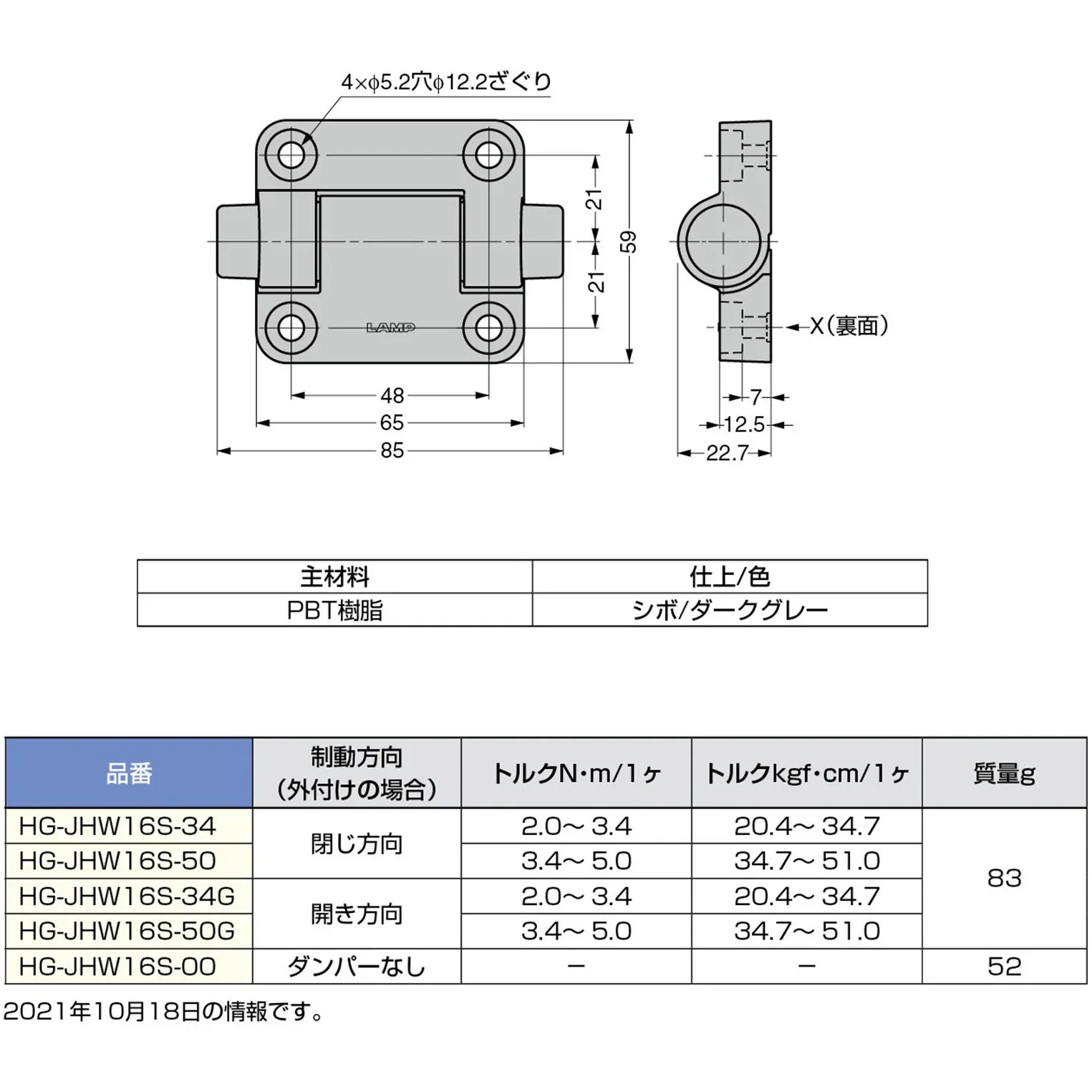

Length L (mm): 85
Width W (mm): 59
Specifications: Operating Temperature: 0 ≧ to 40 ≧
Application: Upper covers of various enclosures
As One Product Number: 64-6781-71
RoHS Directive (10 substances compliance): Compliant
The manufacturer has passed 70,000 open-close tests.

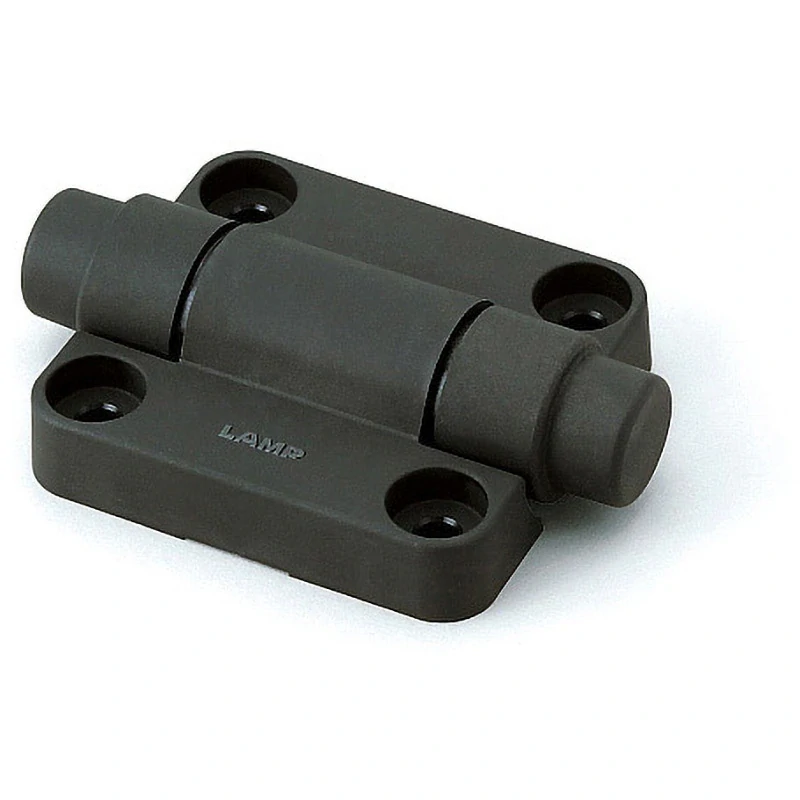

This is a surface-mounted type damper hinge incorporating the Lapcon Damper Hinge Model UDH-16.
Movement in the opposite direction of the damper (when the damper works in the closing direction, opening direction: towards) is also smooth.
When combined with a type without a damper of the same shape, it can be used with the torque of one hinge, allowing it to accommodate a wide range of upper cover sizes.
