RYOBI Damper Hinge HG-JHW16S Type >HG-JHW16S-50

¥3,118

SKU: r22921875eef4 Category:

Description

Description: Quantity: 1 piece
As-One Product Number: 64-6781-72

Product Number: HG-JHW16S-50

Weight (g): 83
Finish: Textured
Material: PBT Resin
Type: Flat Hinge Type

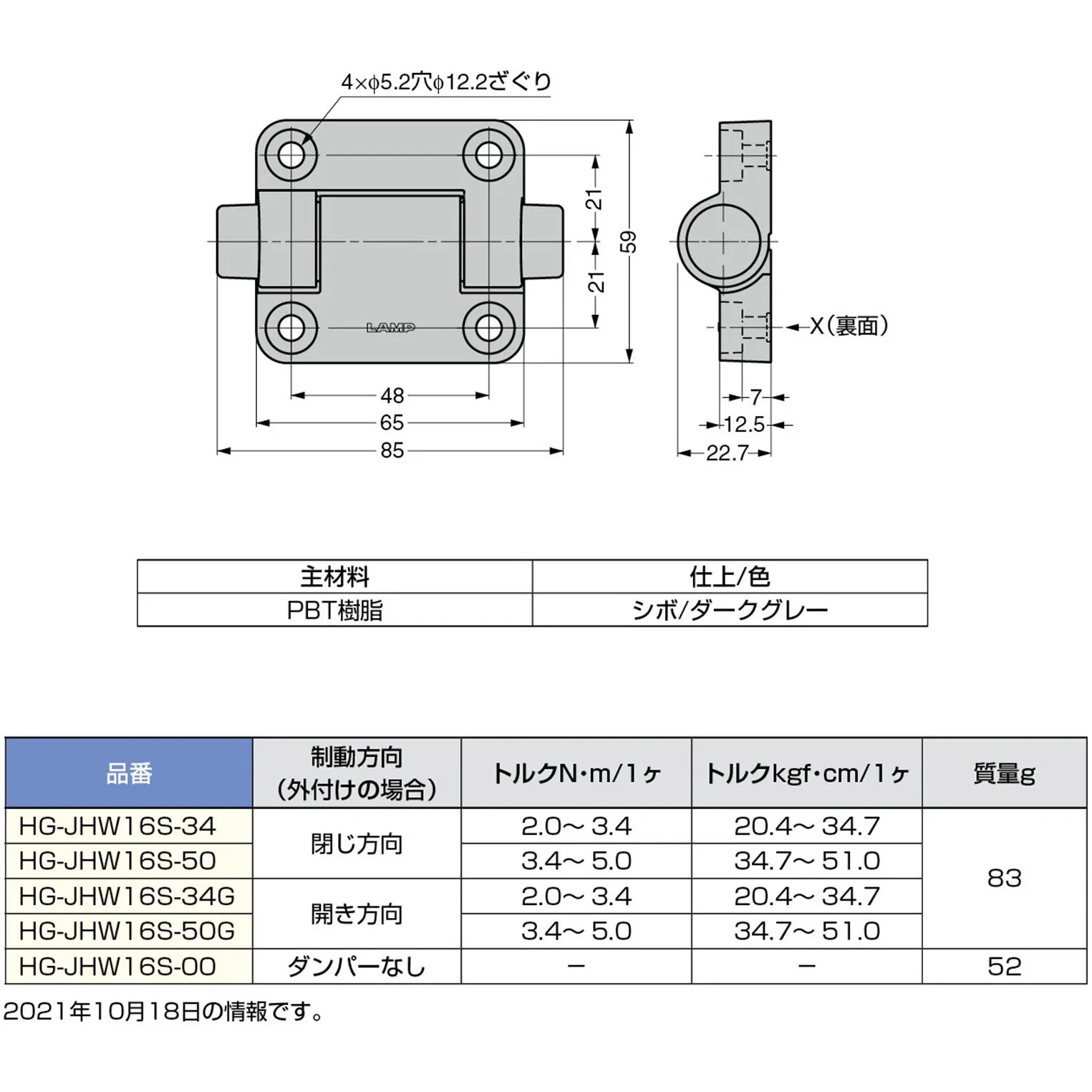

Length L (mm): 85
Width W (mm): 59
Specification: Operating Temperature: 0 ≧ to 40 ≧
Application: Upper covers of various enclosures, etc.
As-One Product Number: 64-6781-72
RoHS Directive (10 substances compliant): Compliant

The manufacturer has passed a durability test of 70,000 open/close cycles.

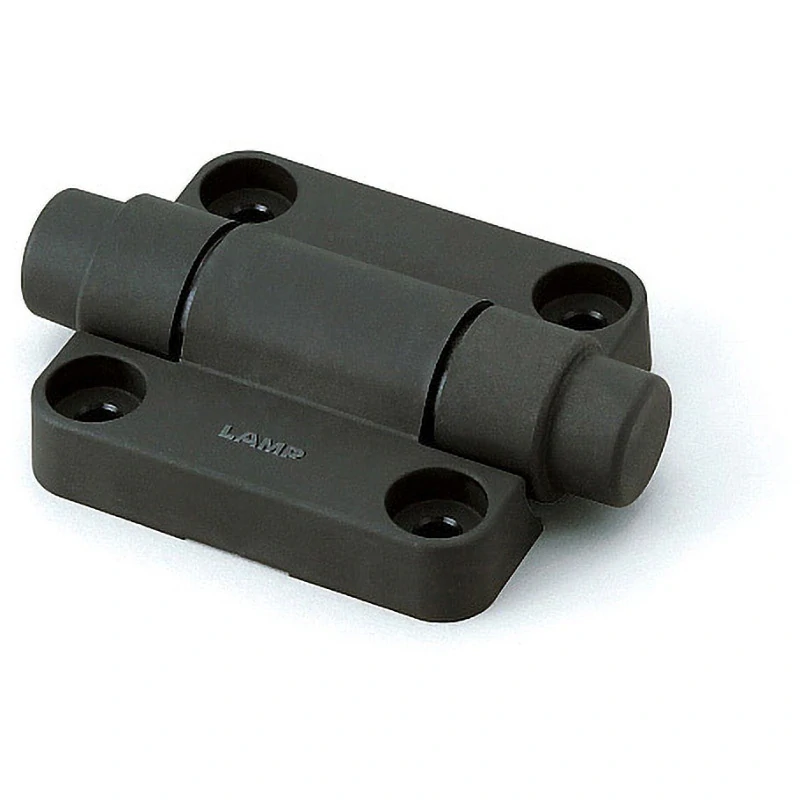

This is a surface-mounted type damper hinge incorporating the Lapcon Damper Hinge UDH-16 type.

The movement in the direction opposite to the damper (if the damper acts in the closing direction, the opening direction: facing) is also smooth.

When combined with the same type without a damper, it can be used with the torque of one hinge, making it compatible with a wide range of upper cover sizes.
