Description
Description: Quantity: 1 piece
As One product number: 64-6781-69
Product number: HG-JHW16S-00
Weight (g): 52
Finish: Textured
Material: PBT Resin
Type: Flat Hinge
Length L (mm): 85
Width W (mm): 59
Specification: Operating temperature: 0 ≧ to 40 ≧
Application: Upper cover of various enclosures, etc.
As One product number: 64-6781-69
RoHS Directive (10 substances compliant): Compliant
Manufacturer has passed 70,000 open and close tests.

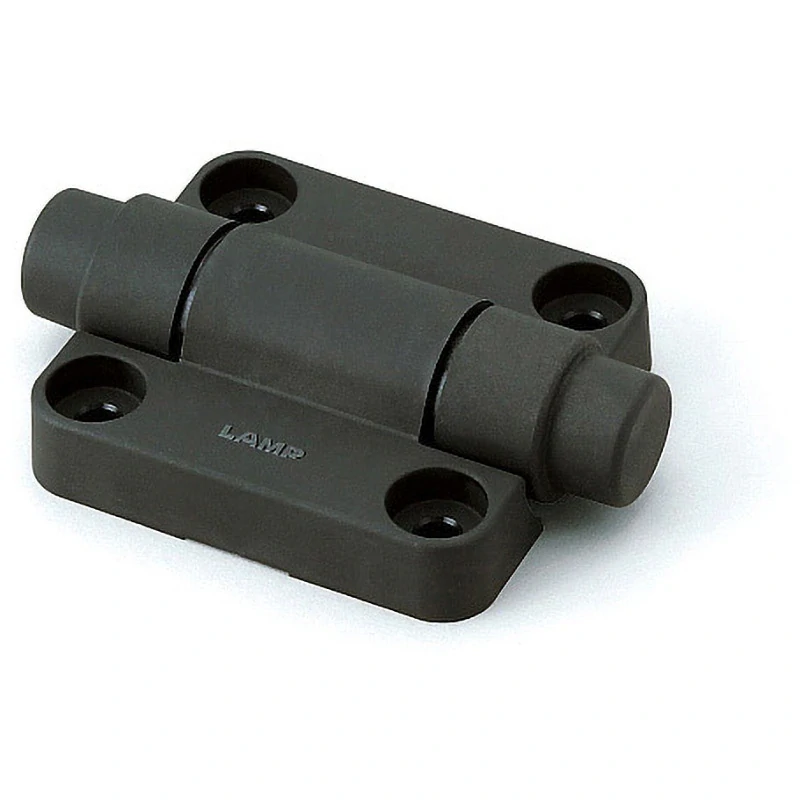

This is a surface-mounted type Damper Hinge incorporating the Rapcon Damper Hinge UDH-16 type.
The movement in the direction opposite to the damper (if the damper works in the closing direction, the opening direction) is also smooth.
When combined with the same type without a damper, it can be used with the torque of one hinge, accommodating a wide range of upper cover sizes.
