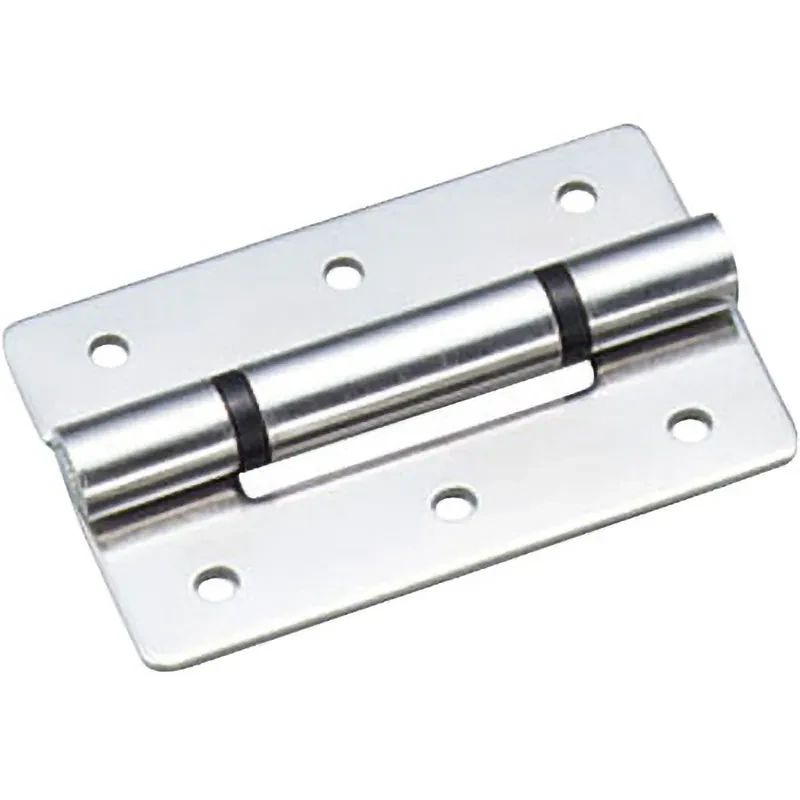

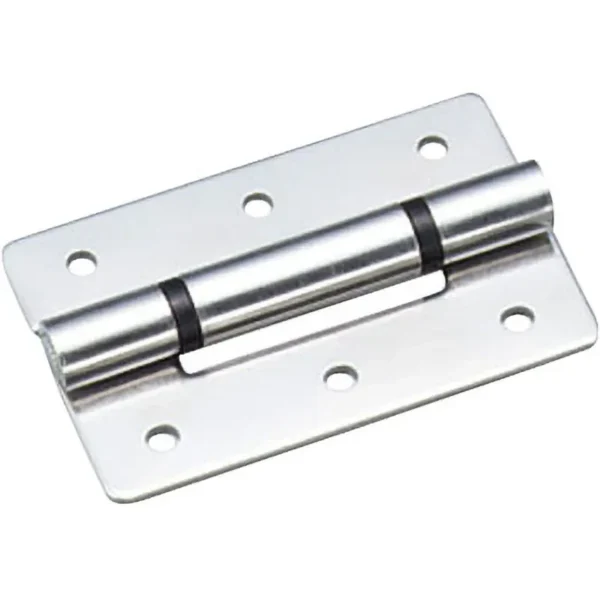

LAMP(Sugatsune) Free-Stop Hinge(for Outdoor) > TH-165-1

¥1,918

SKU: r22894825d5e9 Category:

Description

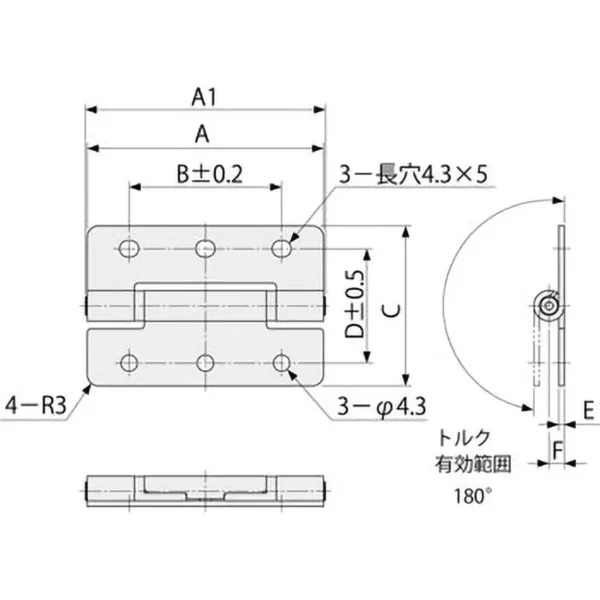

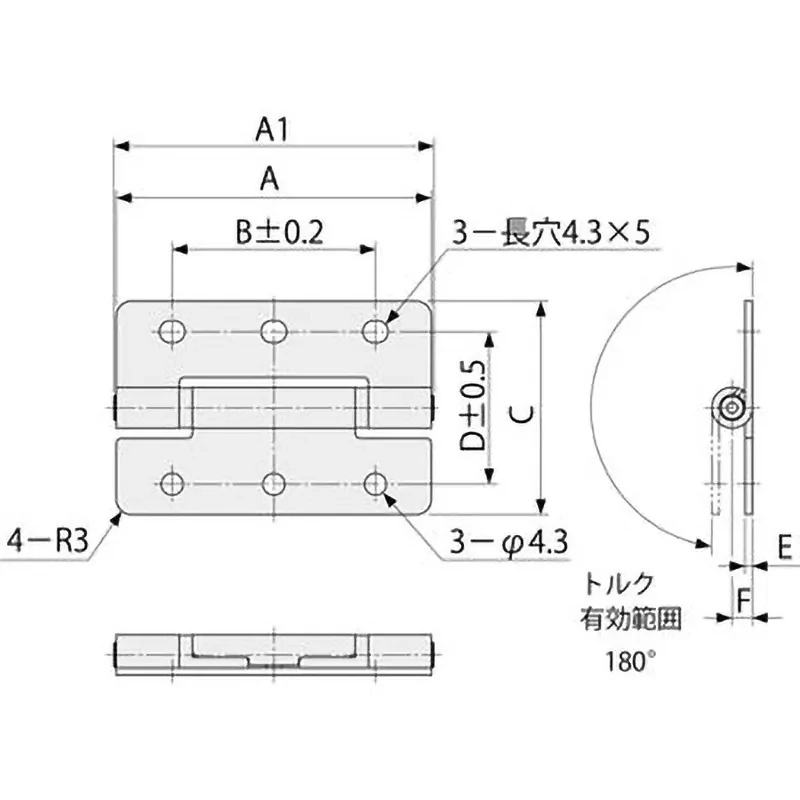

Dimension A (mm): 78
Dimension A1 (mm): 79
Dimension B (mm): 56
Dimension C (mm): 50
Dimension D (mm): 34
Dimension E (mm): t2
Dimension F (mm): 5.5 (+0.6 to -0.2)
Material: (Hinge piece, shaft) SUS304, (Plug) POM
Application: Special vehicles, outdoor enclosures, food machinery equipment, etc.
Operating temperature range (Celsius degrees): +10 to +50
Operating environment: Normal outdoor environment (rural, residential areas, etc.) *Depending on installation environment and years, rust may occur; corrosion resistance is not guaranteed.
Mounting method: Shaft horizontal position
Set torque (N*m): 1.57 (+0.39 to 0), 16 kgf??cm (+4 to 0)
RoHS Directive (compliant with 10 substances): Compliant
Weight (g): 91.5
This is a hinge that can be fixed at any angle. It features excellent corrosion resistance.
