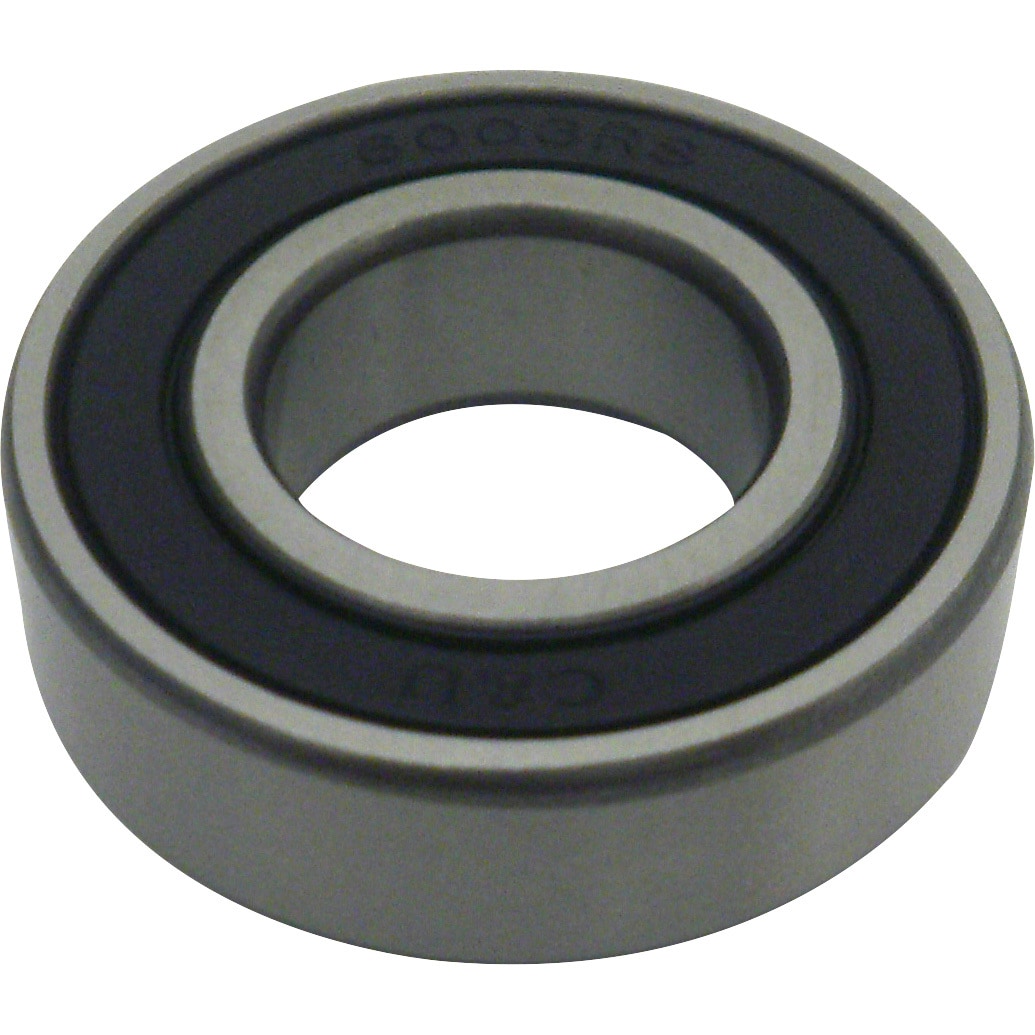

Description
Inner diameter d (mm): 28;
Outer diameter D (mm): 52;
Width B (mm): 12;
Material: (Main body) High carbon chromium bearing steel;
Allowable rotational speed (/min [r.p.m]) Grease lubrication: 8400;
Basic dynamic load rating Cr (N): 12500;
Basic static load rating Cor (N): 7400;
JIS grade: 0;
Shield shape: Contact rubber seal shape on both sides;
Load direction: Radial;
Outer ring type: Flat;
Raceway ring shape: Deep groove ball bearing;
Number of raceway ring rows: Single row;
Rolling element Material: High carbon chromium bearing steel
