Description
Inner diameter d (mm): 20;
Outer diameter D (mm): 42;
Width B (mm): 12;
Material: (Main body) High carbon chromium bearing steel;
Chamfer dimension r (mm): 0.6;
Allowable rotational speed (/min [r.p.m]) Grease lubrication: 11000;
Basic dynamic load rating Cr (N): 9400;
Basic static load rating Cor (N): 5050;
JIS grade: 0;

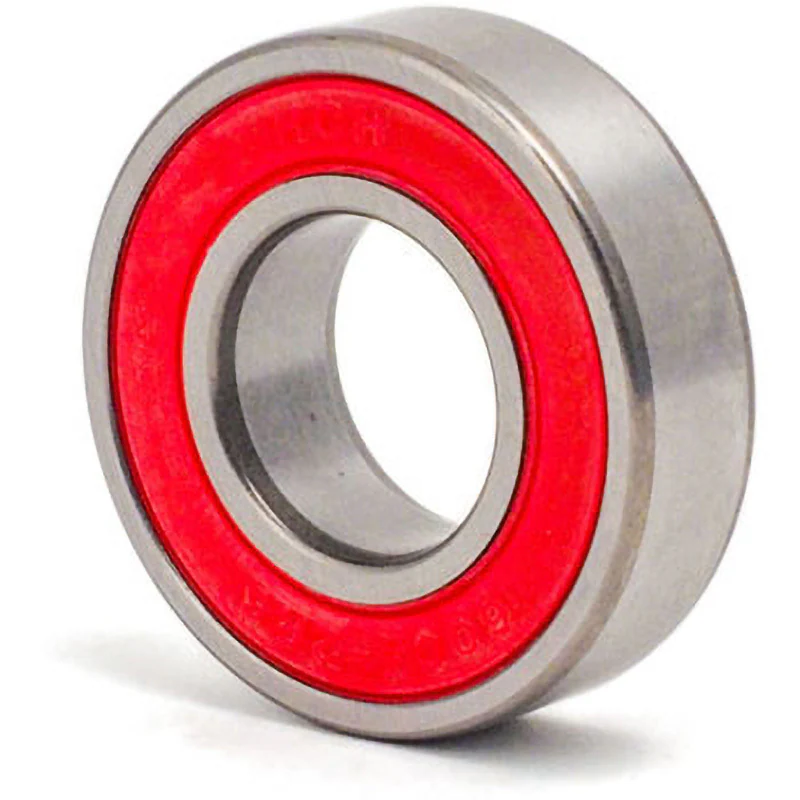

Shield shape: Contact rubber seal shape on both sides;
Load direction: Radial;
Outer ring type: Flat;
Raceway ring shape: Deep groove ball bearing;
Number of raceway ring rows: Single row;
Rolling element Material: High carbon chromium bearing steel;
Bearing series: 6000
