Description
Bolt diameter M12
Material: Steel
Thread pitch (mm): 1.75
Load capacity N (kgf): 4903.3 (500)
Surface treatment: Unichrome plating
Bolt length L (mm): 120
Usage: For the legs of various machines, conveyors, worktables, etc.
Weight (g): 180
Overall height (mm): 143
Base diameter (mm): 55

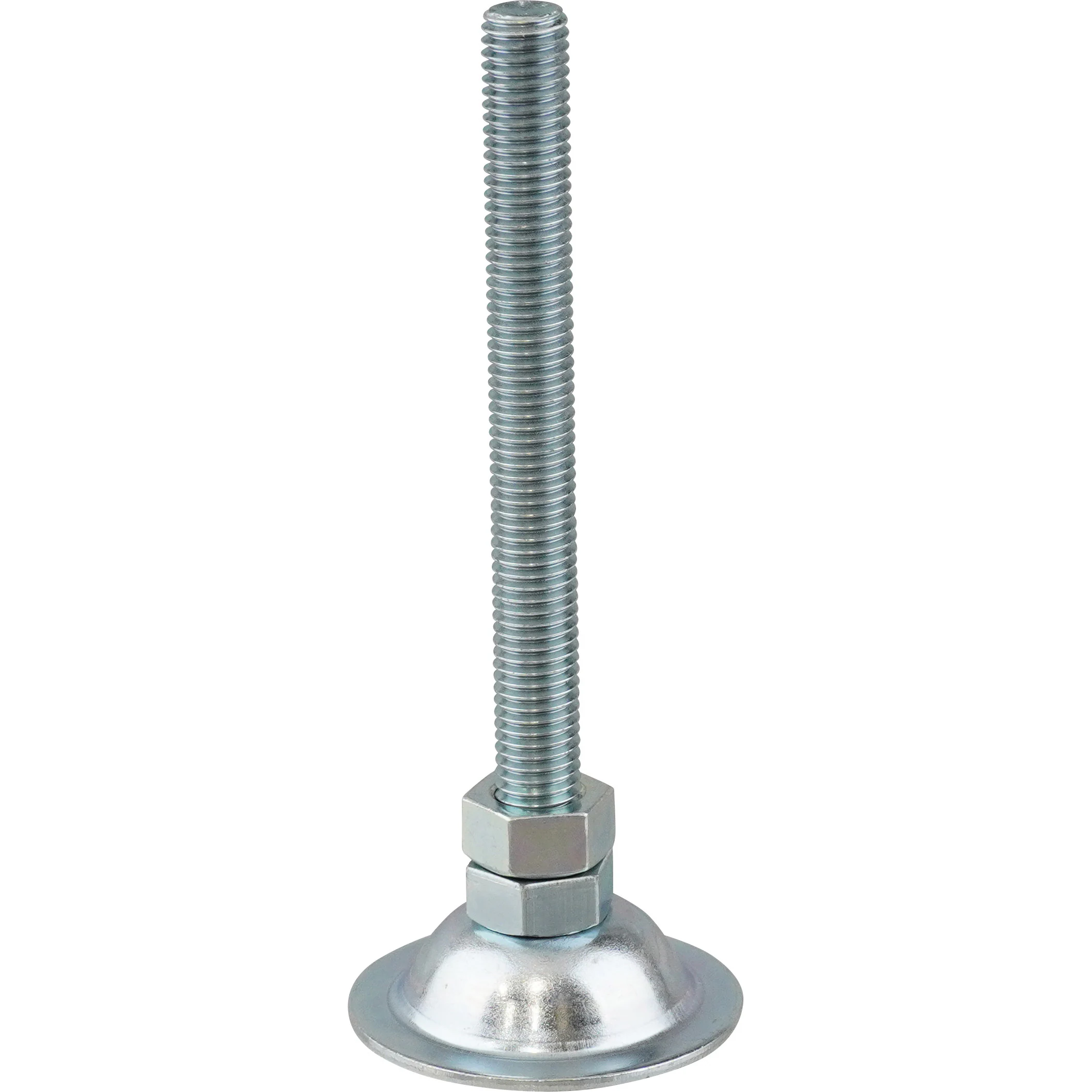

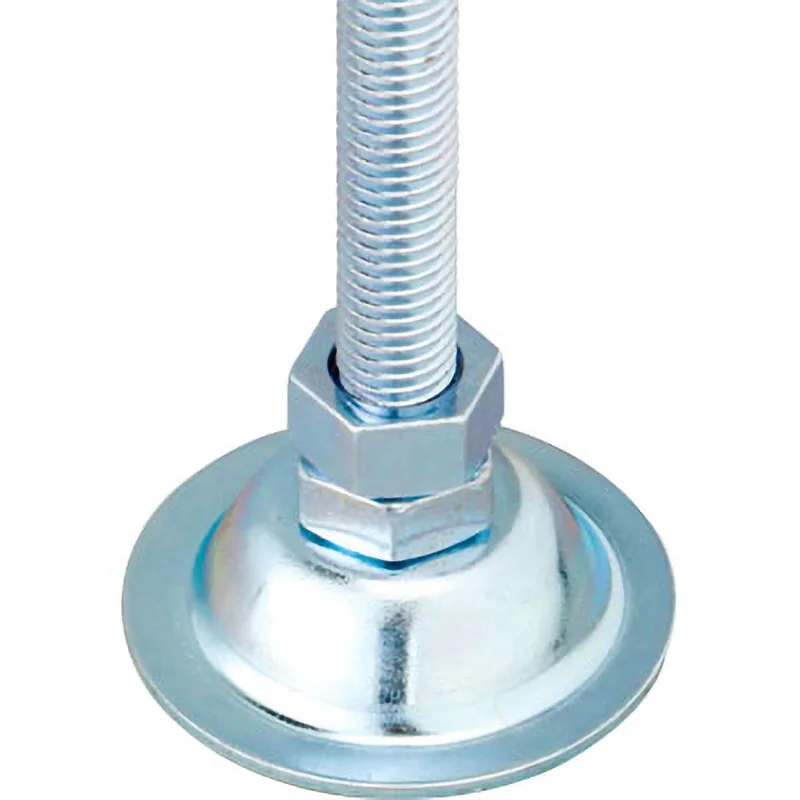

This is a standard adjustable bolt.
