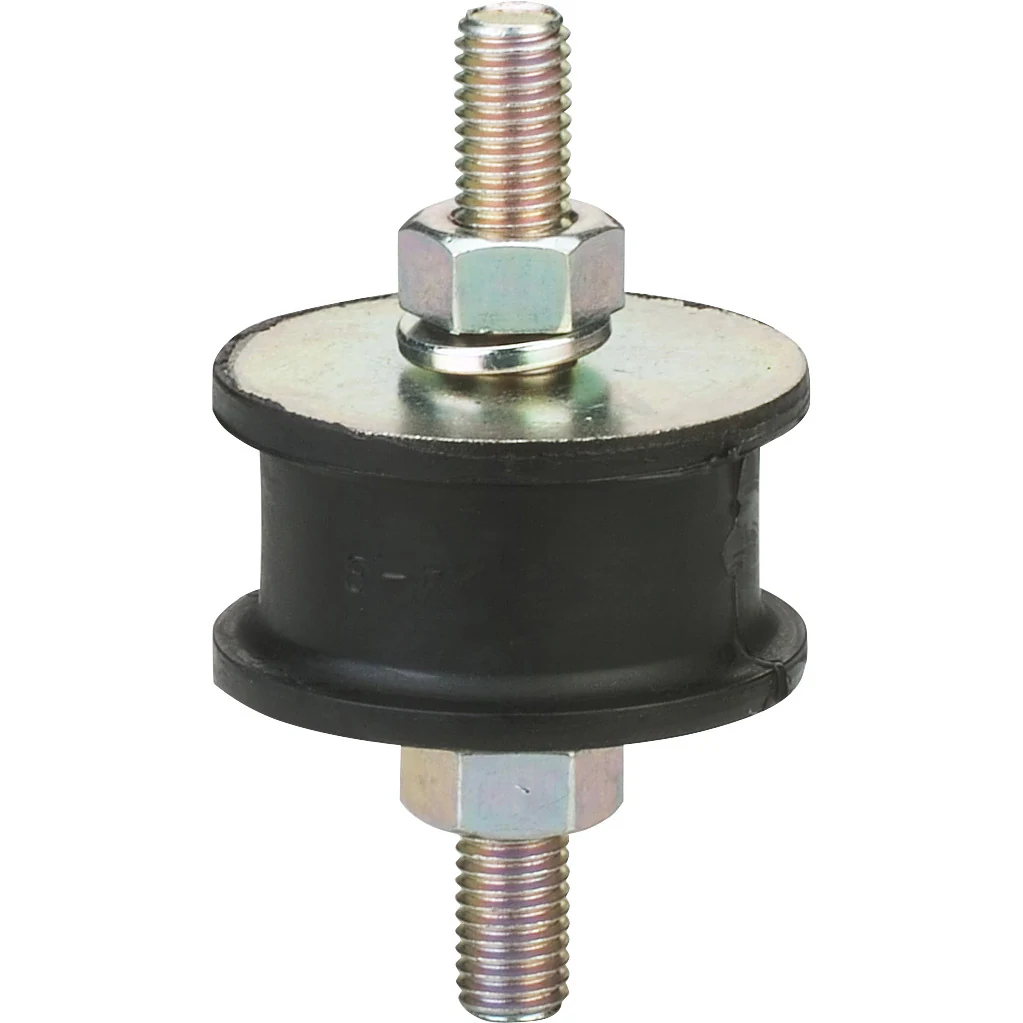

Description

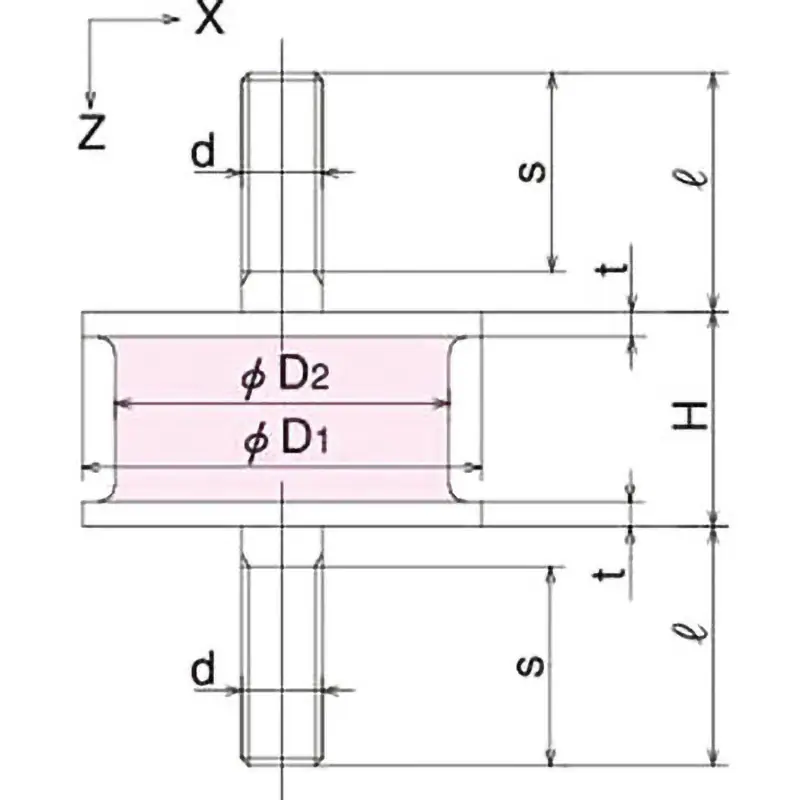

Dimension D1 (mm): 90
Dimension D2 (mm): 80
Dimension l (mm): 45
Dimension s (mm): 45
Dimension t (mm): 4.5
Height H (mm): 76
Bolt Diameter d M12
Application Wide range including pumps, blowers, engines, generators, electric motors, compressors, etc.
Accessories 2 hex nuts, 2 spring washers
Shape Round
Thread pitch (mm): –
Connection thread M12
Connection method Double-ended male thread
Support load (N) (Z direction) 2900
Stiffness ratio (Kx/Kz) 0.17
Permissible load (N) 5900 (Z direction) / 1200 (X direction)
Material (Bolt) Steel
Permissible load (N [kgf]) (Z direction) 5900 [600] (X direction) 1200 [120]
Z direction spring constant Kz (N/mm [kgf/cm]) 520
Material (Vibration Isolation Rubber) Natural Rubber
Rubber hardness 60
RoHS Directive (10 substances compliance) Compliant
Applicable usage Vibration isolation
The structure is simple, and installation is easy.
It is compact and can support large loads due to its relatively high spring constant.
Depending on the installation method, it can be used in compression direction, shear direction, and also in inclined directions, providing wide applicability.
