Description
Quantity: 1 piece
Material Main Body: Polyacetal (POM), Shaft: Zinc Alloy (ZDC)
Part Number: BP-879-1-R-10K
Material Main Body: Polyacetal (POM), Shaft: Zinc Alloy (ZDC)
Takigen Code: 11826
Usage: Bus train hat rack, service box
Specification: Rated Load Torque: 98cN*m
Mass (g): 30

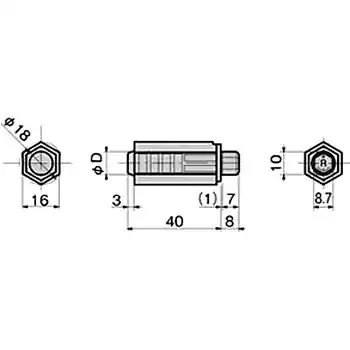

Dimension D (mm): 9
A moderate damper characteristic can be obtained within a rotation range of 180 degrees (in the direction of the arrow). (Rotation in the opposite direction of the arrow is load-free)
Compact hexagonal shape allows for easy setting on doors.
Damper Characteristic: Closing Time 10 plus or minus 5 seconds
Durability Test: 100,000 times (at room temperature) with the above closing time being more than 2.5 seconds
