Description
Quantity: 1 piece
Material Body: Polyacetal (POM), Shaft: Zinc Alloy (ZDC)
Part Number: BP-879-1-L-10K
Material Body: Polyacetal (POM), Shaft: Zinc Alloy (ZDC)
Takigen Code: 11825
Application: Bus train hat rack, service box
Specifications: Rated Load Torque: 98 cN*m
Weight (g): 30

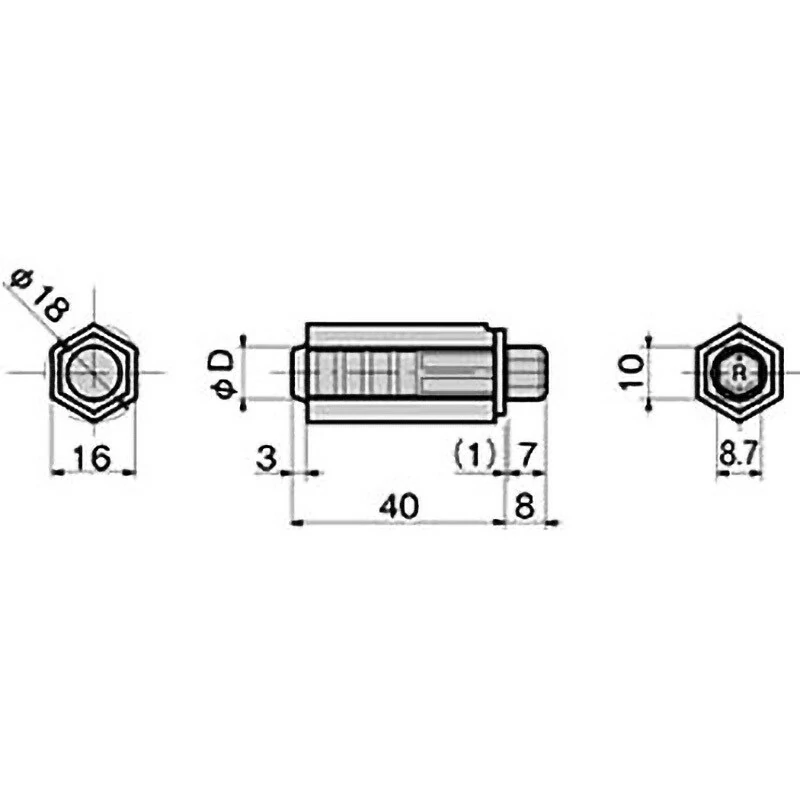

Dimension D (mm): 9
Moderate damper characteristics can be obtained within a rotation range of 180 degrees (arrow direction). (Rotation in the opposite direction of the arrow is without load)
Compact hexagonal shape allows for easy setting to the door.
Damper Characteristics: Closing time 10 plus or minus 5 seconds
Durability Test: 100,000 times (at room temperature) with the above closing time of 2.5 seconds or more
