Description
Quantity
Material (main body)
Material (shaft)
Part number
Material (main body)
Takigen code
Application
Weight (g)

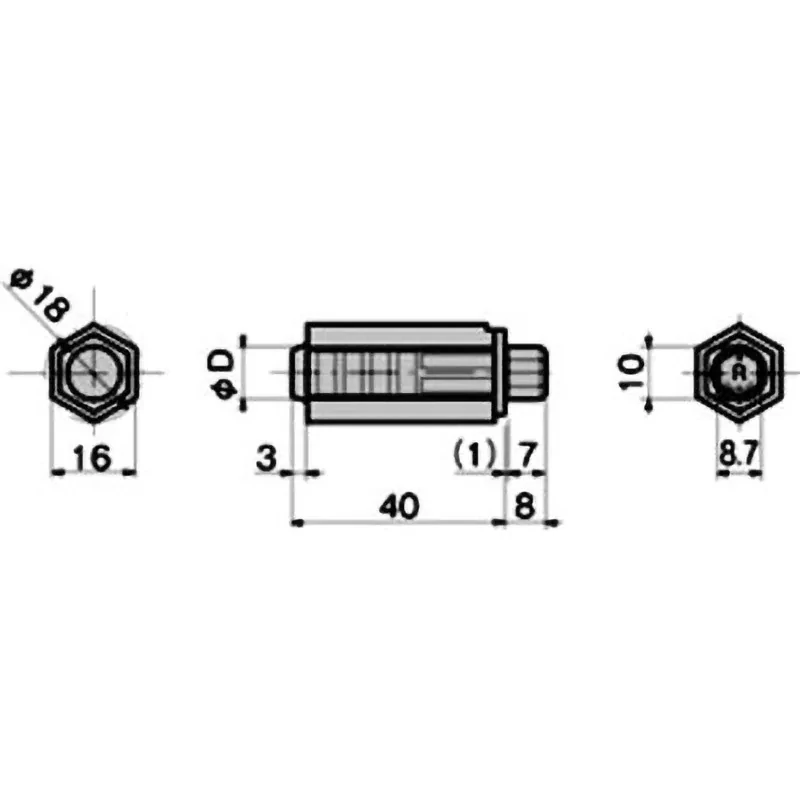

Dimension D (mm)
Material (shaft)
Rated torque (cN*m)
Within a 180-degree rotation range (arrow direction), appropriate damper characteristics are achieved. Rotation in the opposite direction of the arrow is unloaded.

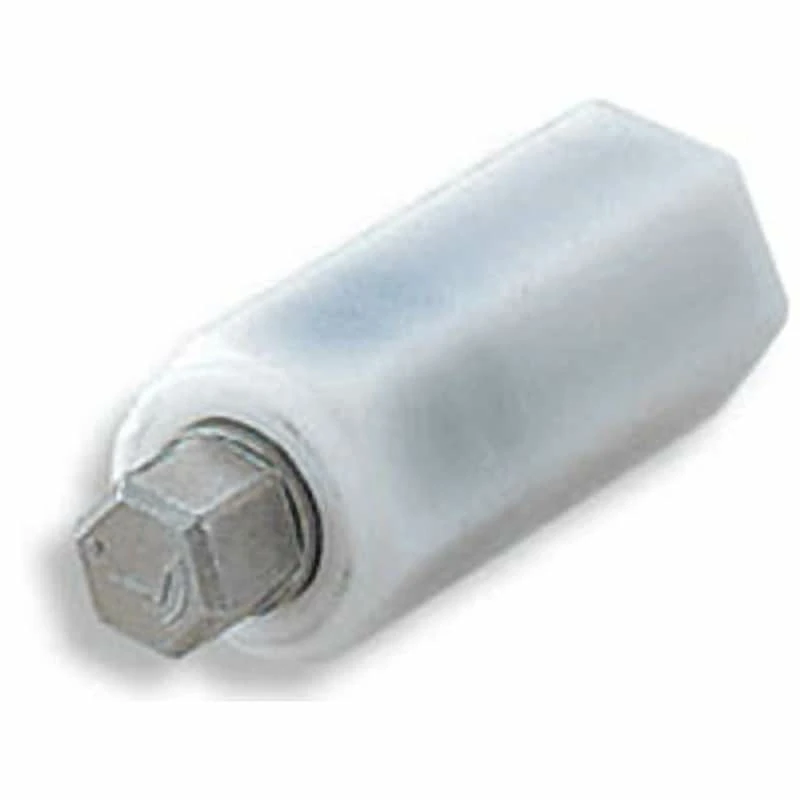

Compact hexagonal shape allows easy setup on doors.
Damper characteristics: Closing time 10 plus or minus 5 seconds (see Figure 1)
Endurance test of 100,000 cycles (room temperature) maintains the above closing time of 2.5 seconds or more
