Description
Quantity: 1 piece
Material (main body): Zinc alloy (ZDC)
Material (shaft): Zinc alloy (ZDC)
Part number: B-879-1-R-20K
Material (main body): Zinc alloy (ZDC)
Takigen code: 12741
Application: Bus and train hat racks, service boxes
Weight (g): 40

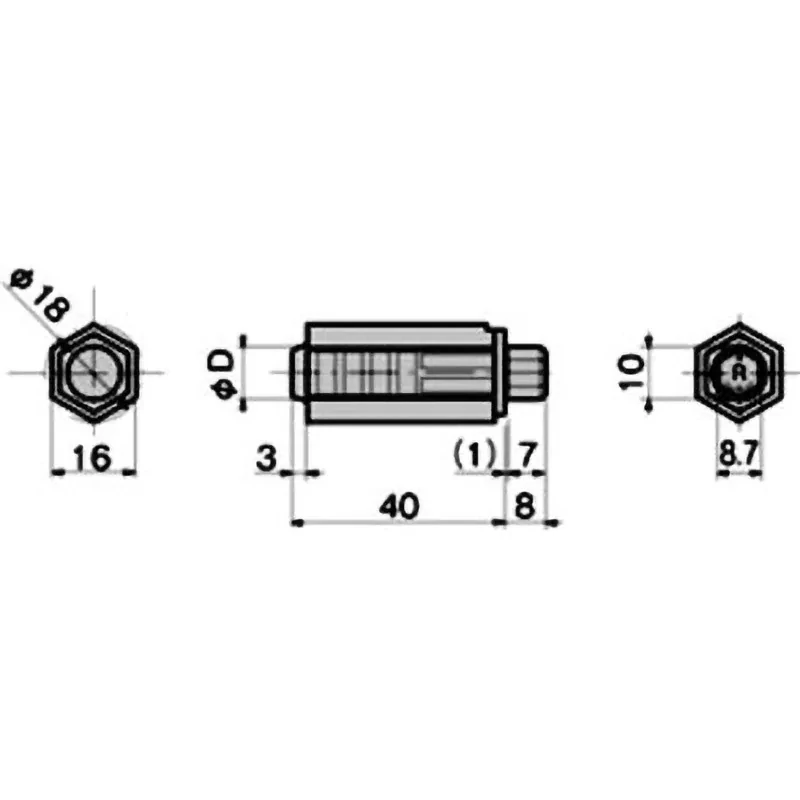

Dimension D (mm): 10
Material (shaft): Zinc alloy (ZDC)
Rated torque (cN*m): 196
Within a rotation range of 180 degrees (arrow direction), moderate damper characteristics are achieved. Rotation in the opposite arrow direction is unloaded.

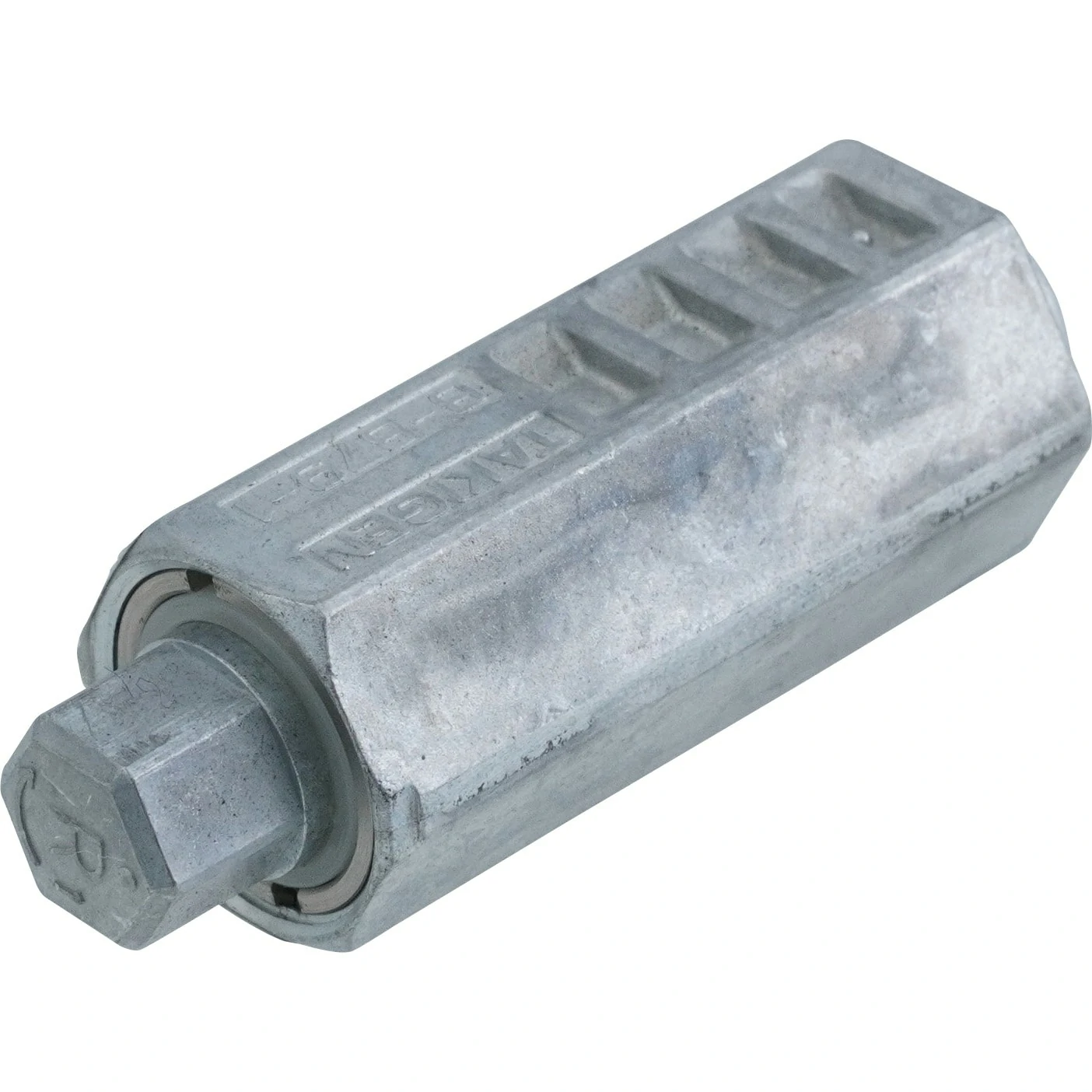

Compact hexagonal shape allows easy setting onto the door.
Damping characteristics: Closure time of 10 plus or minus 5 seconds (see Figure 1)
Durability test of 100,000 cycles (at room temperature) with a closure time of at least 2.5 seconds
