Description

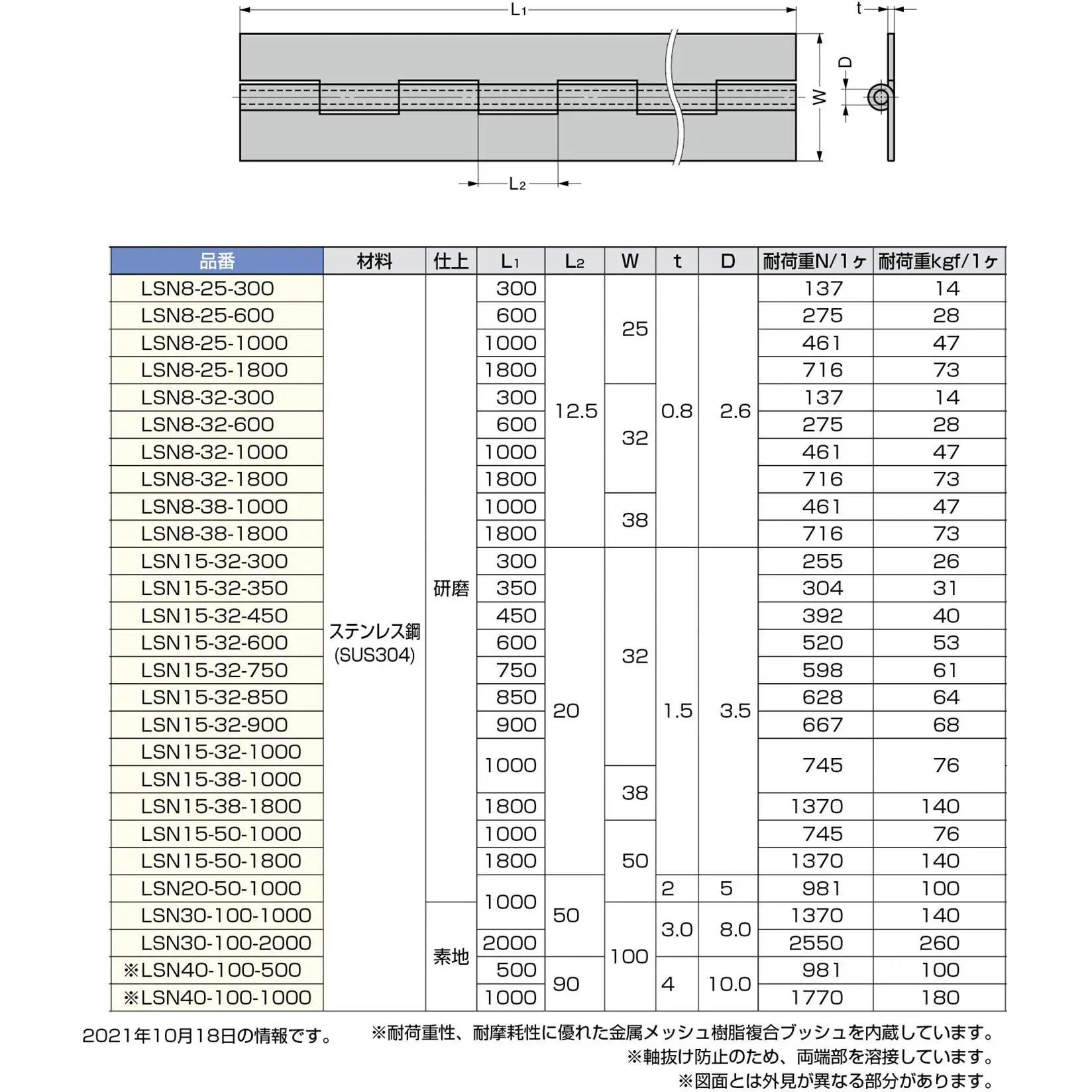

Dimension t (mm): 1.5
Dimension W (mm): 32
Load capacity (N): 520

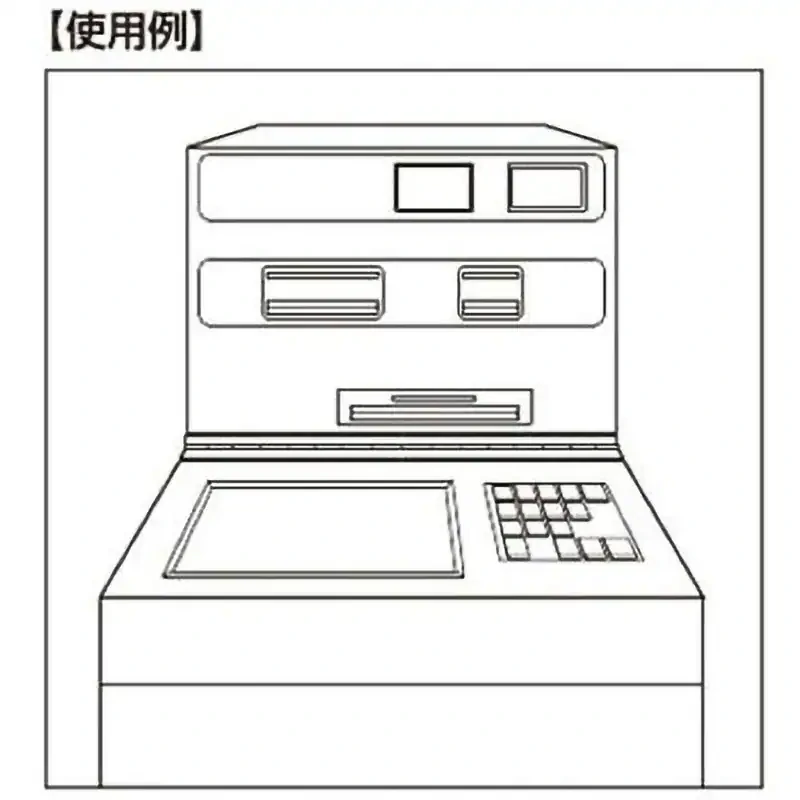

Usage: ATM machines, game machines, control panels, etc.
Material: Stainless Steel (SUS304)

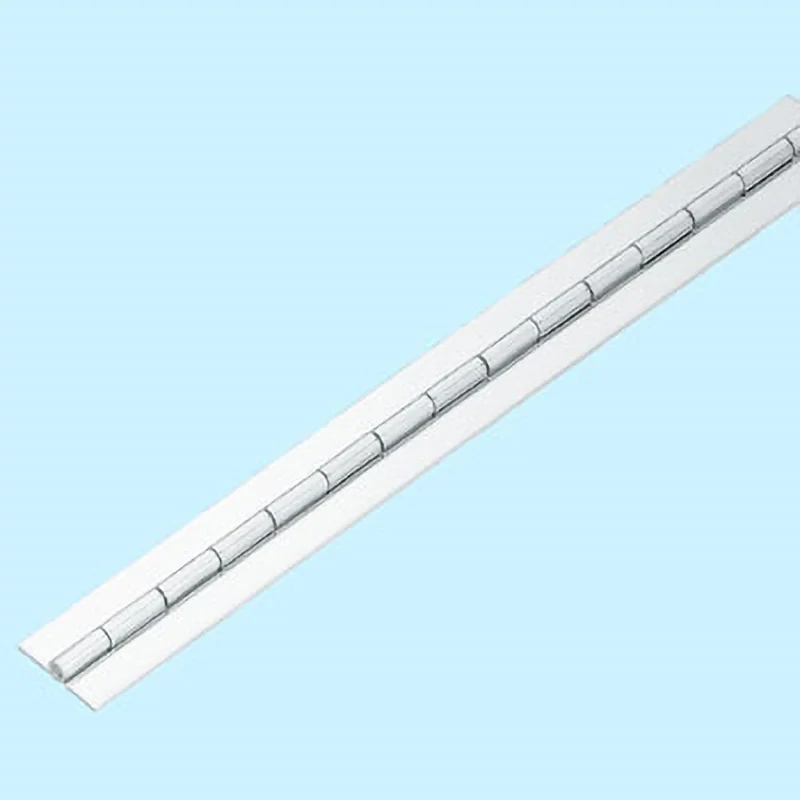

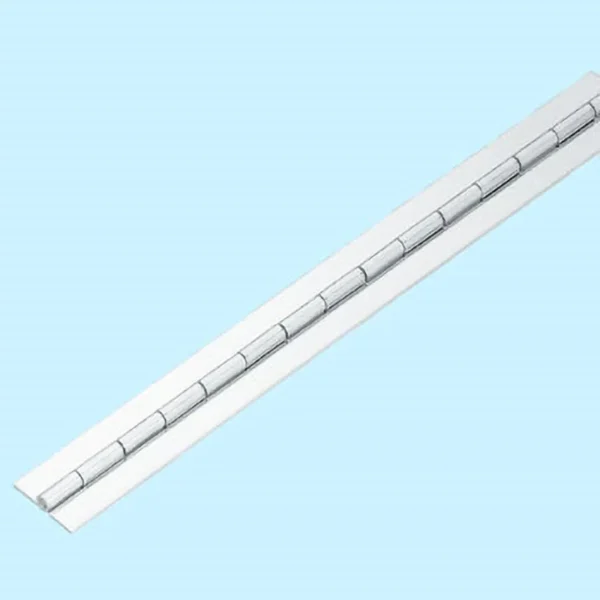

Type: Long Hinge
Dimension L1 (mm): 600
Dimension D (mm): 3.5
Dimension L2 (mm): 20
Finish: Polished
RoHS Directive (10 substances compliant): Compliant
LSN40-100-500 and LSN40-100-1000 are equipped with metal mesh resin composite bushes that have excellent wear resistance. To prevent shaft withdrawal, caps are welded at both ends.
LSN30-100-1000 and LSN30-100-2000 have the shaft welded at one end to prevent shaft withdrawal.
