Description

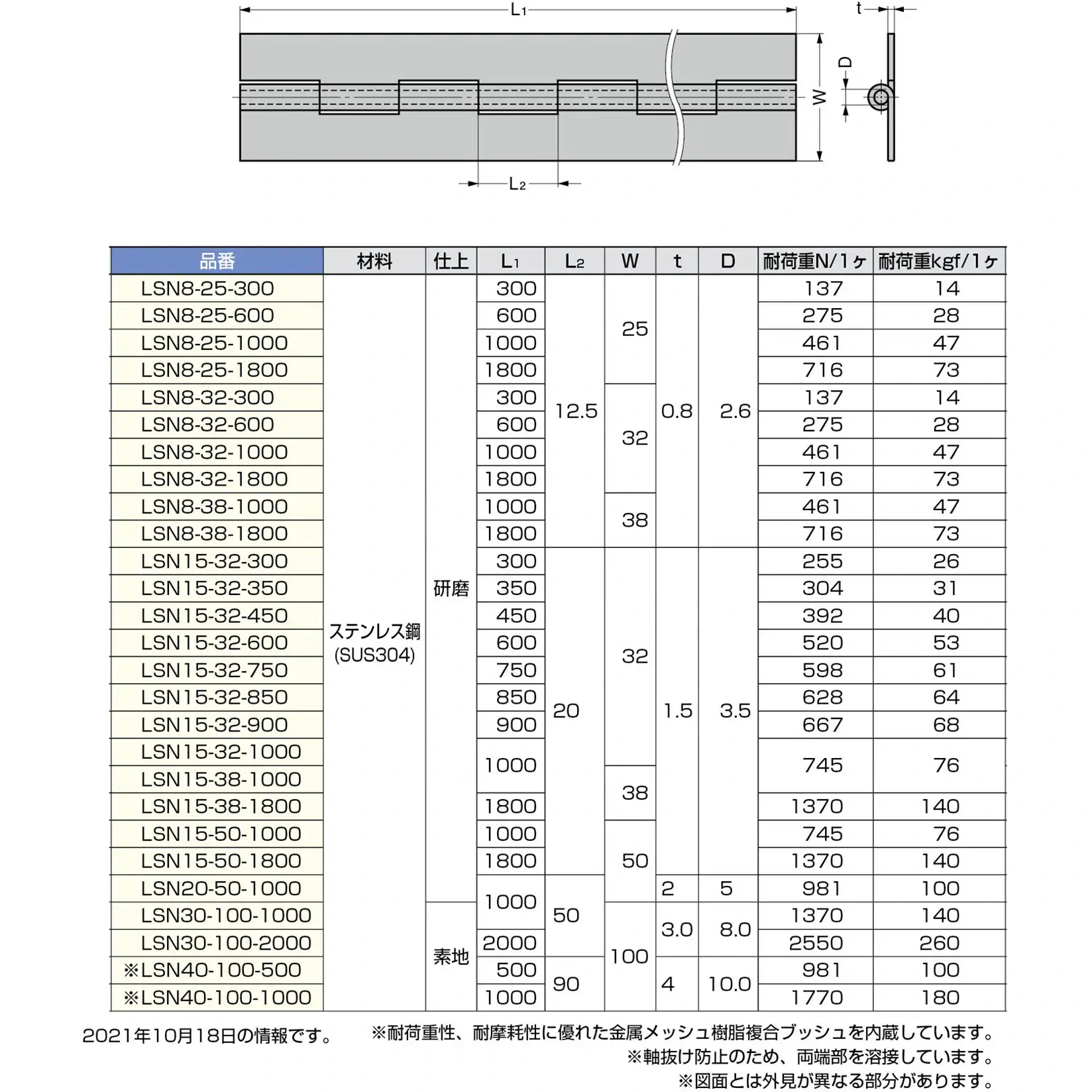

Dimension t (mm): 0.8
Dimension W (mm): 25
Load Capacity (N): 716

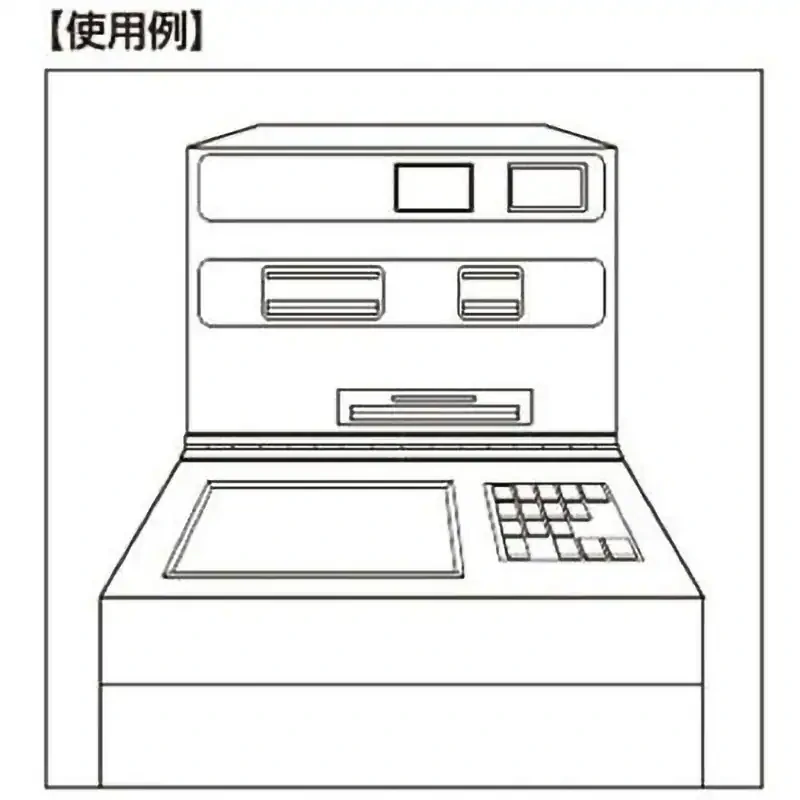

Usage: Bank ATMs, gaming machines, control panels, etc.
Material: Stainless Steel (SUS304)

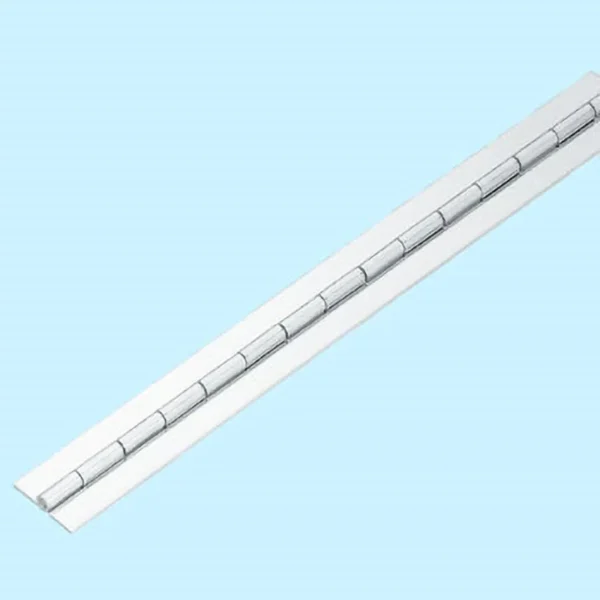

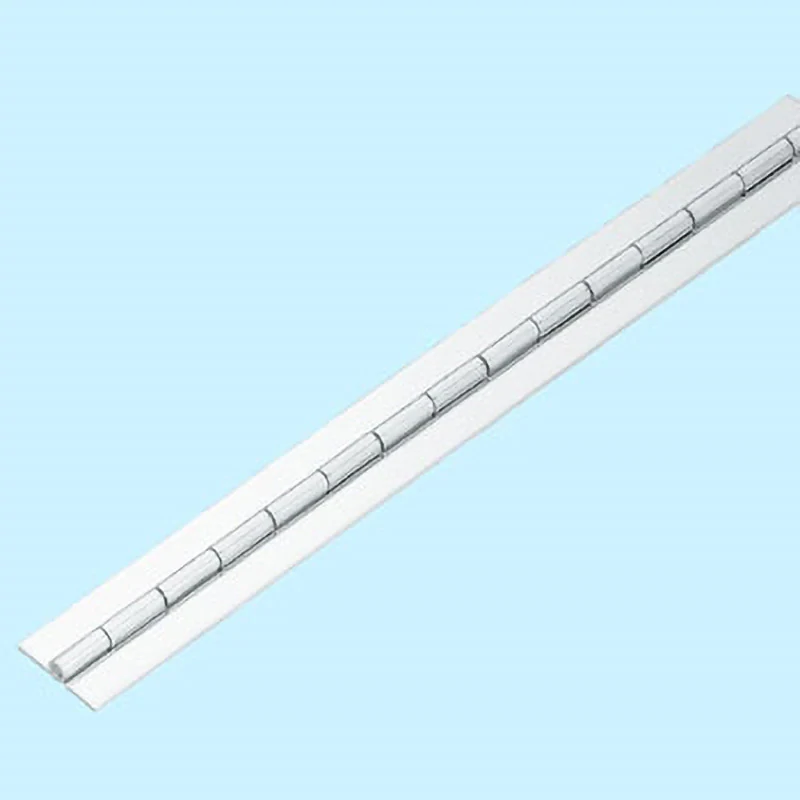

Type: Long Hinge
Dimension L1 (mm): 1800
Dimension D (mm): 2.6
Dimension L2 (mm): 12.5
Finish: Polished
RoHS Directive (10 substances compliance): Compliant
LSN40-100-500 and LSN40-100-1000 are equipped with a metal mesh resin composite bush that has excellent wear resistance. To prevent shaft disengagement, caps are welded at both ends.
LSN30-100-1000 and LSN30-100-2000 have the shaft welded at one end to prevent shaft disengagement.
