Description
Quantity: 1 piece
Hole Shape: Square (4-sided) 8mm
Item Number: 204-0103
Hole Shape: Square (4-sided) 8mm
Tip Shape (Key): Concave
Material: Zinc Alloy
Shape (Key): B

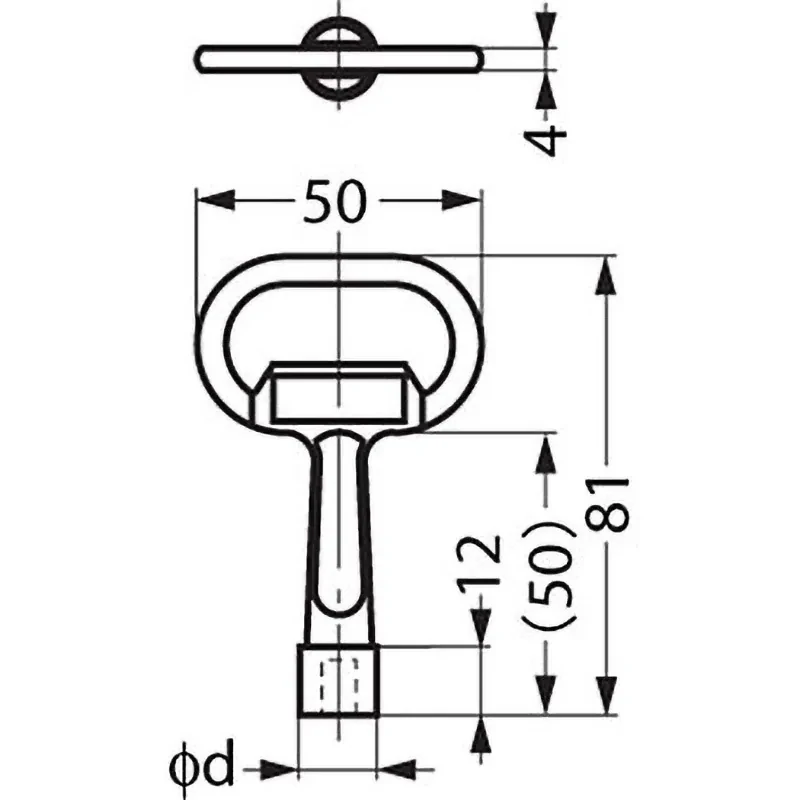

Dimension d (mm): 14.2
Finish: Bare
This is a cylinder lock used for swing handle profile cylinder types.
There are two types of locking: normal locking where the key can be removed when locked and unlocked, and clip-in locking where the key can only be removed when locked. (All insert types use clip-in locking)
It comes with a dustproof shutter (Stainless Steel) to protect the keyhole from dust.
There are 240 variations of different keys for the cylinder lock type, and key numbers can be specified. A master key function can also be produced on a made-to-order basis.
The cylinder lock type comes with 2 keys.
There is also a polyamide plug (with catch for closed position) to cover the hole on the handle side when the cylinder is not in use.
