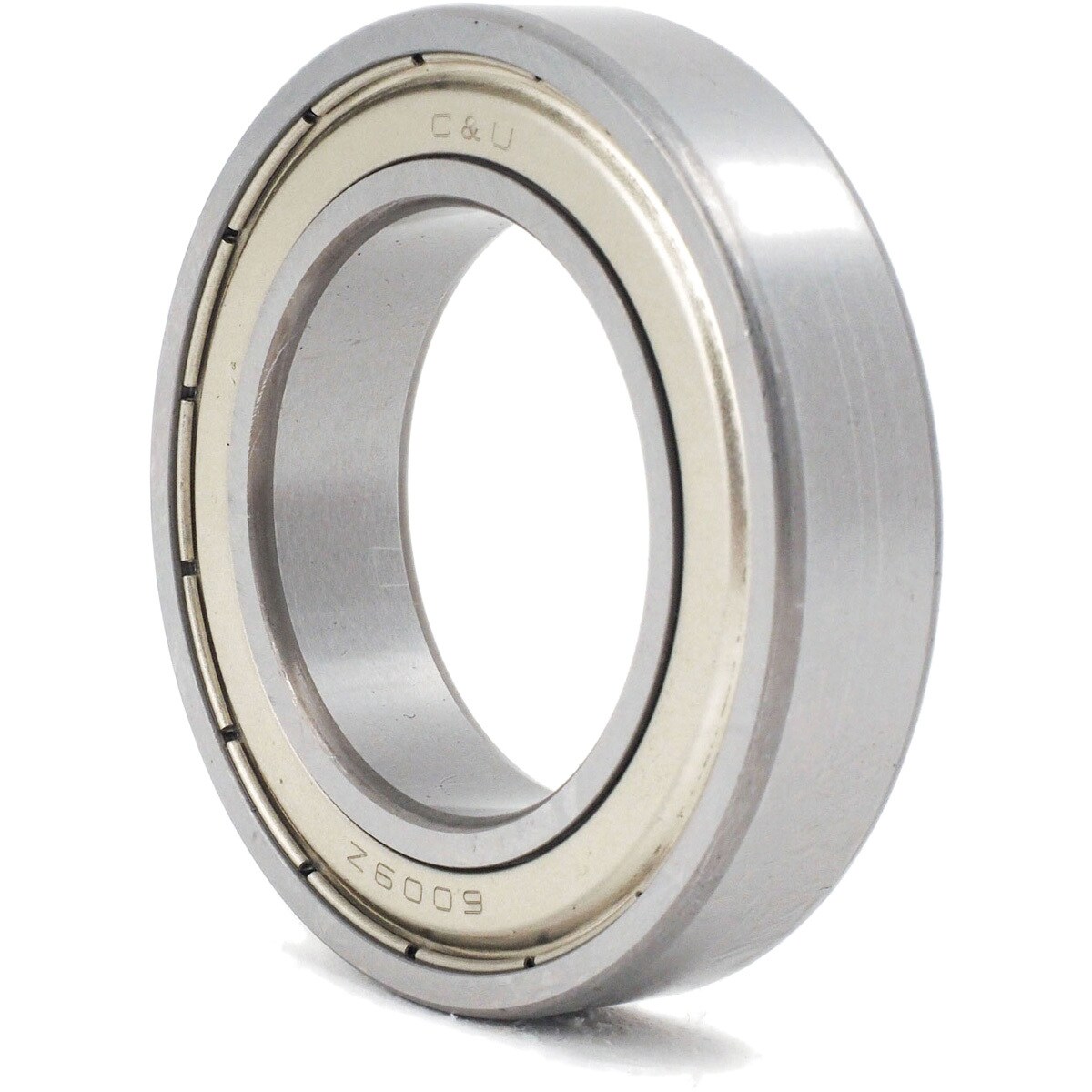

Description
Width B (mm): 16;
Outer diameter D (mm): 75;
Inner diameter d (mm): 45;
Chamfer dimension r (mm): 1.00;
Shield shape: Steel plate shield shape on both sides;
Raceway ring shape: Deep groove ball bearing;
Outer ring type: Flat;
Number of raceway ring rows: Single row;
Allowable rotational speed (/min [r.p.m]) Grease lubrication: 8700;
Mass (kg): 0.264;
Material (main body): High carbon chromium bearing steel;
Allowable rotational speed (/min [r.p.m]) Oil lubrication: 11000;
Basic dynamic load rating Cr (N): 18900;
Basic static load rating Cor (N): 14500;
JIS grade: 0;
Load direction: Radial;
Rolling element material: GCr15;
Bearing series: 6000
