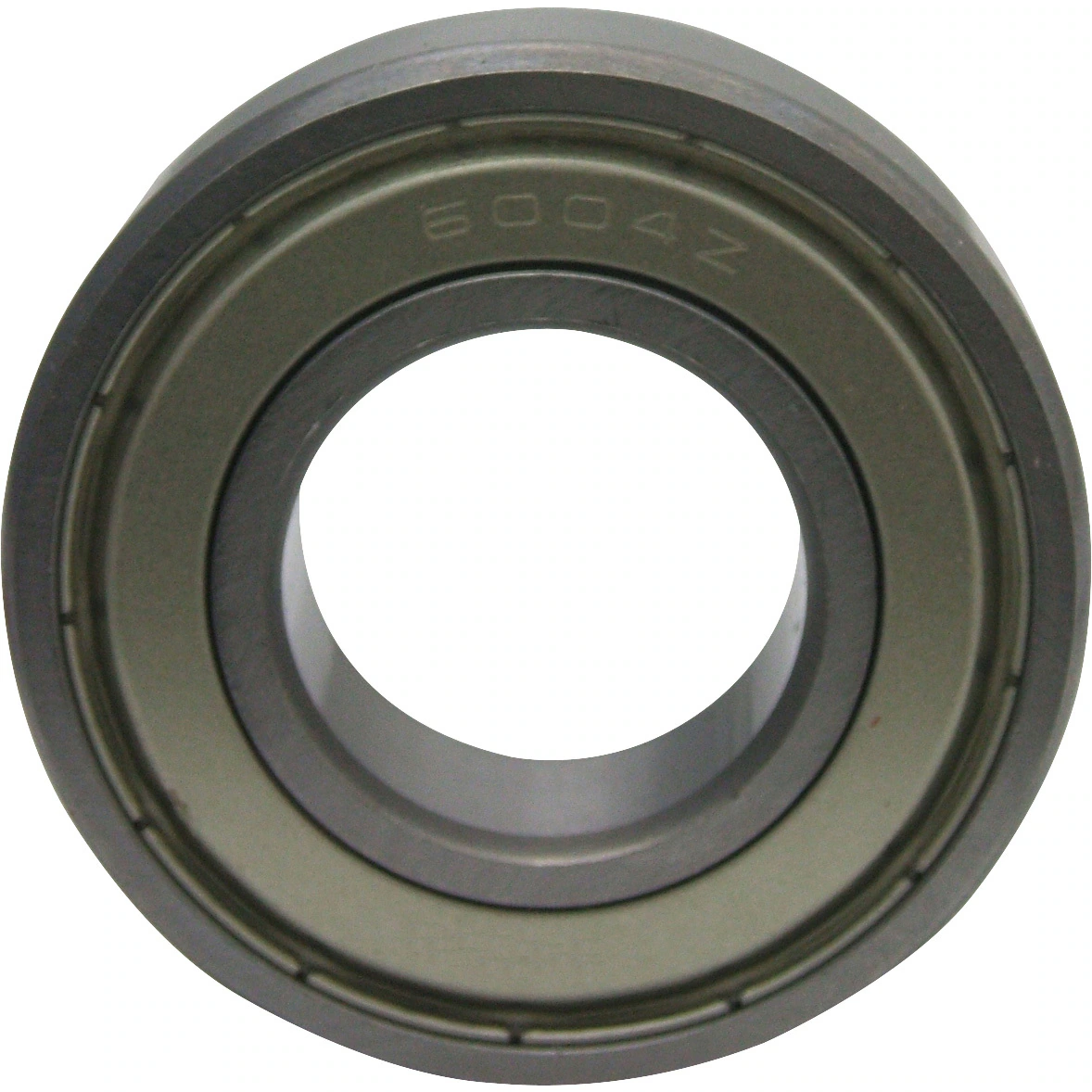

Description
Width B (mm): 12;
Outer diameter D (mm): 42;
Inner diameter d (mm): 20;
Chamfer dimension r (mm): 0.60;
Shield shape: Steel plate shield shape on both sides;
Raceway ring shape: Deep groove ball bearing;
Outer ring type: Flat;
Number of raceway ring rows: Single row;
Allowable rotational speed (/min [r.p.m]) Grease lubrication: 18000;
Material (main body): High carbon chromium bearing steel;
Allowable rotational speed (/min [r.p.m]) Oil lubrication: 21000;
Basic dynamic load rating Cr (N): 9950;
Basic static load rating Cor (N): 5050;
JIS grade: G10;
Load direction: Radial;
Rolling element material: GCr15;
Bearing series: 6000
