Description
Dimension A (mm): 133
Dimension B (mm): 87
Dimension C (mm): (Compressed) 70, (Extended) 500
Dimension D (mm): When connecting 2 pieces (Compressed) 145, (Extended) 1000
Dimension E (mm): When connecting 3 pieces (Compressed) 220, (Extended) 1300
Material: Silicone rubber (Q)
Color: Orange
Mass (g): 330
RoHS Directive (10 substances compliant): Compliant

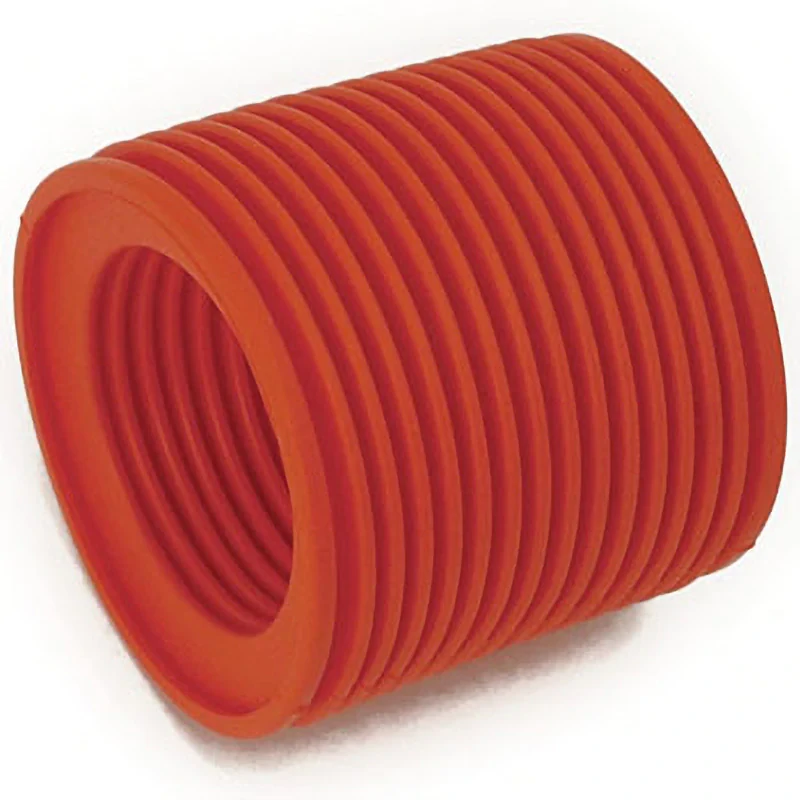

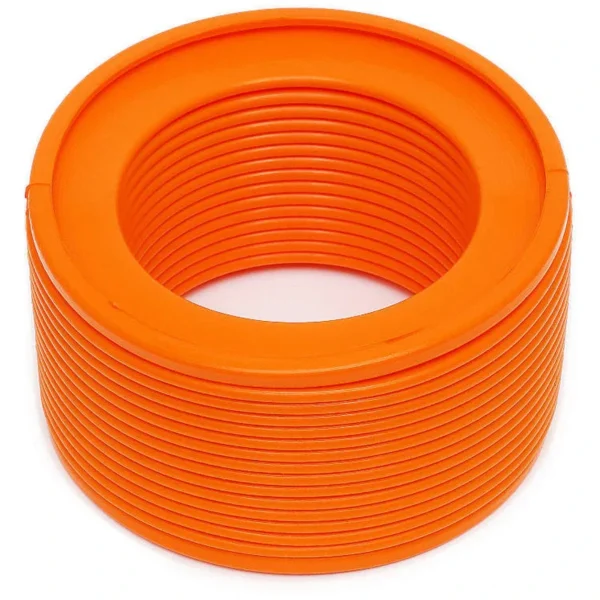

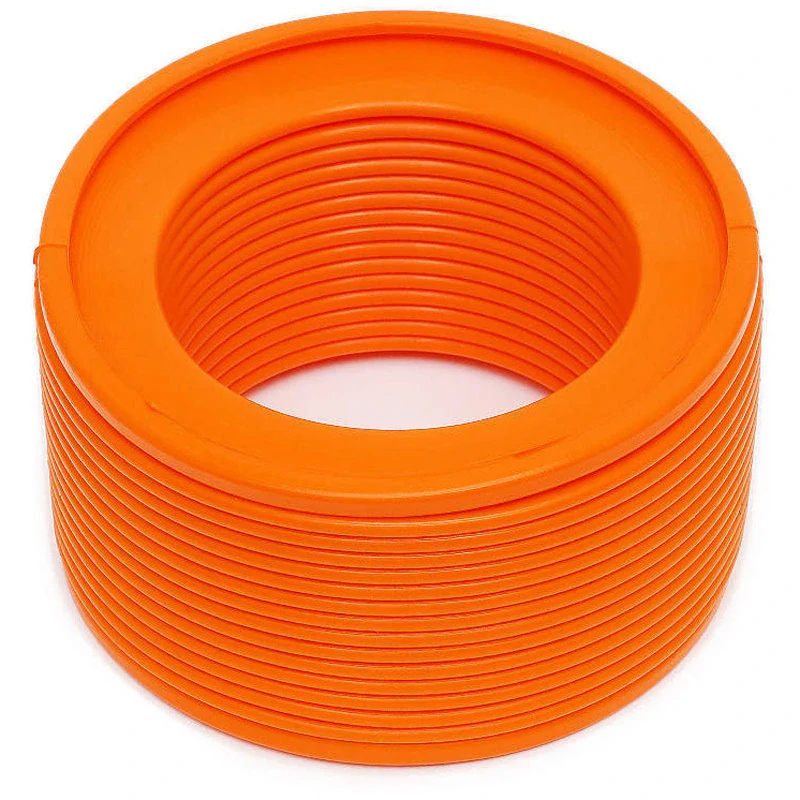

Used for linear motion devices and cable protection, among other applications.
Made of silicone rubber, it exhibits excellent oil resistance and heat resistance. The heat resistance temperature is approximately 200??C.
Using a dedicated joint allows for connecting multiple bellows.
The hole in the center of the cap can be enlarged according to the intended use (please do this yourself).
The durability extension cycle is approximately 200,000 times (reference value), ensuring long service life.
Custom orders with different materials, such as ethylene-propylene rubber or nitrile rubber, are also available.
