Description

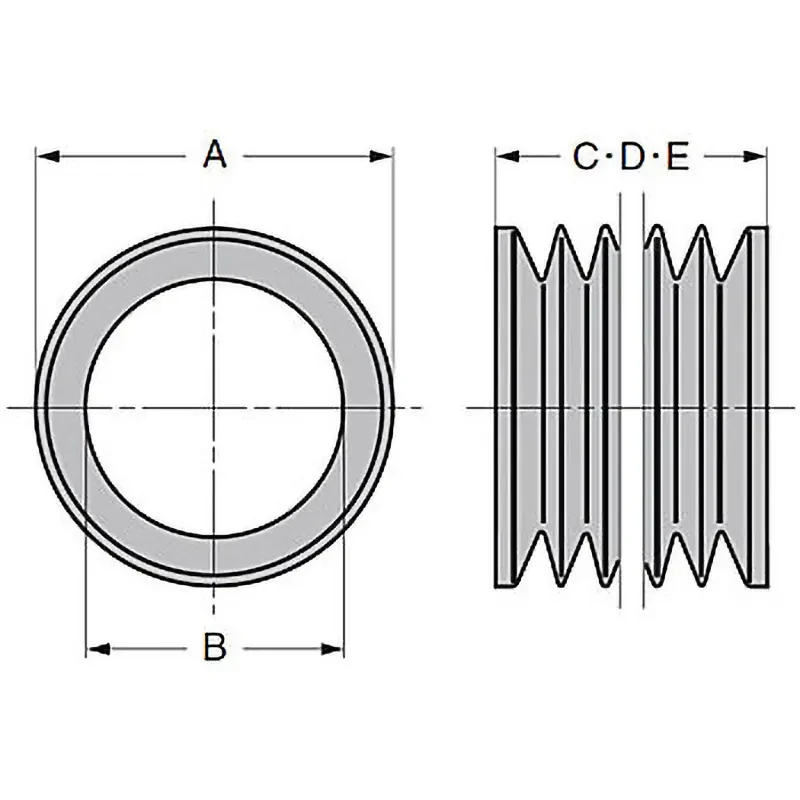

Dimension A (mm): 81
Dimension B (mm): 51
Dimension C (mm): (compressed) 65, (extended) 400
Dimension D (mm): 2-piece connection (compressed) 130, (extended) 800
Dimension E (mm): 3-piece connection (compressed) 200, (extended) 1200
Material: Silicone Rubber (Q)
Color: Orange
Weight (g): 165
RoHS Directive (10 substances compliant): Compliant

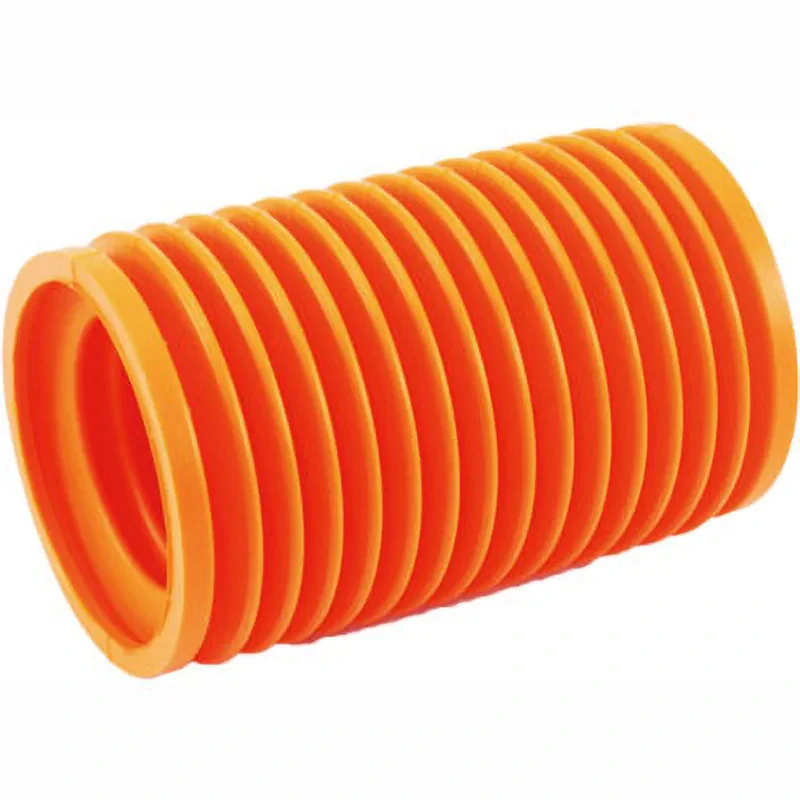

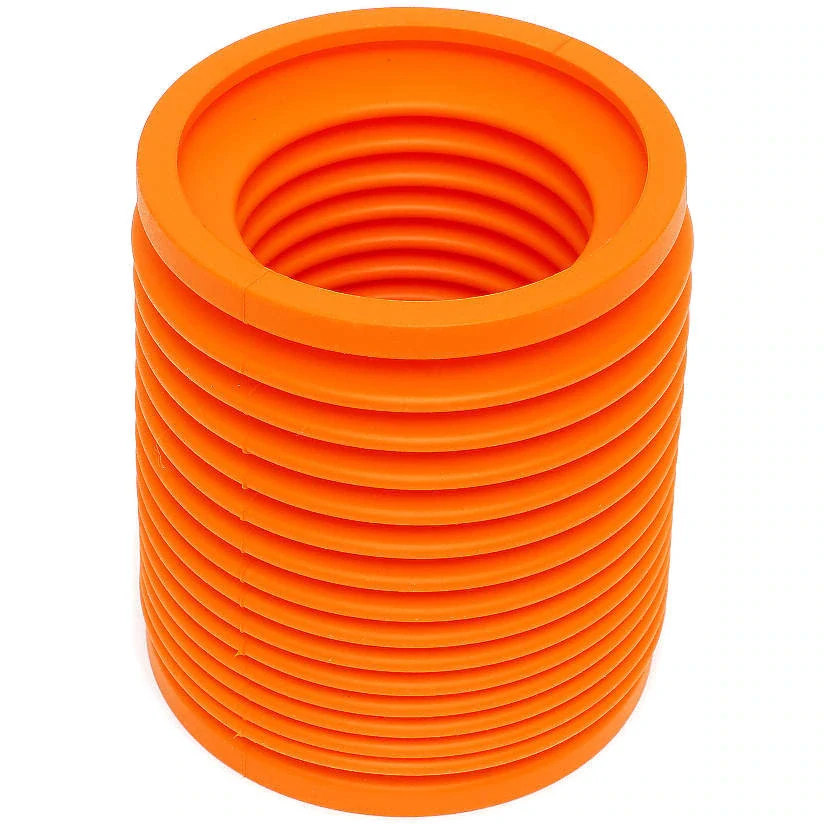

Used for linear motion devices and cable protection, etc.
Made of silicone rubber, offering excellent oil resistance and heat resistance. The heat resistance temperature is approximately 200??C.
Using a dedicated joint, multiple bellows can be connected.
The hole in the center of the cap can be enlarged according to the application (please perform this yourself).
Durability of approximately 200,000 extension cycles (reference value), ensuring long lifespan.
Available in different materials such as ethylene propylene rubber or nitrile rubber upon special order.
