Description
Dimension L1(mm): 31.85;
Dimension L2(mm): 36.85;
Dimension T1(mm): 6.4;
Dimension d(mm): 14.29;
Dimension h(mm): 41.6;
Pitch(mm): 50.8;
Inner width of the link(mm): 31.75;
Material (body): Steel;
Type: Joint link;

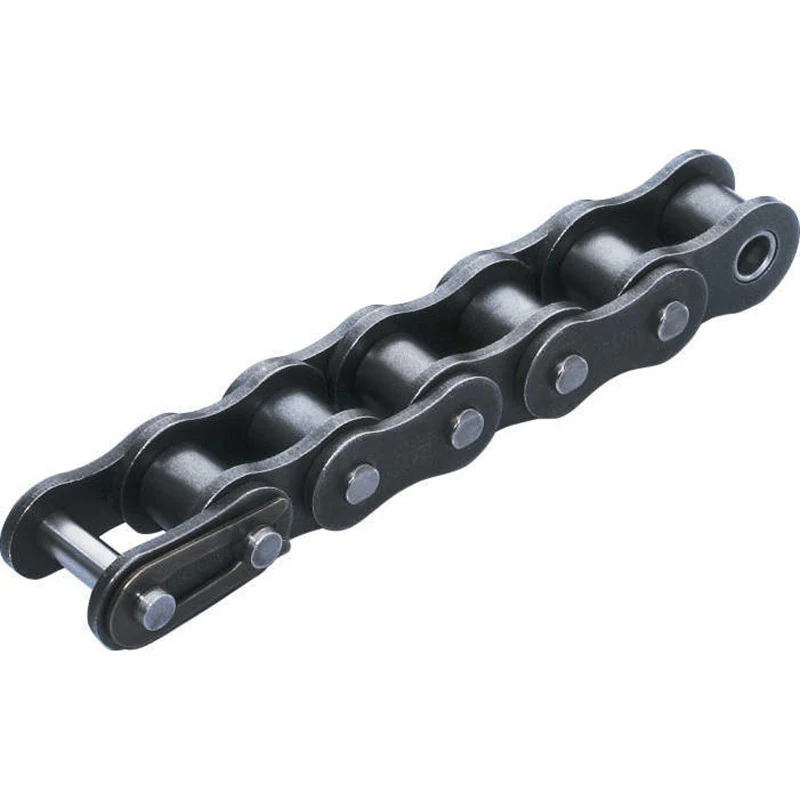

Type: Roller chain;
Number of rows: 1;
Pin type: Split pin type;
Average tensile strength (kN[kgf]): 279(28500);
Maximum allowable tension kN(kgf): 53.0(5400);
Minimum tensile strength (kN[kgf]): 255(26000);
JIS tensile strength (KN): 244.6;
Maximum allowable tension (kN): 53
